Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the RH lower A-pillar trim panel.
  2. Position aside the carpet below the blower motor.
  3. Disconnect the blower motor electrical connector.
  4. Remove the 3 blower motor screws.
  5. Remove the blower motor.
  6. Remove the blower motor wheel.
    1. Remove the blower motor wheel clip.
    2. Remove the blower motor wheel.

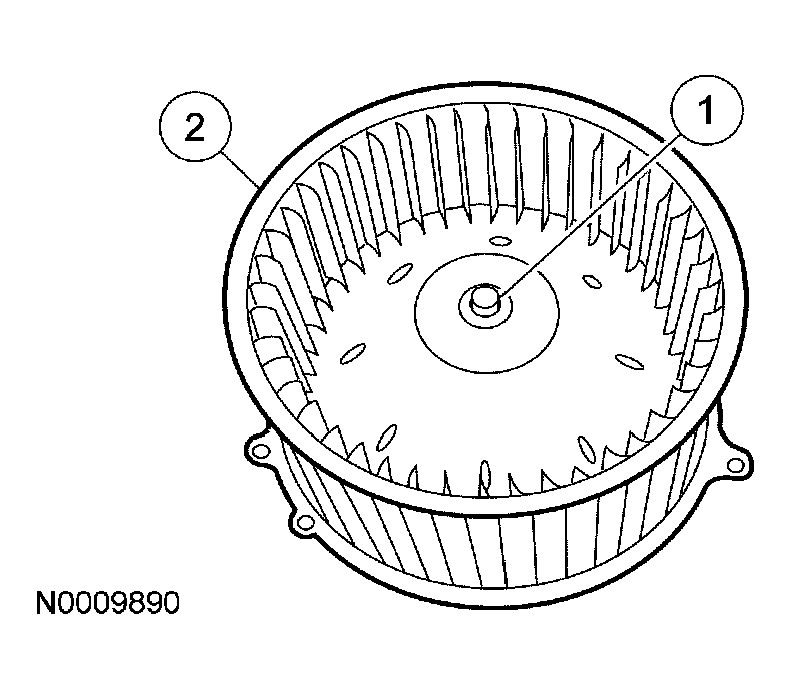

    Fig 1: Removing Blower Motor Wheel
    G03965330Courtesy of FORD MOTOR CO.
  7. To install, reverse the removal procedure.
