Accessory Drive

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

The accessory drive:

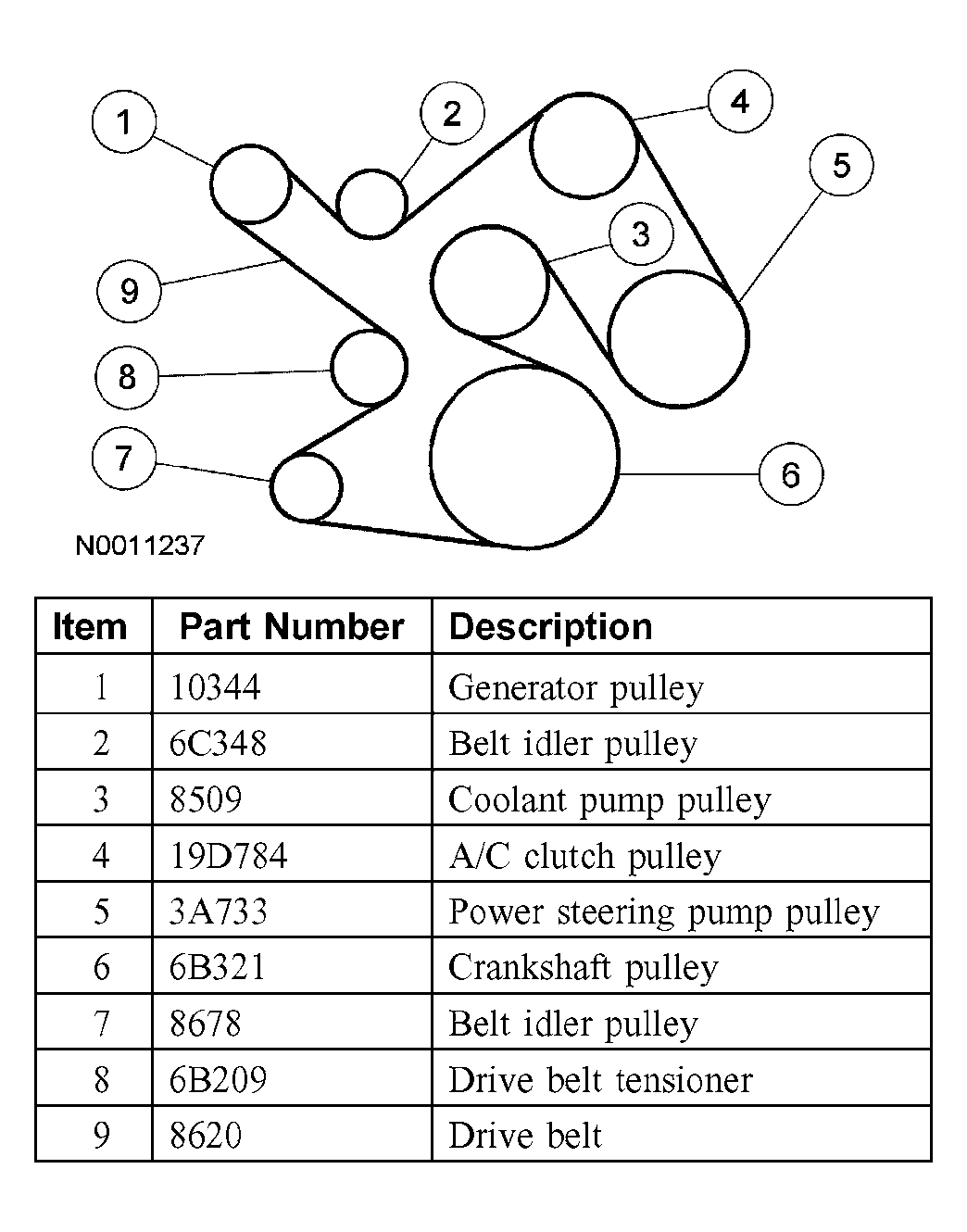

Fig 1: Identifying Accessory Drive Component Locations - 4.2L With A/C
G03982146Courtesy of FORD MOTOR CO.

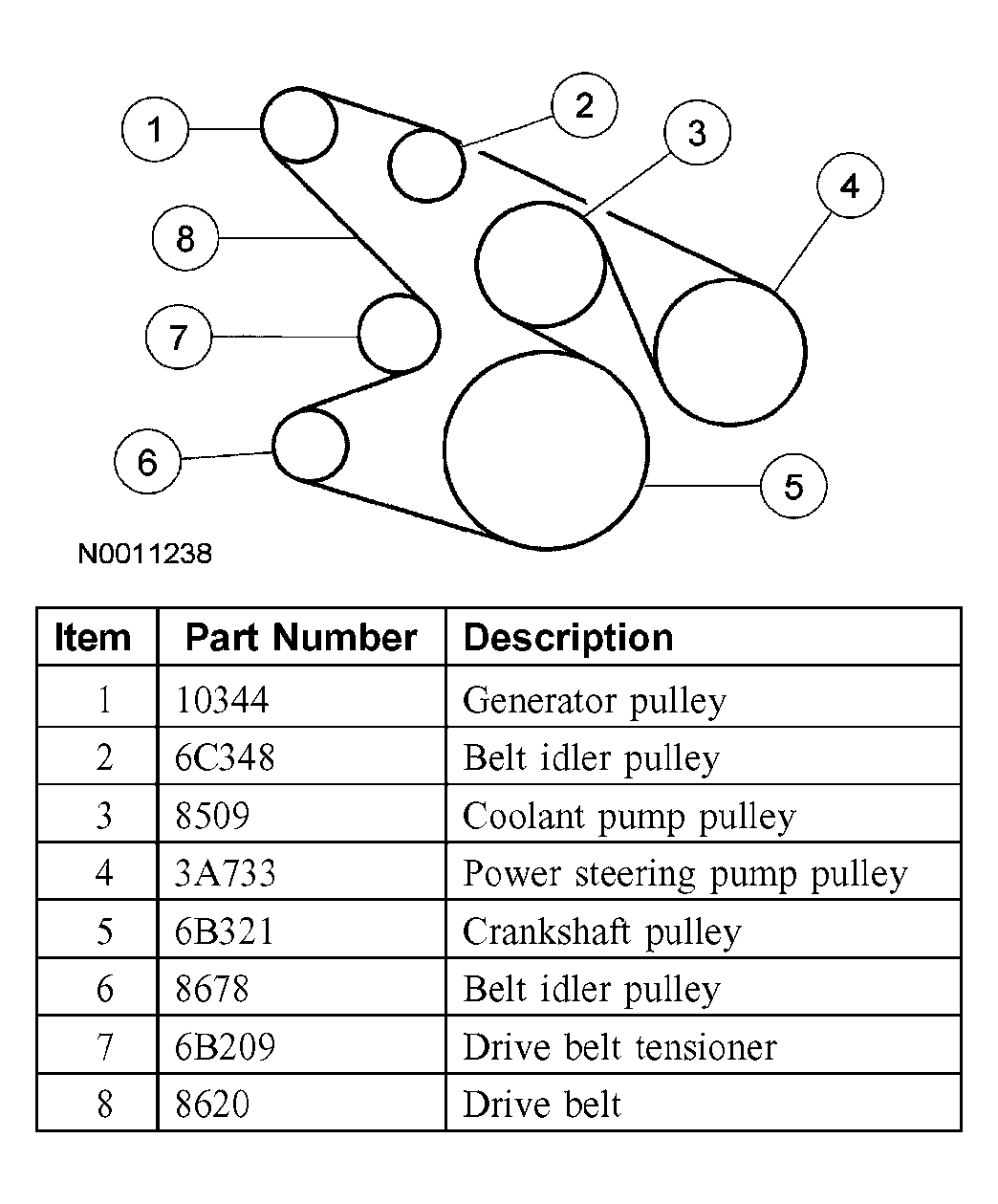

Fig 2: Identifying Accessory Drive Component Locations - 4.2L Without A/C
G03982147Courtesy of FORD MOTOR CO.

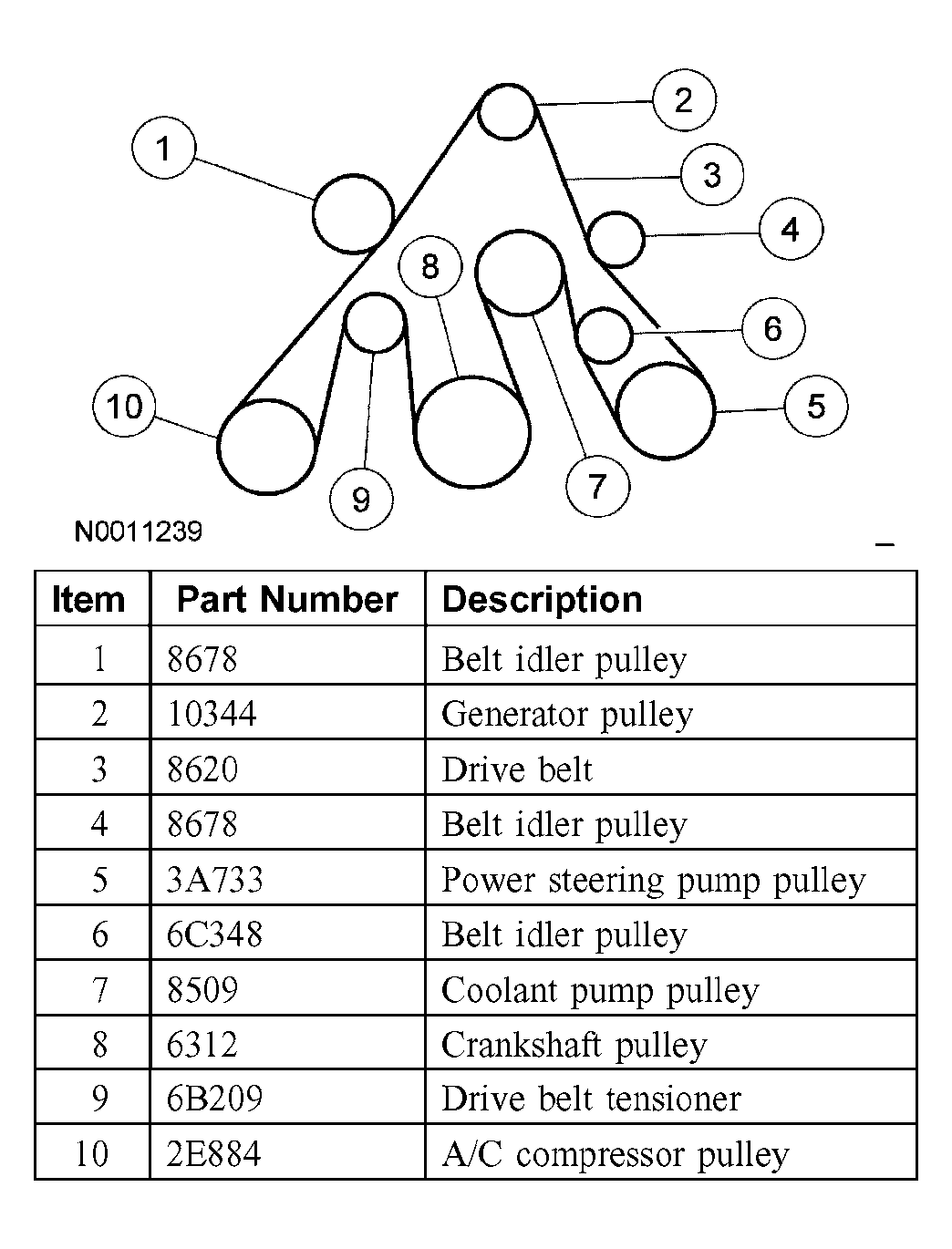

Fig 3: Identifying Accessory Drive Component Locations - 4.6L (2V) And 5.4L (3V)
G03982148Courtesy of FORD MOTOR CO.
