Camshaft End Play - Push Rod Engines

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL CHART

G03878636
 Dial Indicator Gauge with Holding Fixture 100-002 (TOOL-4201-C) or equivalent
  1. Remove the valve tappets.
  2. Use a Dial Indicator Gauge with Holding Fixture to measure camshaft end play.
  3. Position the camshaft to the rear of the cylinder block.
  4. Zero the indicator.
  5. Move the camshaft to the front of the cylinder block. Note and record the camshaft end play.
    • If the camshaft end play exceeds specifications, install a new camshaft thrust plate.

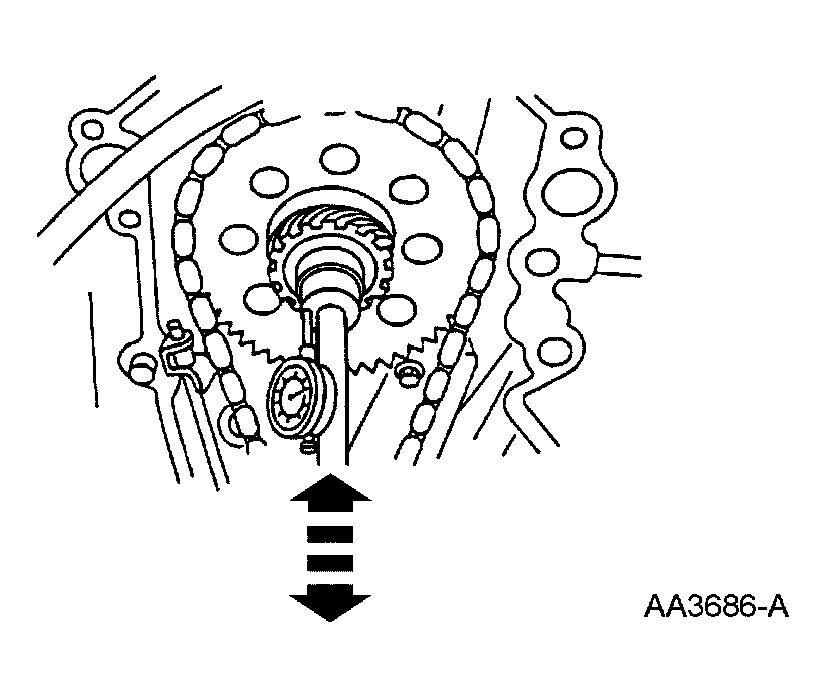

    Fig 1: Measuring Camshaft End Play
    G03954903Courtesy of FORD MOTOR CO.
