WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

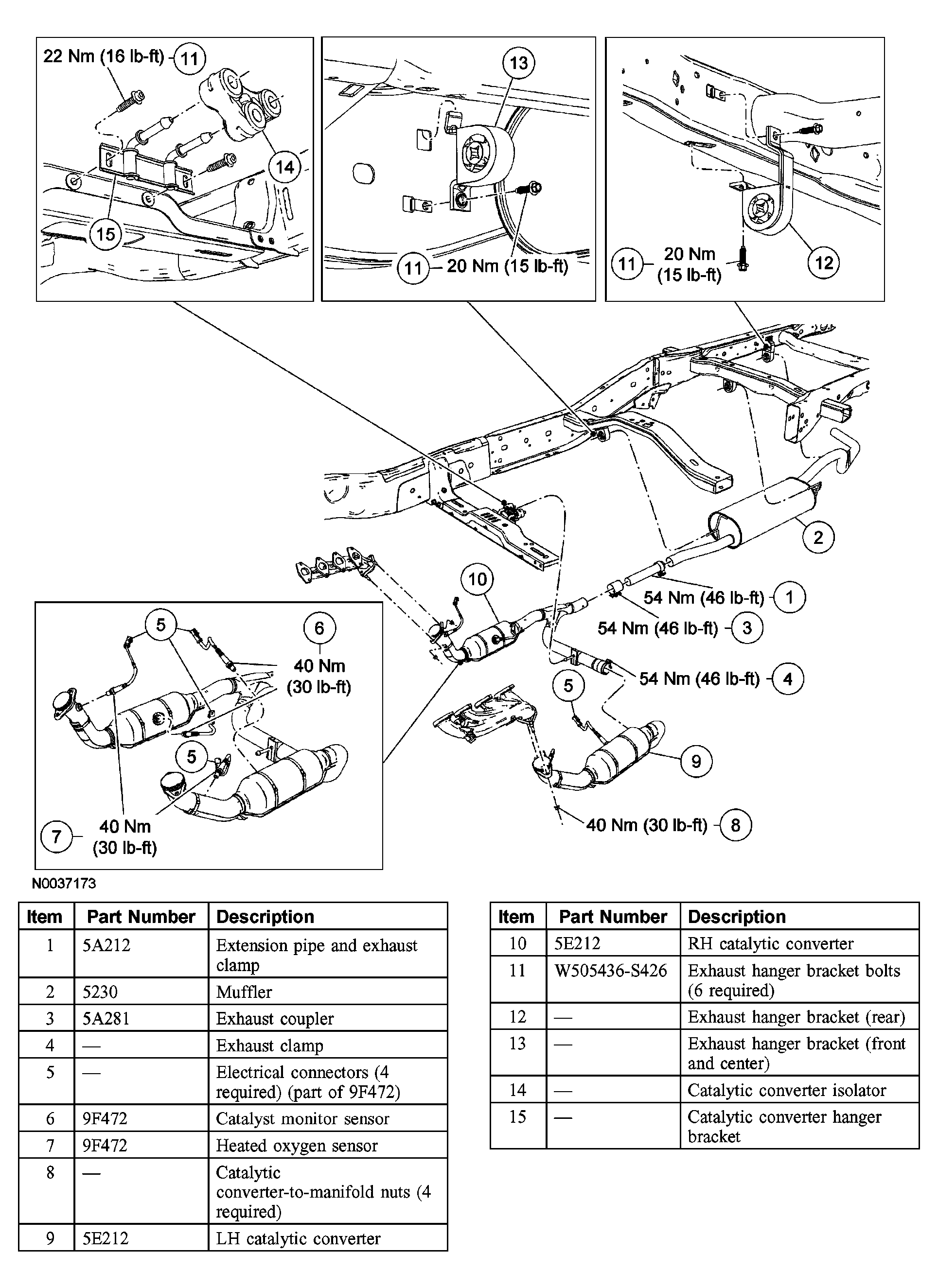

Fig 1: Exploded View Of Exhaust System (4.2L and 4.6L (2V) Engines)
Courtesy of FORD MOTOR CO.

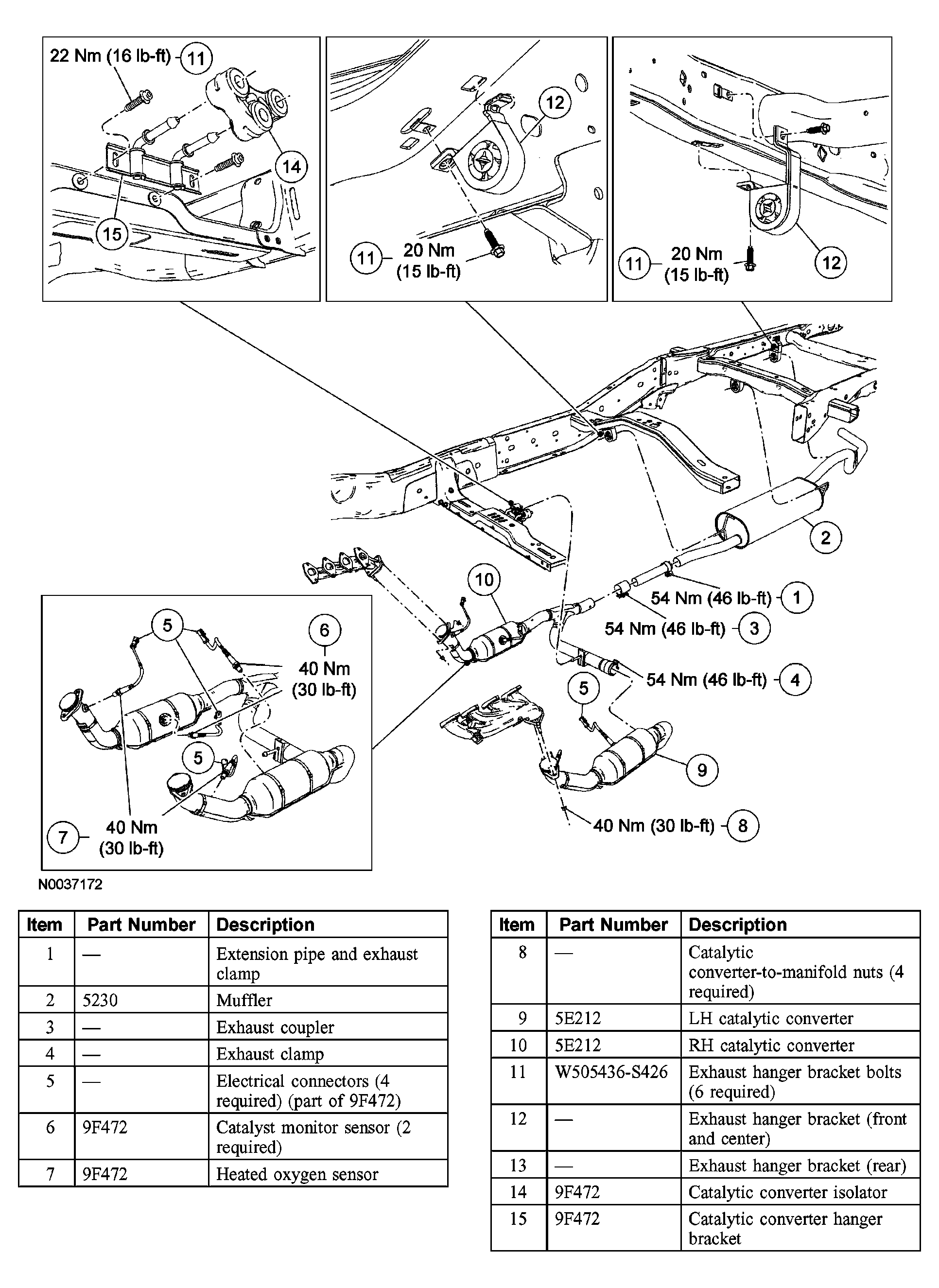

Fig 2: Exploded View Of Exhaust System (5.4L (3V) Engine)
Courtesy of FORD MOTOR CO.
For additional information, refer to the procedures in this article.
