Air Conditioning (A/C) Clutch Air Gap Adjustment

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL CHART

G03910486
 Holding Fixture, Compressor Clutch
412-103 (T95L-19703-AH)
NOTE: The A/C clutch air gap must be measured and adjusted, using the correct method, to ensure correct A/C function. An A/C clutch air gap that is greater than specifications may reduce A/C compressor performance or cause the A/C compressor to be inoperative, and may cause premature wear of the A/C clutch disc and hub and A/C compressor pulley. An A/C clutch air gap that is less than specifications may cause the A/C compressor to operate continuously, or may cause premature wear of the A/C clutch disc and hub and A/C compressor pulley.
NOTE: It is not necessary to recover the refrigerant for A/C clutch air gap adjustment if the A/C compressor is not being removed from the vehicle.
  1. Measure the A/C clutch air gap at three equally spaced places between the A/C clutch disc and the A/C compressor pulley.
    • If the clutch air gap is not within specification, proceed with adjustment.

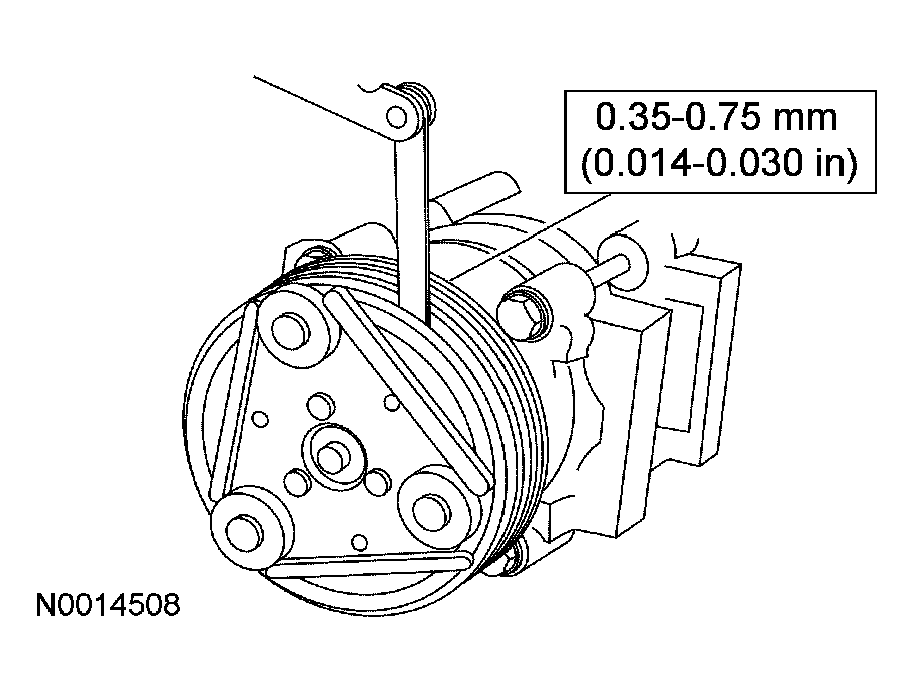

    Fig 1: Measuring A/C Clutch Air Gap At Three Equally Spaced Places Between A/C Clutch Disc And A/C Compressor Pulley
    G03965284Courtesy of FORD MOTOR CO.
  2. Remove the A/C clutch disc and hub bolt.
    1. Hold the A/C clutch disc and hub with the special tool.
    2. Remove A/C clutch disc and hub bolt.
    Fig 2: Using Special Tool To Hold A/C Disc And Hub Assembly
    G03952015Courtesy of FORD MOTOR CO.
  3. Remove the A/C clutch disc and hub.
    • Thread an 8 x 1.25 mm bolt into the A/C clutch disc and hub to force it from the A/C compressor shaft.
    • Lift the A/C clutch disc and hub and the A/C clutch disc and hub spacer from the A/C compressor shaft.
  4. Add or remove A/C clutch disc and hub spacers based on the measurements taken.
  5. Install the A/C clutch disc and hub.
  6. Install the A/C clutch disc and hub bolt.
    1. Hold the A/C clutch disc and hub with the special tool.
    2. Install the A/C clutch disc and hub bolt.
    Fig 3: Installing A/C Clutch Disc And Hub Bolt
    G03944082Courtesy of FORD MOTOR CO.
  7. Measure the A/C clutch air gap at three equally spaced positions between the A/C clutch disc and the A/C compressor pulley.
    • Repeat adjustment procedure if needed.
    Fig 4: Measuring A/C Clutch Air Gap At Three Equally Spaced Positions Between A/C Clutch Disc And A/C Compressor Pulley
    G03965284Courtesy of FORD MOTOR CO.
