A/C Cycling Switch C130

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

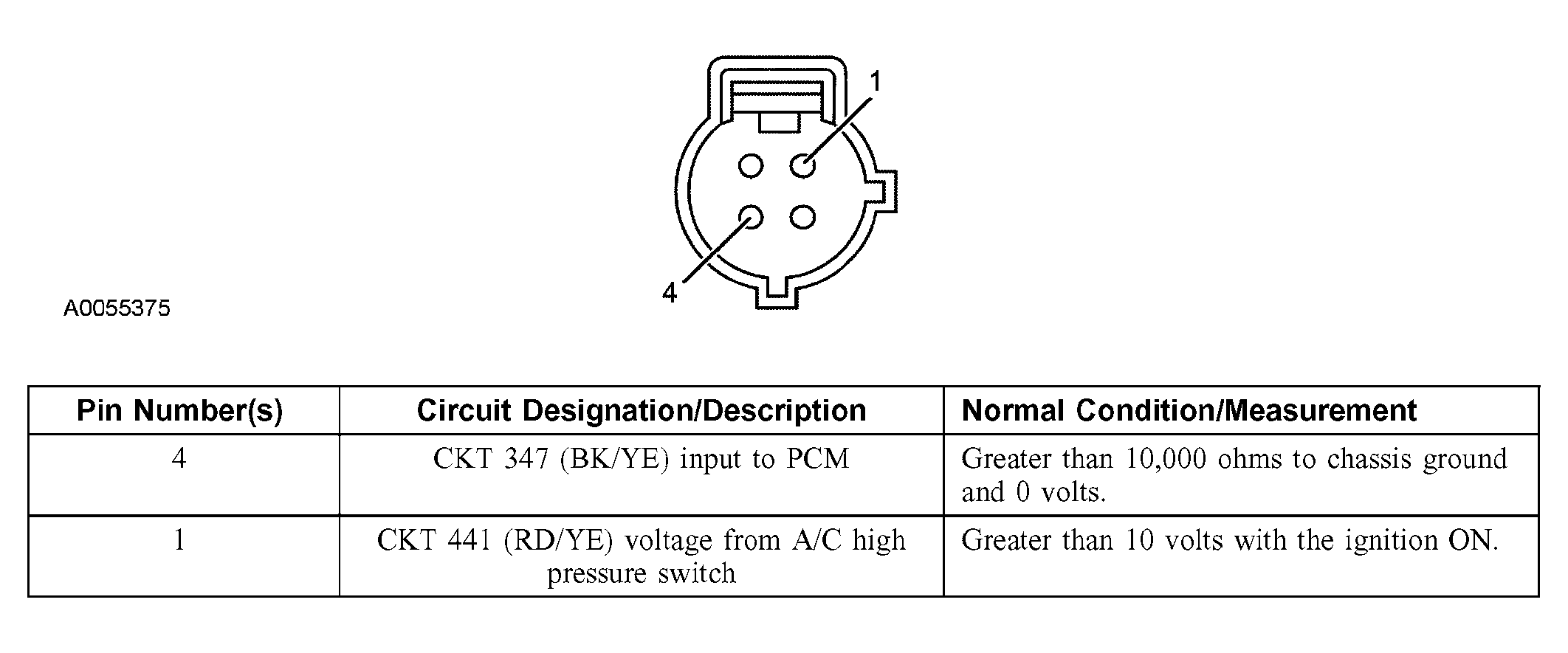

Fig 1: Identifying A/C Cycling Switch C130 Pinouts
G03965142Courtesy of FORD MOTOR CO.
