Valve Cover - RH: Notes

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Valve Cover - RH (1 Of 2)
G03961996Courtesy of FORD MOTOR CO.

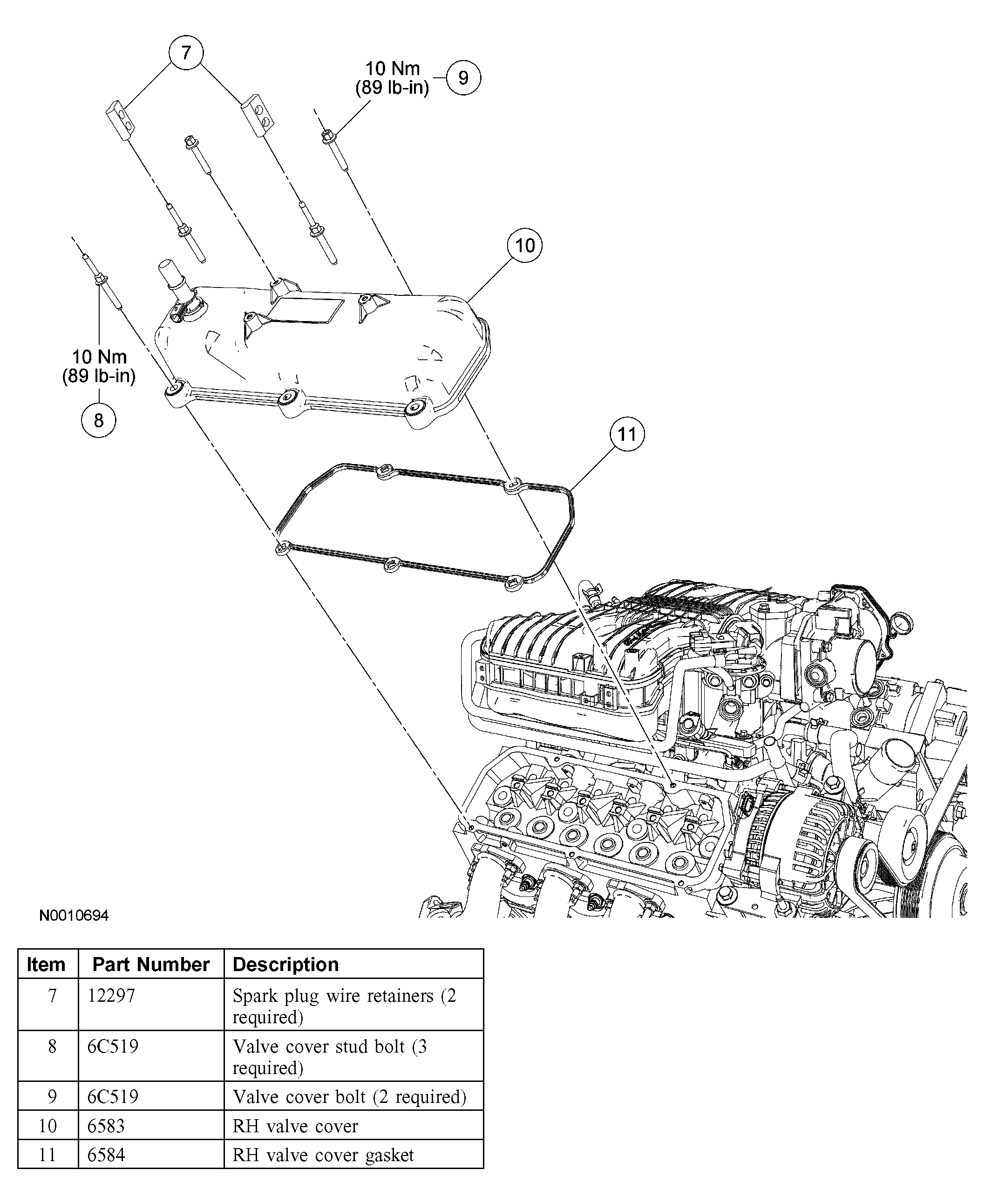

Fig 2: Identifying Valve Cover - RH (2 Of 2)
G03961997Courtesy of FORD MOTOR CO.
