WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL CHART
Item
Specification
Silicone Brake Caliper Grease and Dielectric Compound XG-3-A
ESE-M1C171-A

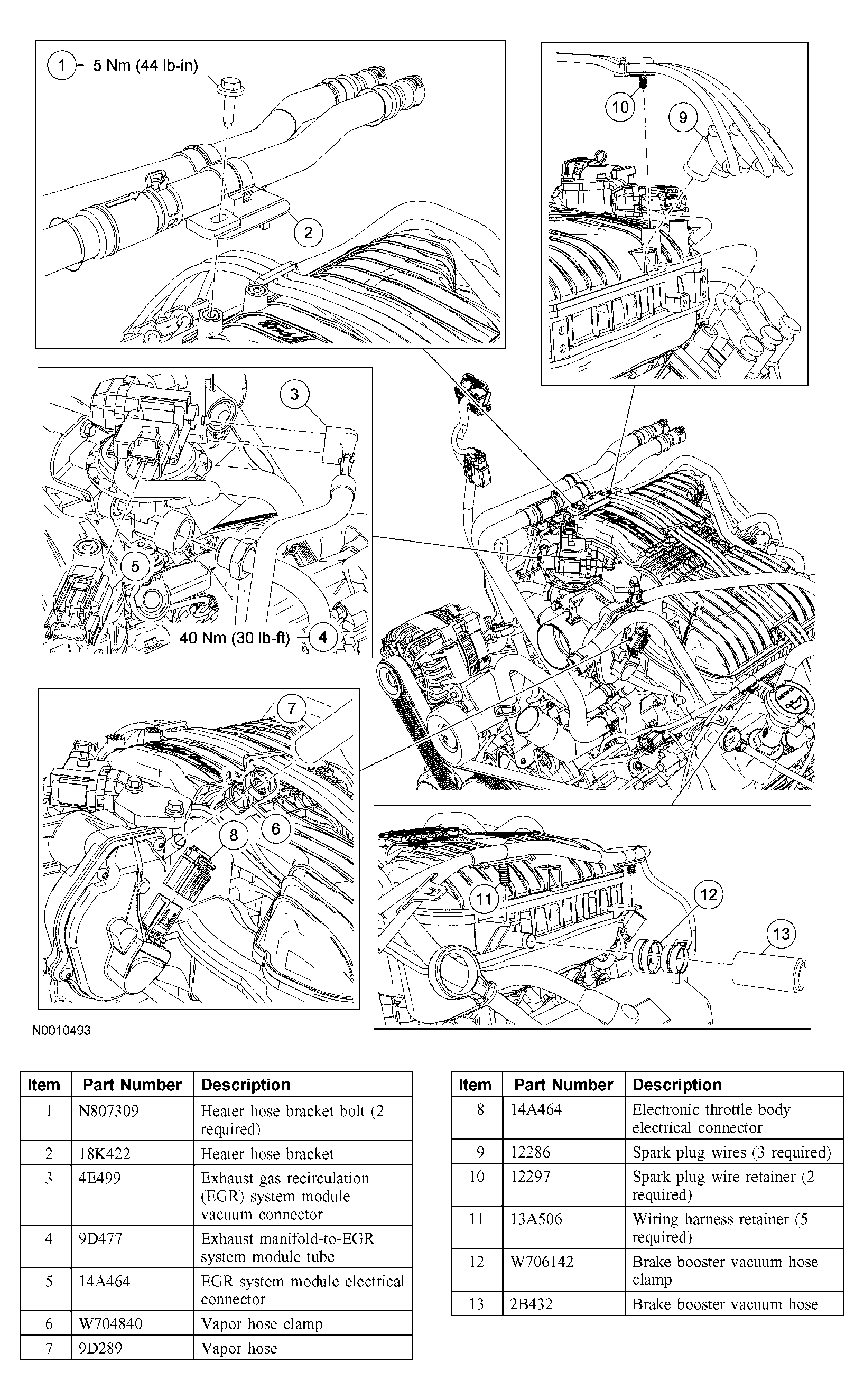

Fig 1: Identifying Components Of Upper Intake Manifold (Items 1-13)
Courtesy of FORD MOTOR CO.

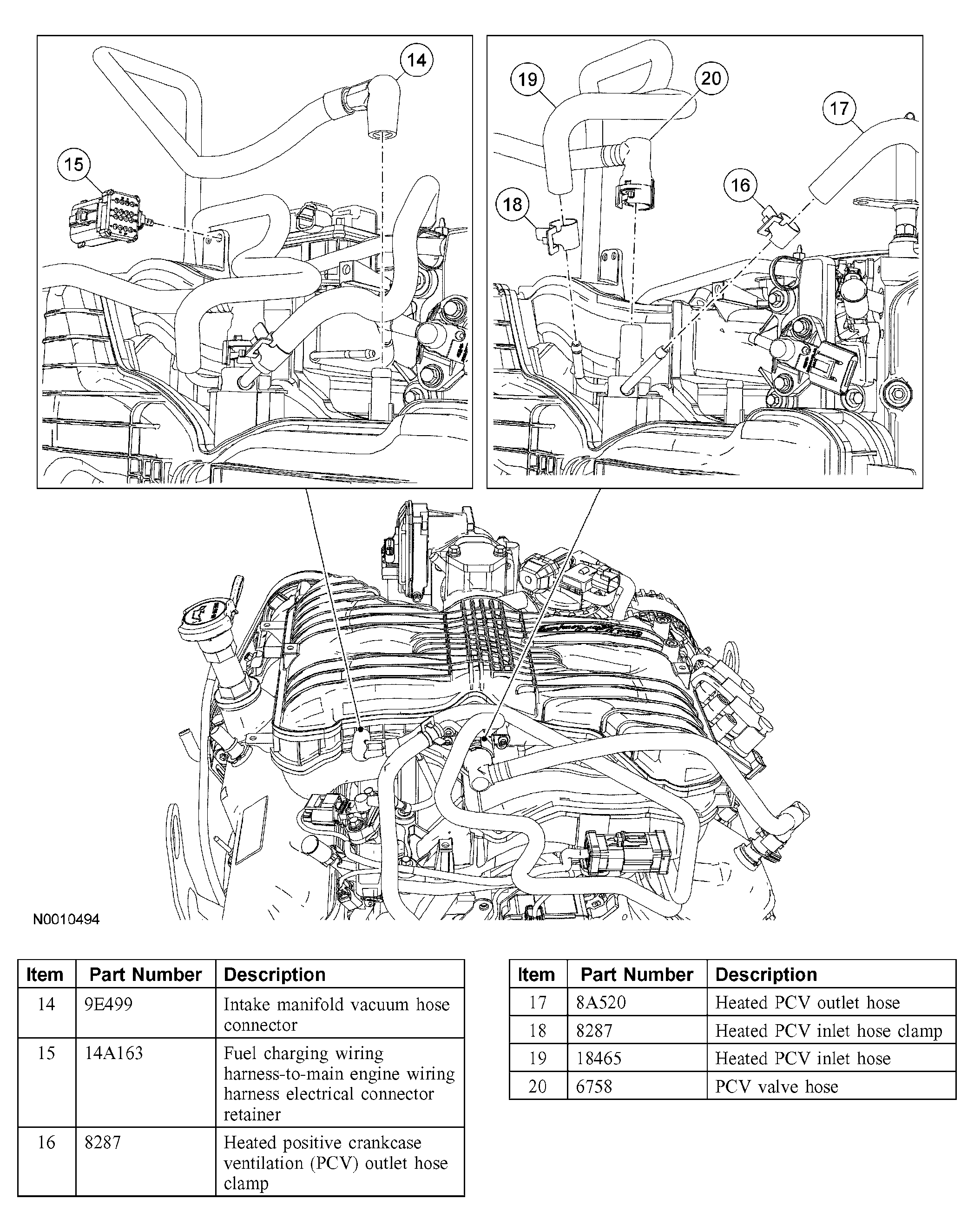

Fig 2: Identifying Components Of Upper Intake Manifold (Items 14-20)
Courtesy of FORD MOTOR CO.

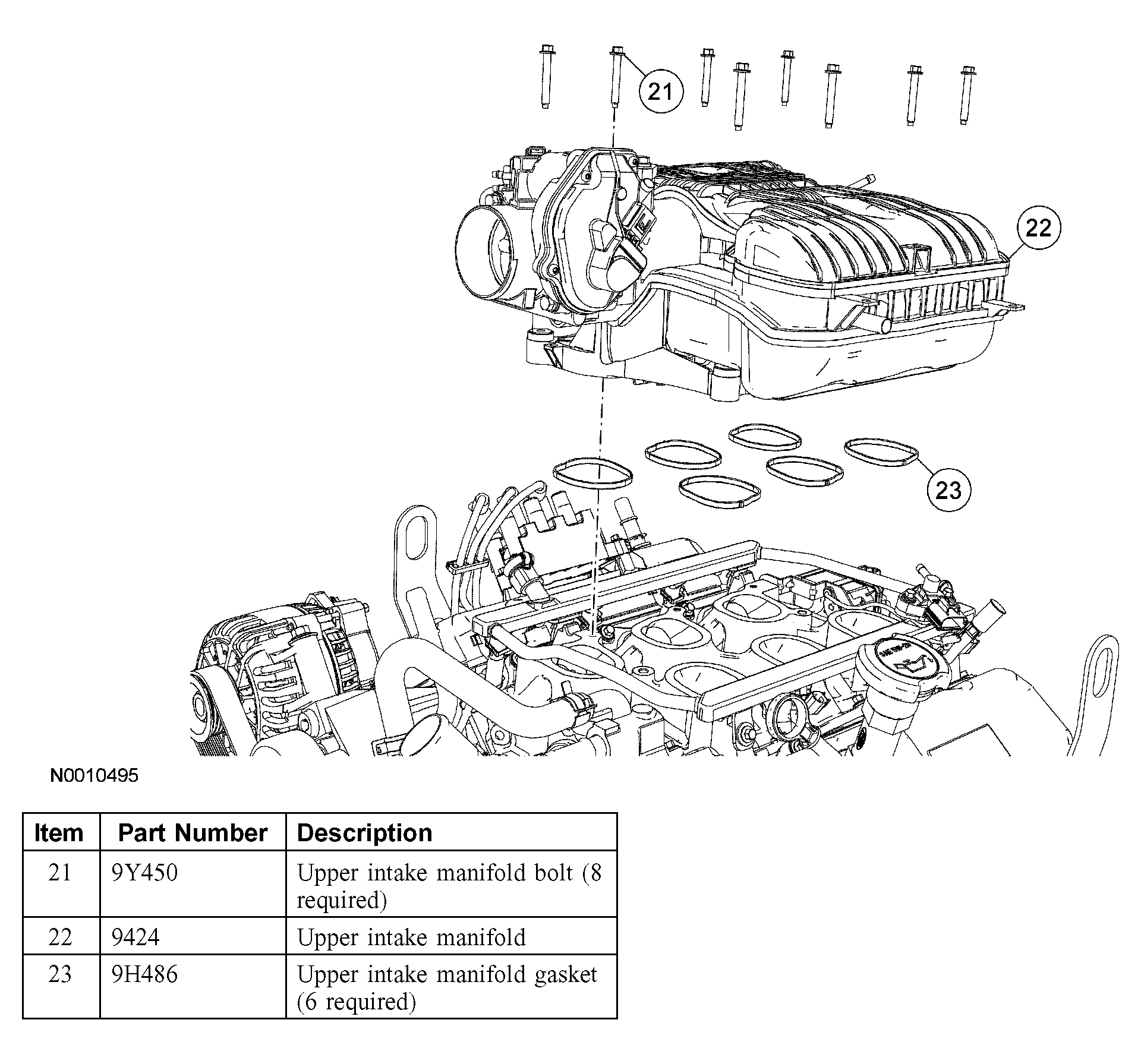

Fig 3: Identifying Components Of Upper Intake Manifold (Items 21-23)
