Timing Drive Components: Installation

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the timing chain tensioner and the bolts.
    • Tighten to 12 Nm (9 lb-ft).
    Fig 1: Installing Timing Chain Tensioner And Bolts
    G03962032Courtesy of FORD MOTOR CO.
  2. If necessary, retract the tensioner pad retracting mechanism and insert a retaining pin.
    Fig 2: Retracting Tensioner Pad Retracting Mechanism And Inserting Retaining Pin
    G03962034Courtesy of FORD MOTOR CO.
  3. Rotate the crankshaft so the No. 1 piston is at top dead center (TDC) and the key is at the 12 o'clock position.

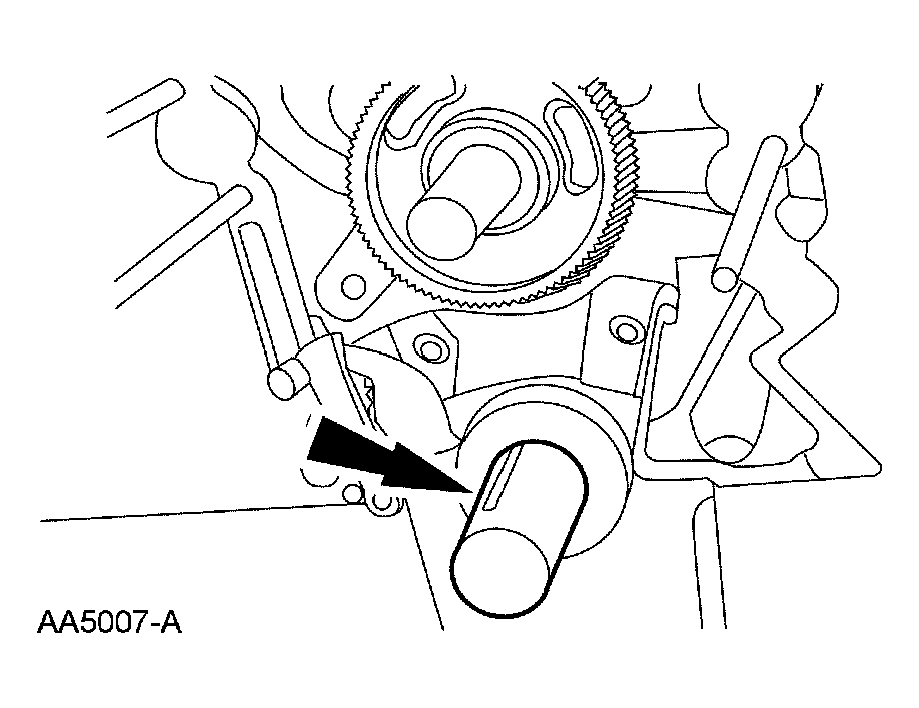

    Fig 3: Rotating Crankshaft So No. 1 Piston Is At Top Dead Center (TDC) And Key Is At 12 O'clock Position
    G03962035Courtesy of FORD MOTOR CO.
  4. Turn the camshaft sprocket so that the timing mark is at the 12 o'clock position and is lined up with the timing mark on the balance shaft at the 6 o'clock position.
    Fig 4: Aligning Timing Mark
    G03962036Courtesy of FORD MOTOR CO.
  5. Install the timing chain, the camshaft sprocket and the crankshaft sprocket.
    Fig 5: Installing Timing Chain, Camshaft Sprocket And Crankshaft Sprocket
    G03962031Courtesy of FORD MOTOR CO.
  6. Make sure that the timing marks and the keyways are aligned.
    Fig 6: Identifying Timing Marks And Keyways Are Aligned
    G04003974Courtesy of FORD MOTOR CO.
  7. Remove the retaining pin.
    Fig 7: Removing Retaining Pin
    G03962030Courtesy of FORD MOTOR CO.
  8. Install the camshaft synchronizer drive gear and the bolt.
    • Tighten to 45 Nm (33 lb-ft).
    Fig 8: Installing Camshaft Synchronizer Drive Gear And Bolt
    G03962040Courtesy of FORD MOTOR CO.
  9. Install the engine front cover. For additional information, refer to ENGINE FRONT COVER .
