Oil Pump: Removal

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

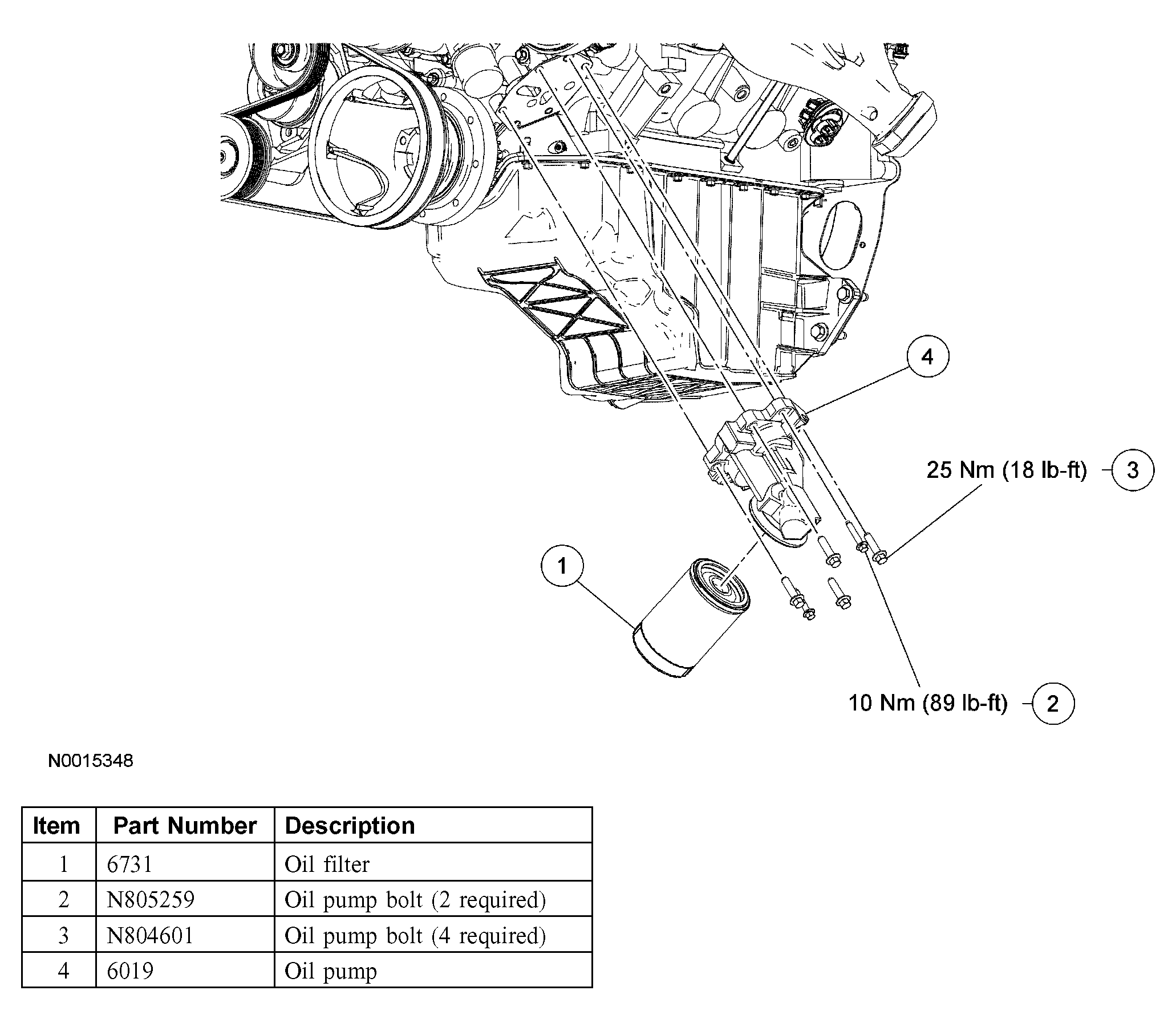

Fig 1: Identifying Oil Pump
G03962065Courtesy of FORD MOTOR CO.
CAUTION: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Drain the engine oil. Install the drain plug when finished.
    • Tighten to 23 Nm (17 lb-ft).
  3. Remove and discard the oil filter.
  4. Remove the 6 bolts and the oil pump.
    5. CAUTION: Do not reuse the oil pump seal. A new service seal must be installed.

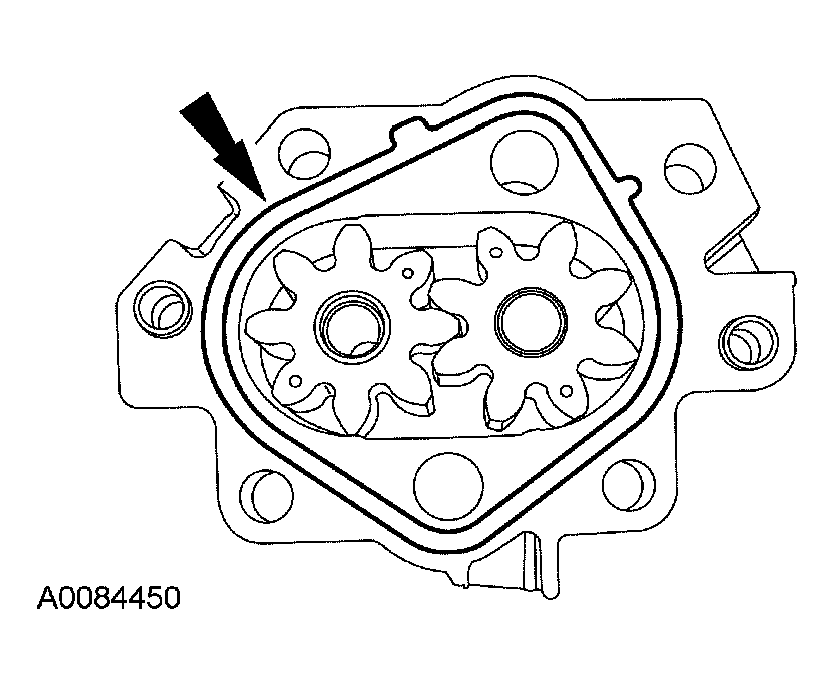

    Fig 2: Removing Oil Pump Seal
    G03962066Courtesy of FORD MOTOR CO.
  5. Remove and discard the oil pump seal.
  6. Remove and inspect the oil pump drive gear, the driven gear and the cover. Install new components if necessary.
    Fig 3: Removing Oil Pump Drive Gear, Driven Gear And Cover
    G03962067Courtesy of FORD MOTOR CO.
  7. Inspect the face of the oil pump for flatness.
    Fig 4: Inspecting Face Of Oil Pump For Flatness
    G03962068Courtesy of FORD MOTOR CO.
