Oil Pump: Installation

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new service oil pump seal on the oil pump.
    2. NOTE: Lubricate the parts with clean engine oil before assembly.

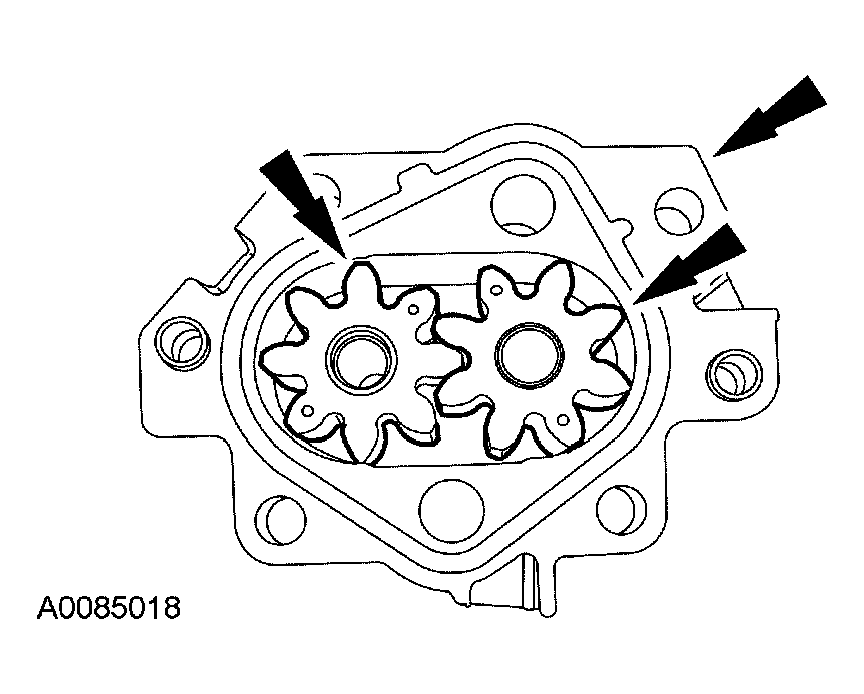

    Fig 1: Installing Oil Pump Drive Gear, Driven Gear And Cover
    G03962067Courtesy of FORD MOTOR CO.
  2. Install the oil pump drive gear, the driven gear and the cover.
  3. Position the oil pump and install the bolts. Tighten the bolts as shown.
    1. Tighten to 10 Nm (89 lb-in).
    2. Tighten to 25 Nm (18 lb-ft).

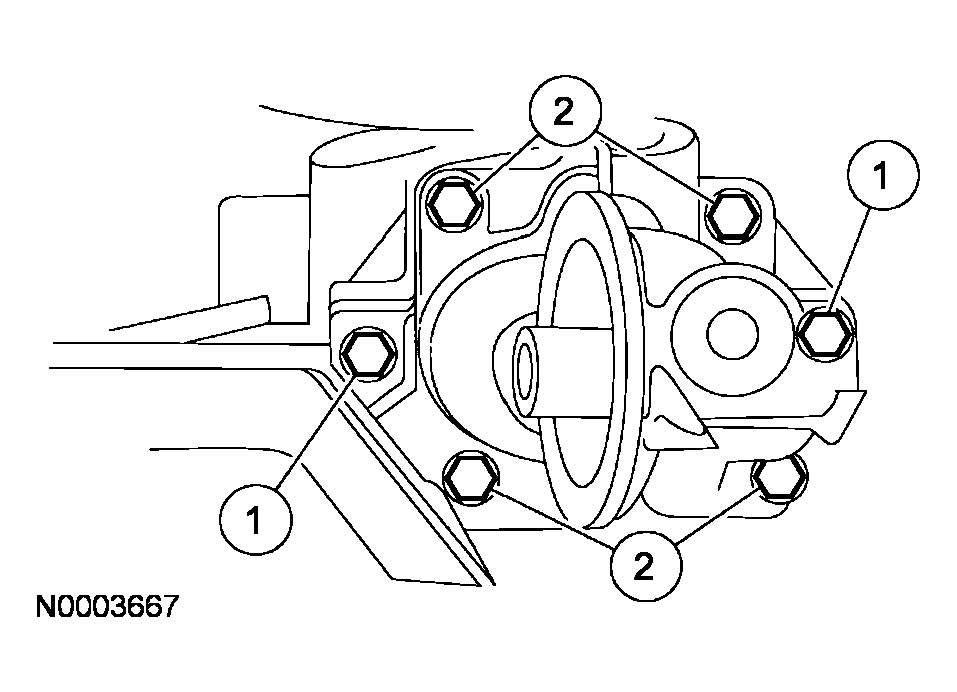

    Fig 2: Positioning Oil Pump And Installing Bolts
    G04004009Courtesy of FORD MOTOR CO.
  4. Install a new oil filter.
  5. Fill the engine with clean engine oil.
