Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

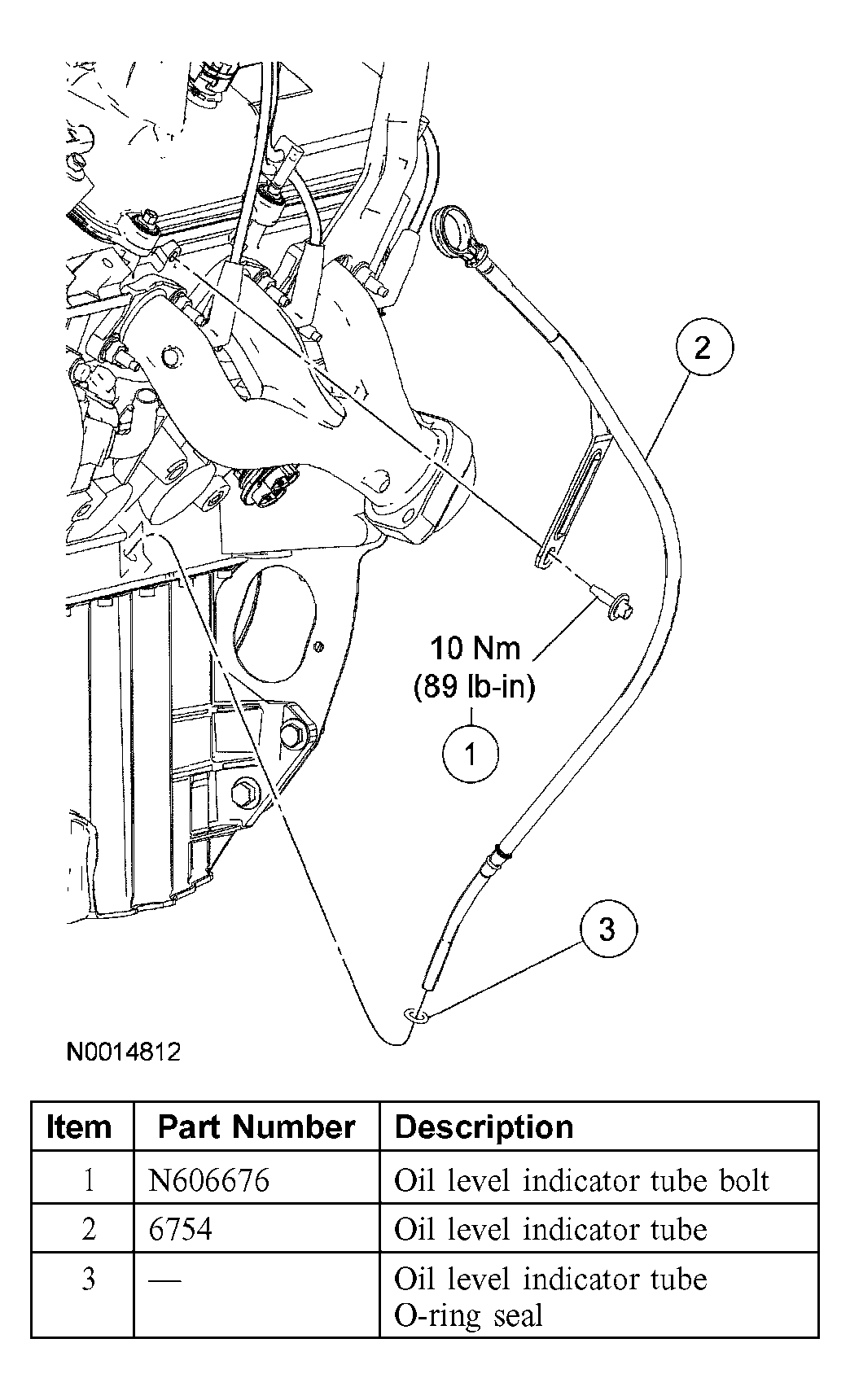

Fig 1: Identifying Oil Level Indicator And Tube
G03962061Courtesy of FORD MOTOR CO.
  1. Remove the bolt and the oil level indicator and tube assembly.
    • To install, tighten to 10 Nm (89 lb-in).
  2. Remove and discard the O-ring seal.
    • To install, apply clean engine oil to the new O-ring seal.
  3. To install, reverse the removal procedure.
