Lower Intake Manifold: Notes

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL CHART

Item Specification
Silicone Gasket Remover ZC-30 -
Motorcraft Metal Surface Prep ZC-31 -
Silicone Gasket and Sealant TA-30 WSE-M4G323-A4

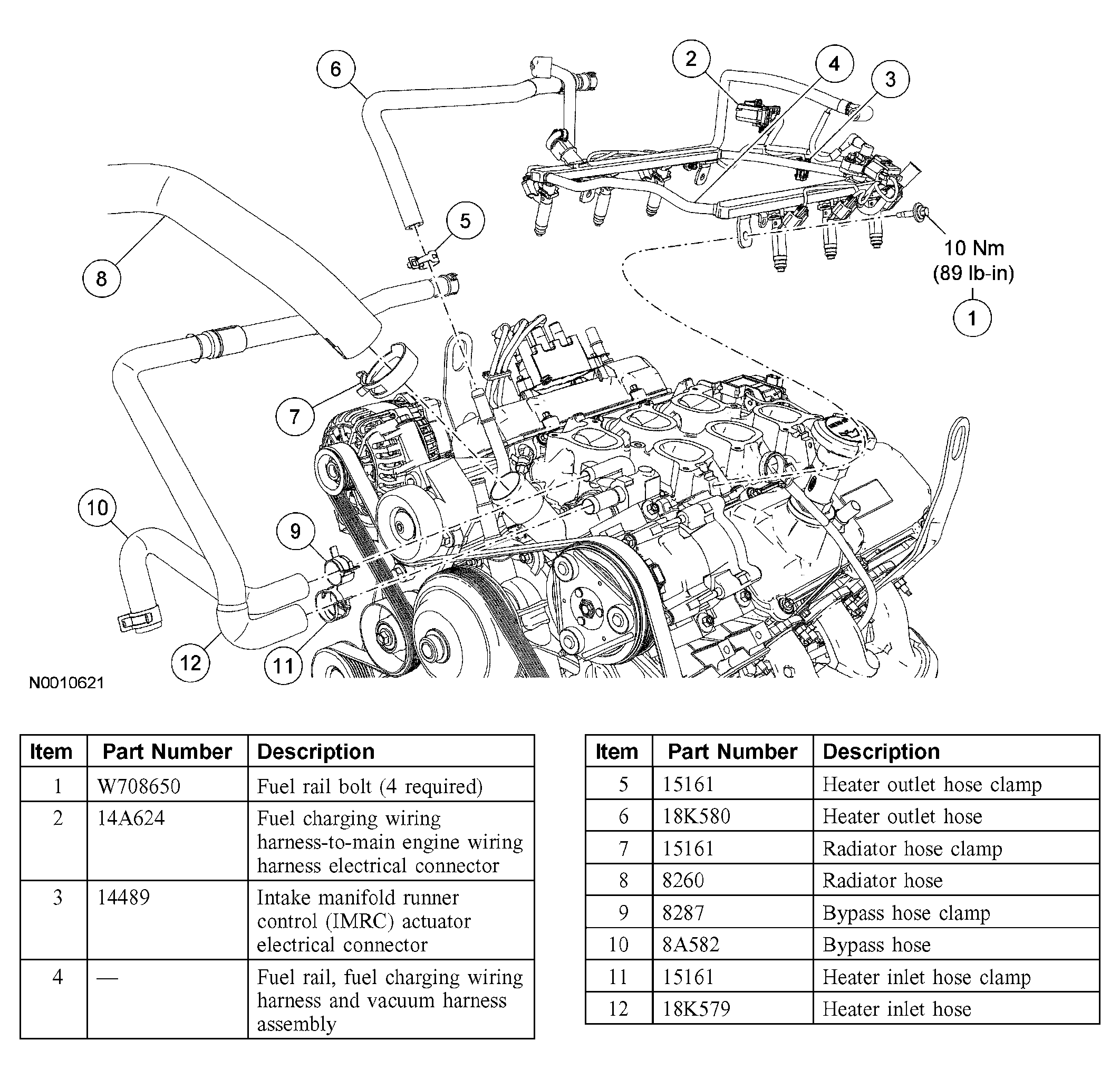

Fig 1: Identifying Components Of Lower Intake Manifold (Items 1-12)
G03961986Courtesy of FORD MOTOR CO.

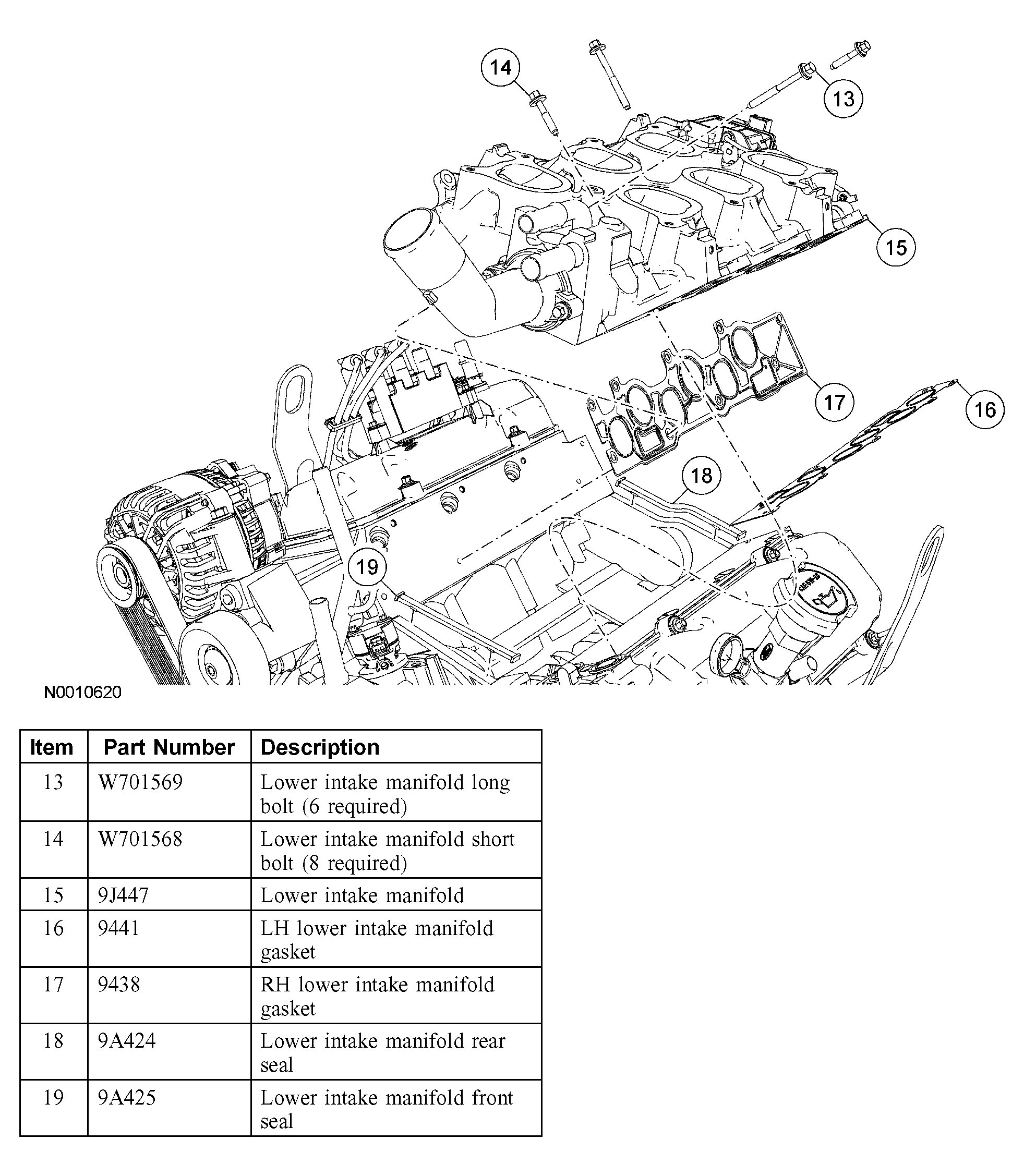

Fig 2: Identifying Components Of Lower Intake Manifold (Items 13-19)
G03961987Courtesy of FORD MOTOR CO.
