Engine Support Insulators

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL CHART

G03962082
3-Bar Engine Support 303-F073
G03898369
Lifting Bracket, Engine 303-050 (T70P-6000)
MATERIAL CHART

Item Specification
Threadlock 262 TA-26 WSK-M2G351-A6

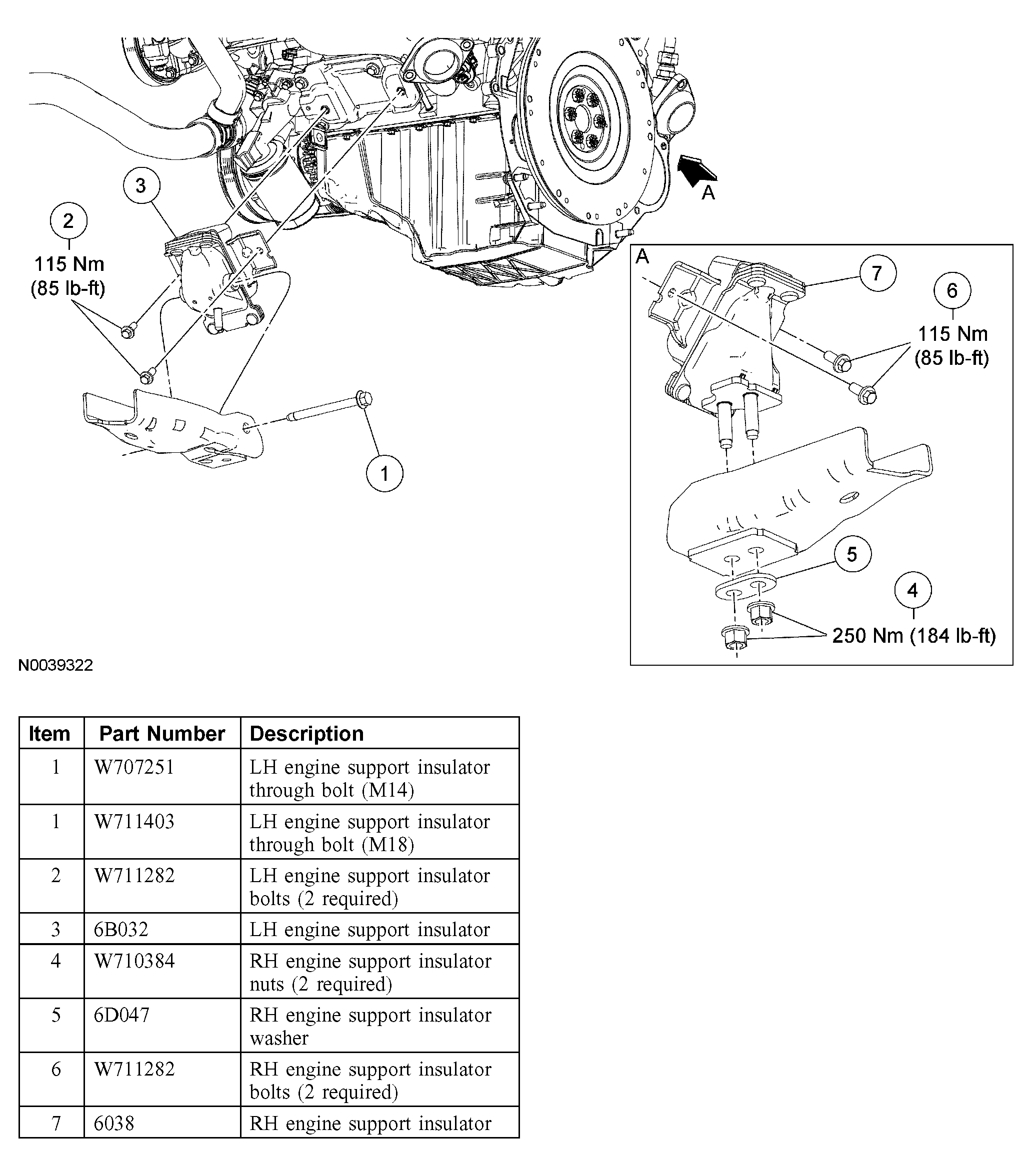

Fig 1: Identifying Engine Support Insulators
G03962084Courtesy of FORD MOTOR CO.

    Both sides

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. NOTE: Early build vehicles are equipped with an M14 through bolt. Late build vehicles are equipped with an Ml8 bolt.
  3. Remove the LH engine support insulator through bolt.
    • To install, tighten early build (Ml4) bolts to 220 Nm (162 lb-ft).
    • To install, tighten late build (Ml8) bolts to 350 Nm (258 lb-ft).
  4. CAUTION: Make sure the RH engine support insulator mating surfaces and the washer mating surface are free of foreign material and corrosion before installation. Install a new washer.
  5. Remove the RH engine support insulator nuts and washer.
    • To install, tighten to 250 Nm (184 lb-ft).
  6. Remove the A/C compressor and power steering pump bracket brace upper nut and install the special tool.
    • To install, tighten to 25 Nm (18 lb-ft).

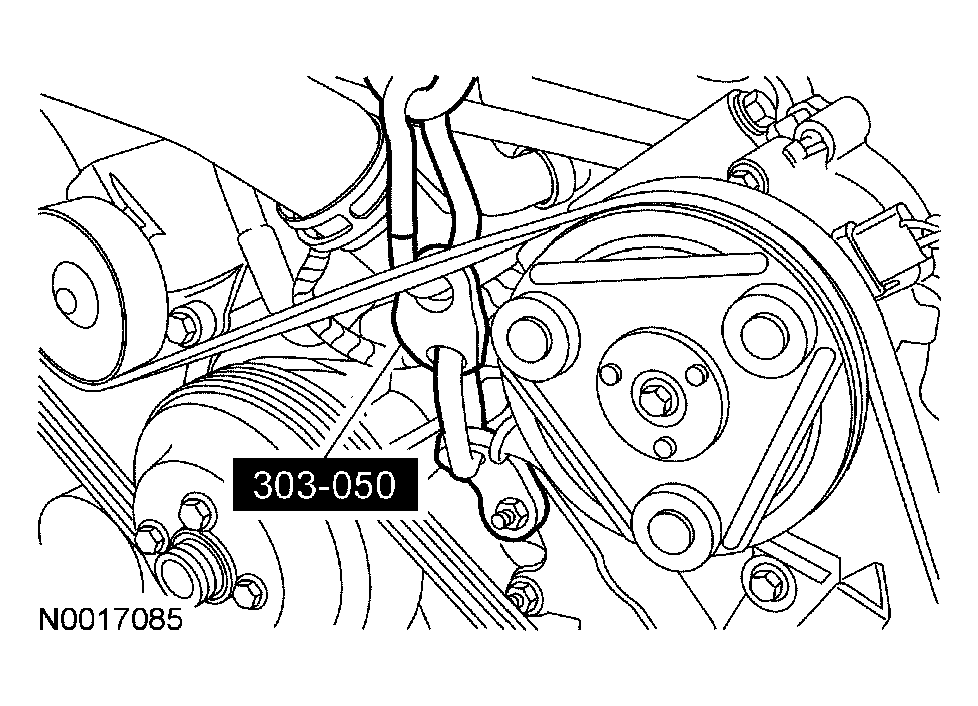

    Fig 2: Removing A/C Compressor And Power Steering Pump Bracket Brace Upper Nut And Installing Special Tool
    G03962085Courtesy of FORD MOTOR CO.
  7. NOTE: Use a 10 mm (0.39 in) spring link to connect the Engine Lifting Bracket to the 3-Bar Engine Support.

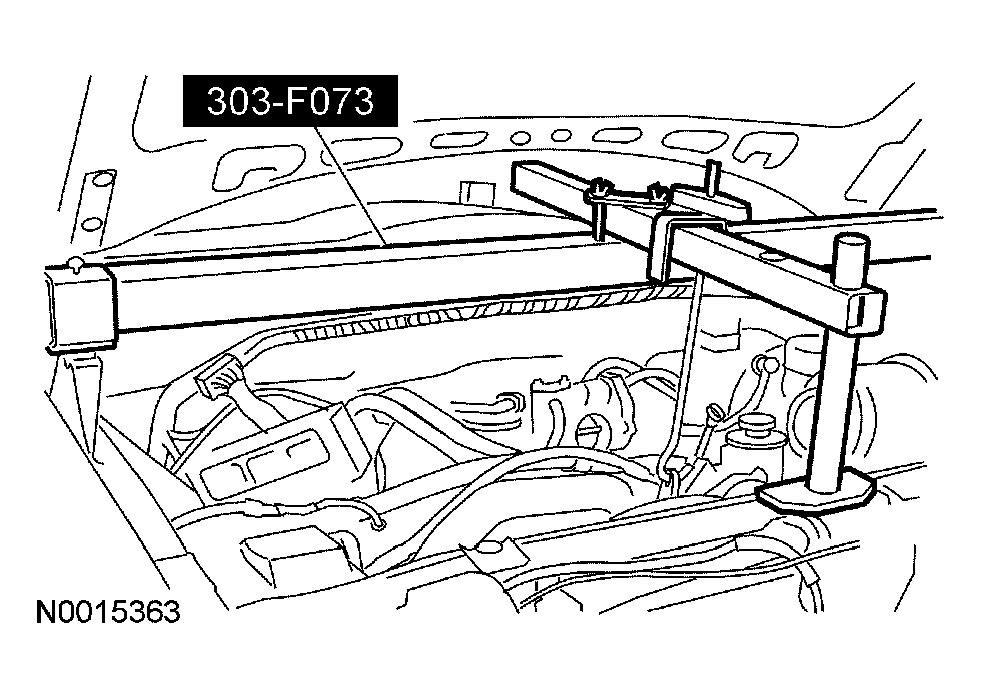

    Fig 3: Installing Special Tool And Lift Engine Approximately 75 mm (3 in)
    G03962086Courtesy of FORD MOTOR CO.
  8. Install the special tool and lift the engine approximately 75 mm (3 in).
  9. RH side

    CAUTION: Clean the engine support insulator-to-bracket mating surfaces and the bolt holes in the bracket of any dirt or foreign material prior to installation.
  10. Remove the bolts and the RH engine support insulator.
    • Apply Threadlock 262 to the bolt threads prior to installation.
    • To install, tighten to 115 Nm (85 lb-ft).
  11. LH side

    CAUTION: Clean the engine support insulator-to-bracket mating surfaces and the bolt holes in the bracket of any dirt or foreign material prior to installation.
  12. Remove the bolts and the LH engine support insulator.
    • Apply Threadlock 262 to the bolt threads prior to installation.
    • To install, tighten to 115 Nm (85 lb-ft).
  13. Both sides

  14. To install, reverse the removal procedure.
