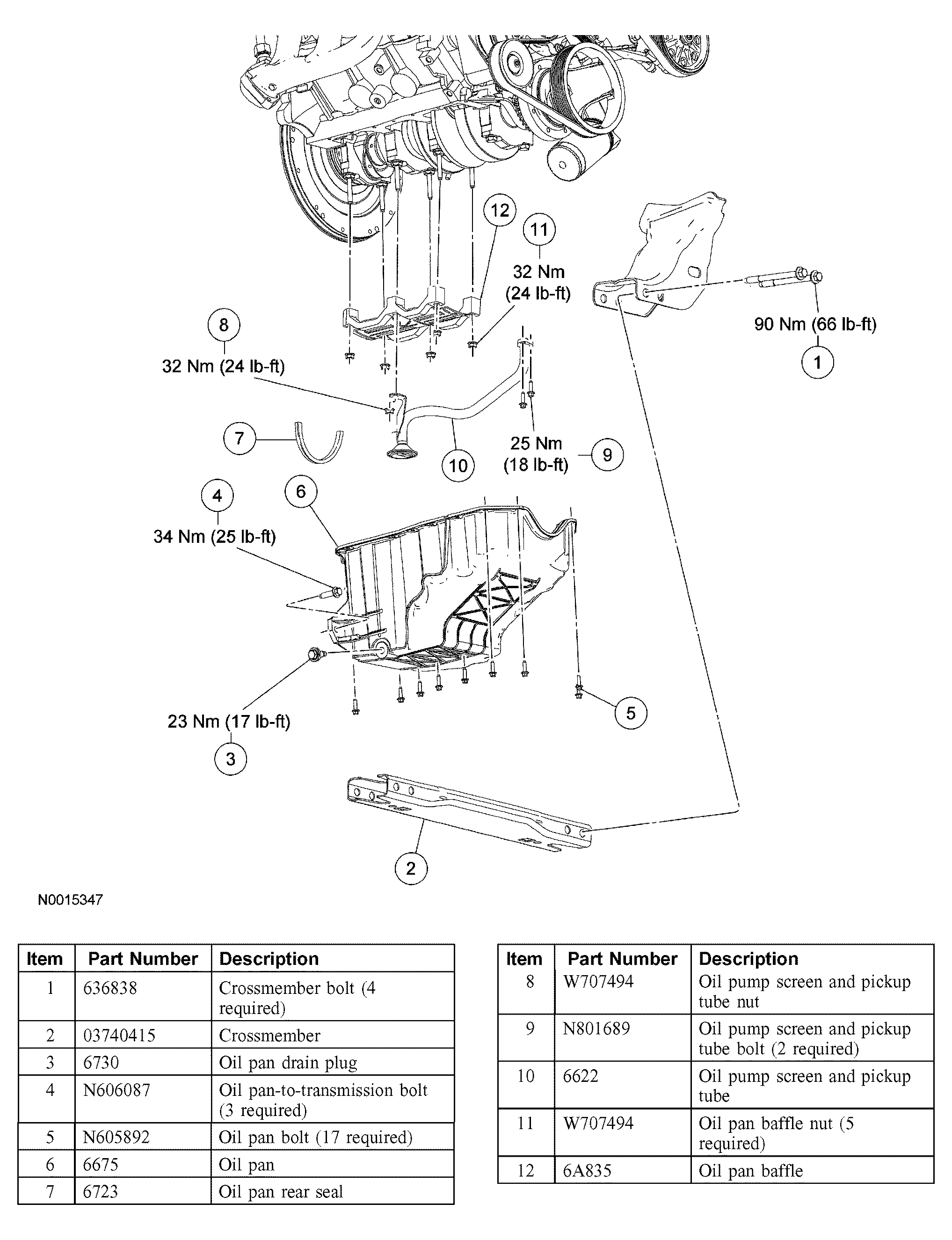

Fig 1: Exploded View Of Engine Lubrication Components
Courtesy of FORD MOTOR CO.
For additional information, refer to the procedures in this article.
