Engine Dynamic Balance Shaft: Removal

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

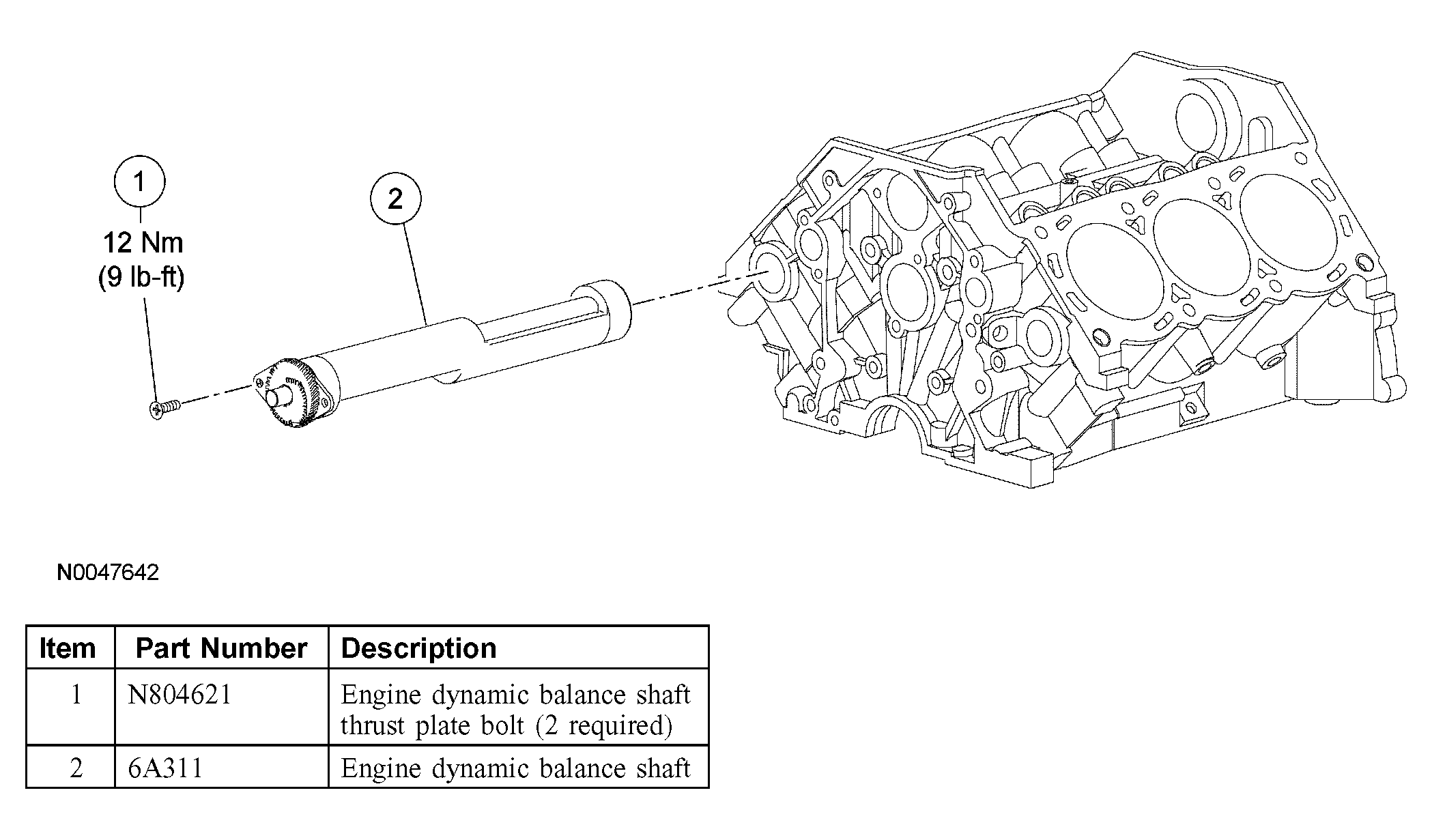

Fig 1: Identifying Engine Dynamic Balance Shaft
G03962043Courtesy of FORD MOTOR CO.
    NOTE: It is not necessary to remove the timing chain tensioner.
  1. Remove the timing drive components. For additional information, refer to TIMING DRIVE COMPONENTS .
  2. Remove the engine dynamic balance shaft drive gear.

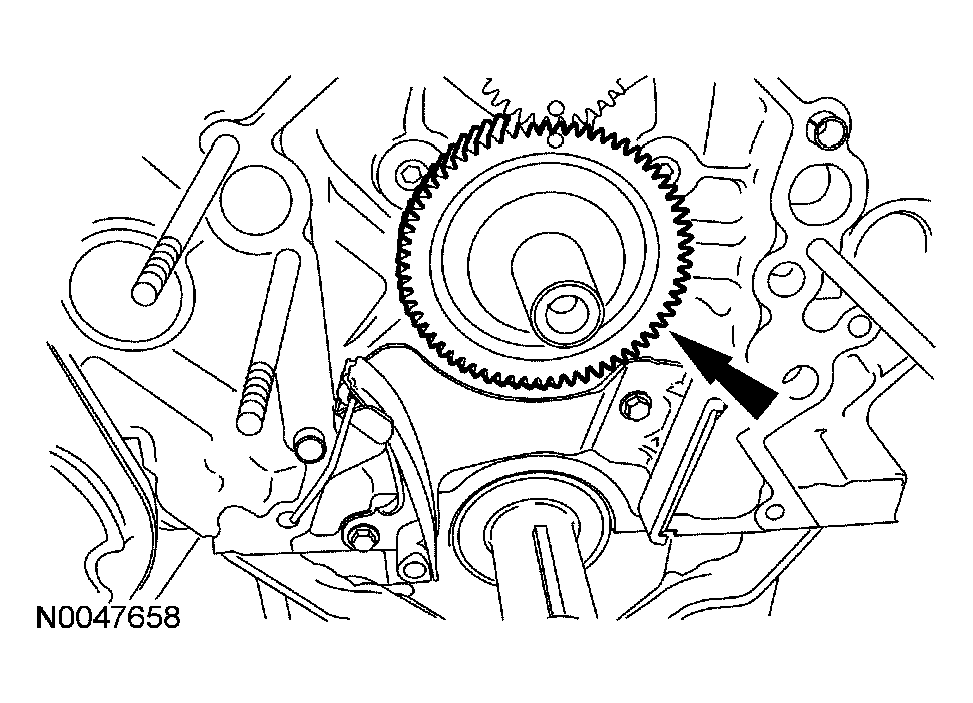

    Fig 2: Removing Engine Dynamic Balance Shaft Drive Gear
    G03962044Courtesy of FORD MOTOR CO.
  3. Remove the bolts and the engine dynamic balance shaft.
