Disassembly And Assembly Of Subassemblies: Piston: Disassembly

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

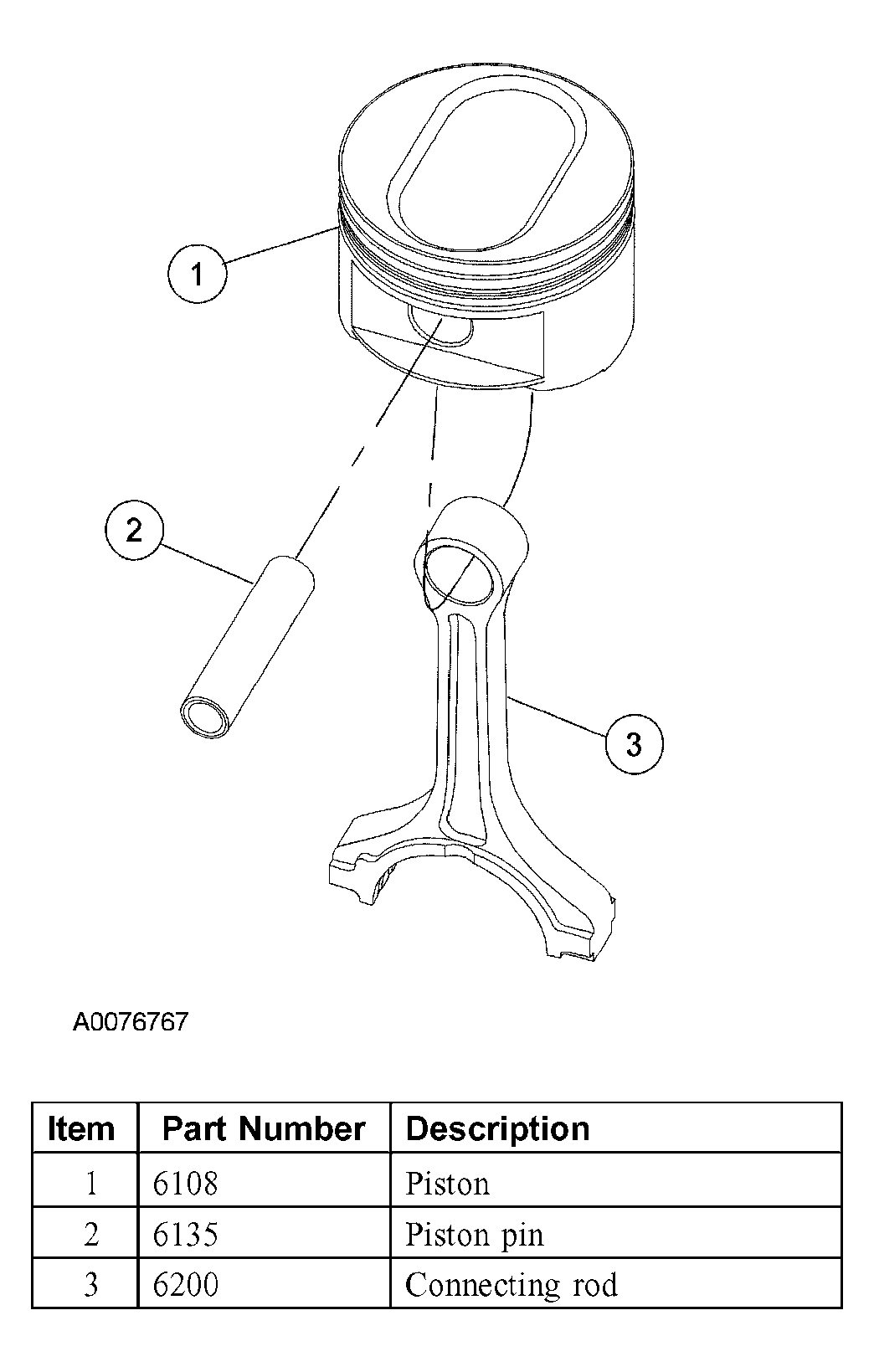

Fig 1: Identifying Piston, Piston Rod And Connecting Rod
G03962207Courtesy of FORD MOTOR CO.
  1. Remove the piston rings.
    Fig 2: Removing Piston Rings
    G03962208Courtesy of FORD MOTOR CO.
  2. Using the special tool, press the piston pin out of the connecting rod and piston assembly.
    Fig 3: Using Special Tool To Press Piston Pin Out Of Connecting Rod And Piston Assembly
    G03947322Courtesy of FORD MOTOR CO.
  3. Remove the connecting rod from the piston.
    Fig 4: Removing Connecting Rod From Piston
    G03962210Courtesy of FORD MOTOR CO.
  4. Clean and inspect the connecting rod and piston. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .
