Cylinder Head: Disassembly

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

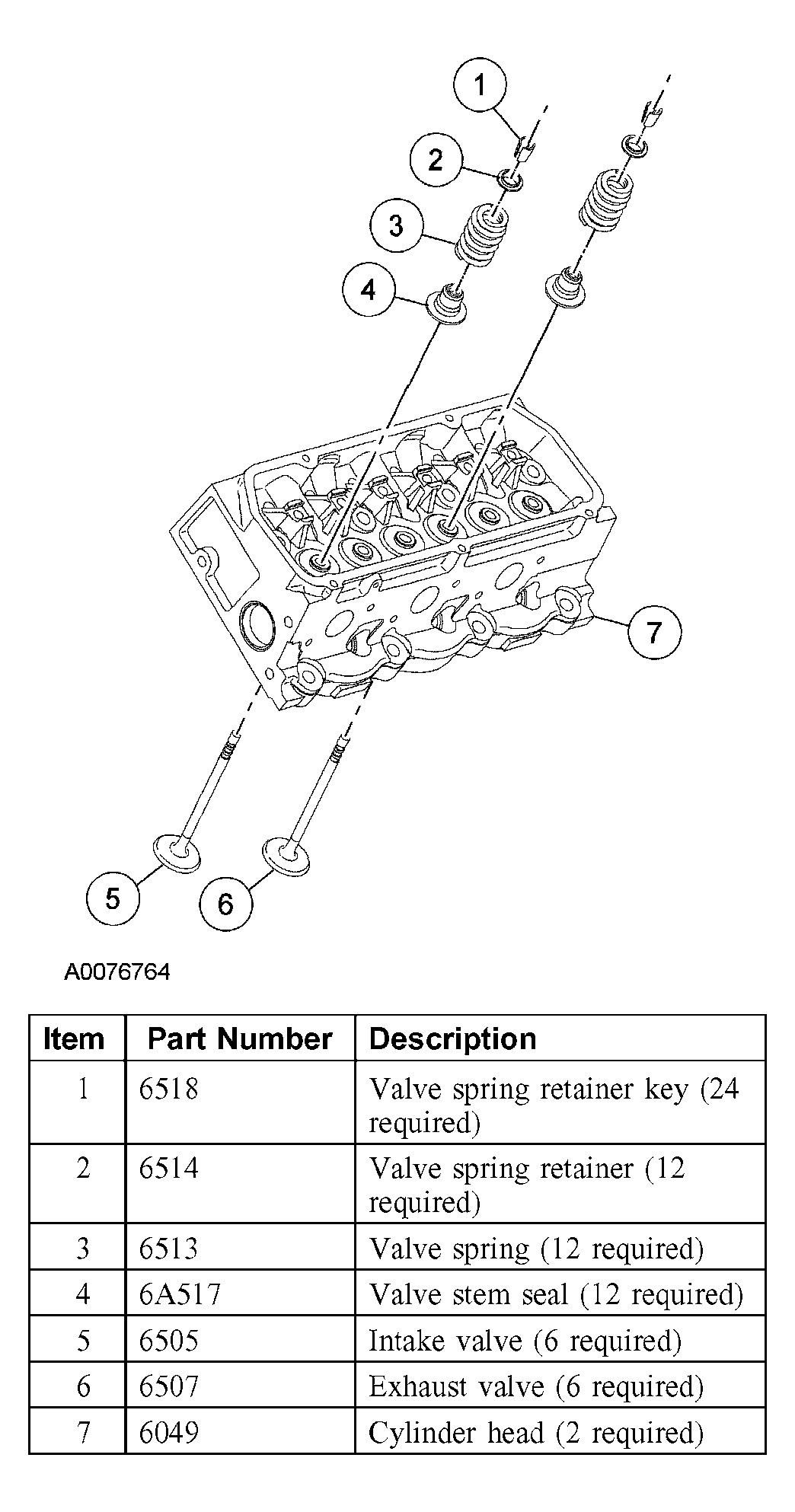

Fig 1: Identifying Cylinder Head Components
G03962202Courtesy of FORD MOTOR CO.
CAUTION: If the components are to be reinstalled, they must be installed in the same position. Mark the components removed for location.
  1. Remove the spark plugs, if necessary.
    • To install, tighten to 15 Nm (11 lb-ft)
    Fig 2: Removing Spark Plugs
    G03962203Courtesy of FORD MOTOR CO.
  2. Using the special tool, compress the valve springs.
    Fig 3: Using Special Tool To Compress Valve Springs
    G03962026Courtesy of FORD MOTOR CO.
  3. Remove the following:
    1. Valve spring retainer keys
    2. Valve spring retainers
    3. Valve springs
    4. Valve stem seals and seats
    5. Intake valves
    6. Exhaust valves

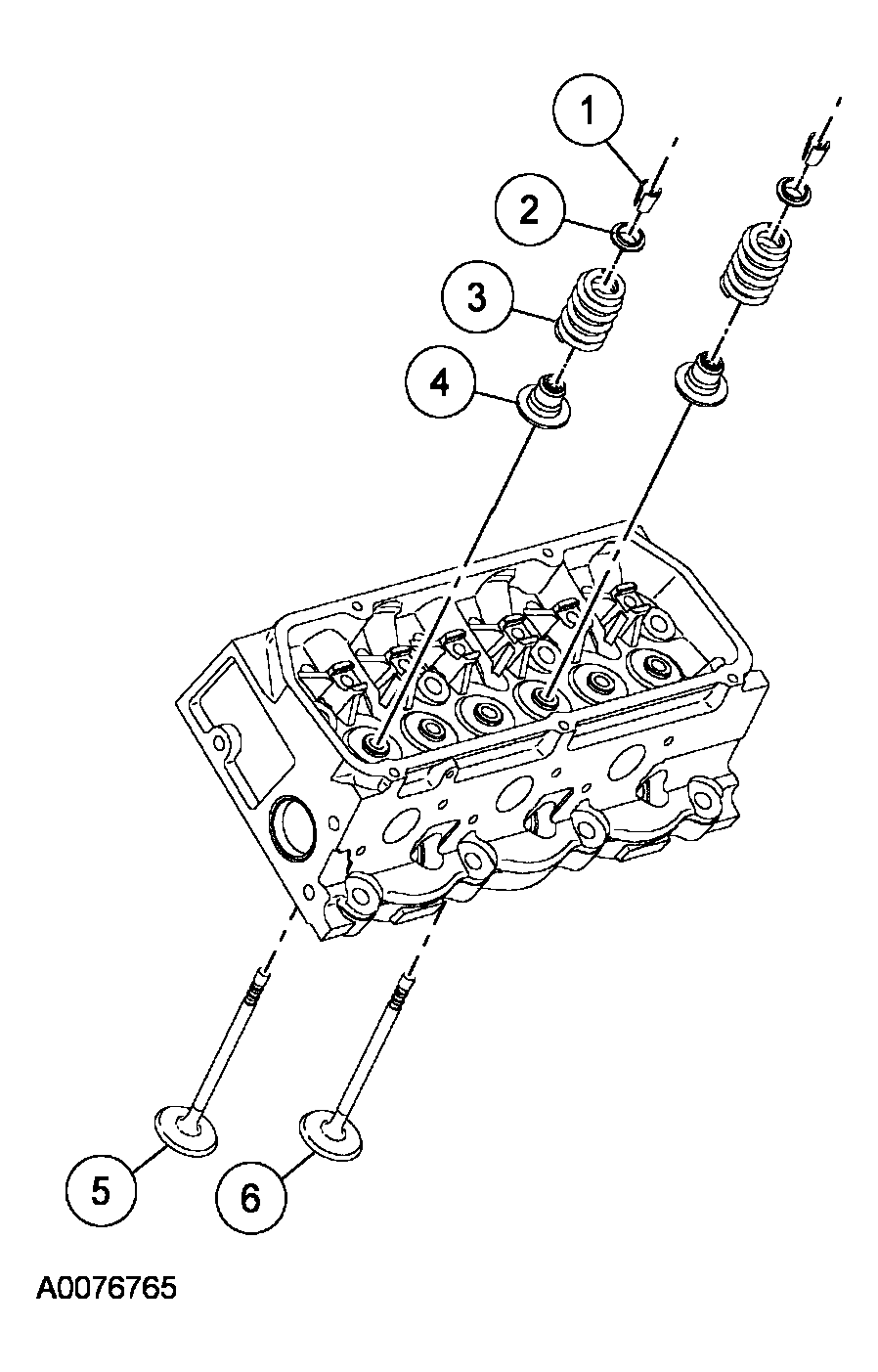

    Fig 4: Removing Valve Spring Retainer Keys, Valve Spring Retainers, Valve Springs, Intake And Exhaust Valves, Valve Stem Seals And Seats
    G04004195Courtesy of FORD MOTOR CO.
  4. Inspect the components. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .
