Intake Manifold Tuning (IMT) Valve - 4.6L (2V): Notes

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL REFERENCE

Item	Specification
SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP or equivalent	WSS-M2C930-A

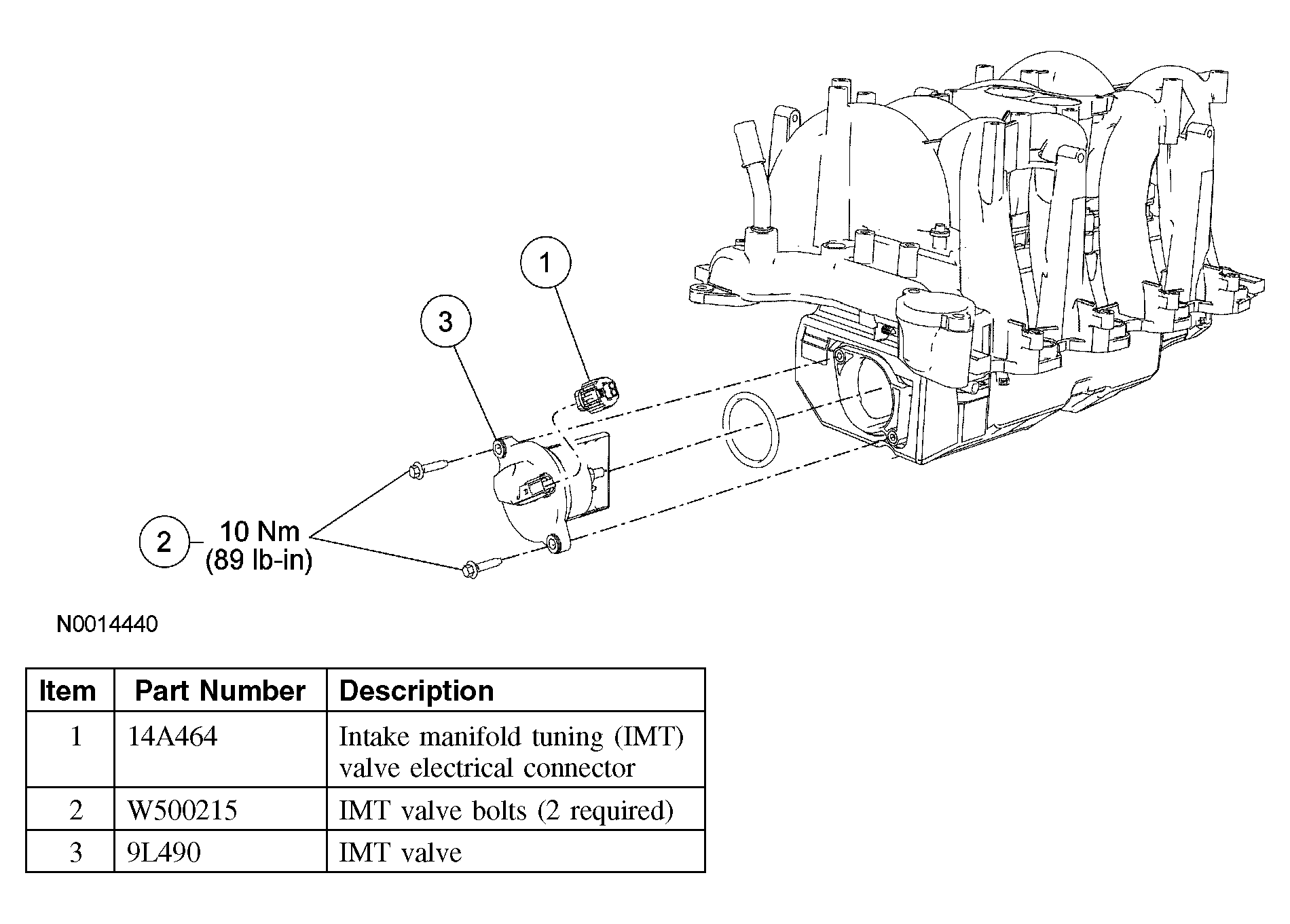

Fig 1: Exploded View Of Intake Manifold Tuning (IMT) Valve - 4.6L (2V)

Courtesy of FORD MOTOR CO.
