Crankshaft Position (CKP) Sensor - 4.6L (2V) and 5.4L (3V): Notes

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

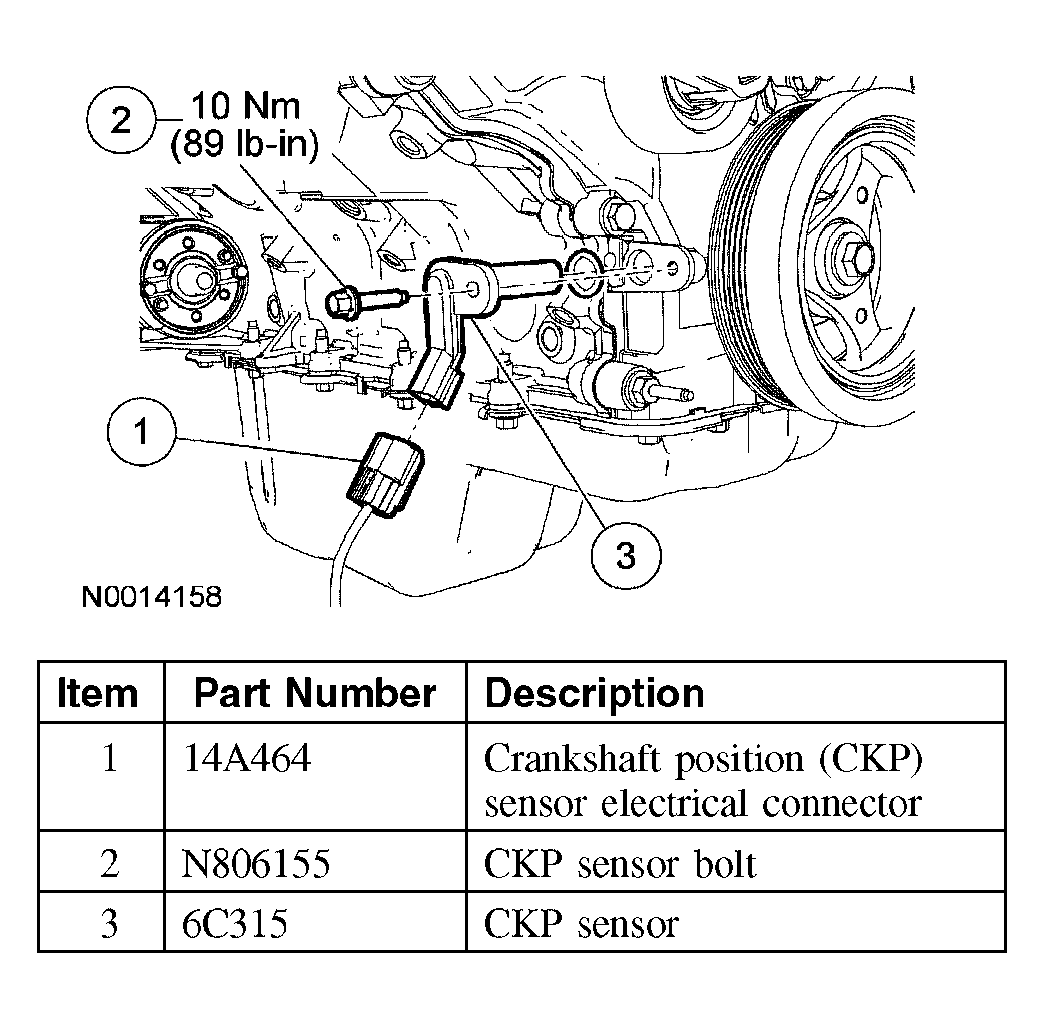

Fig 1: Identifying Crankshaft Position (CKP) Sensor - 4.6L (2V) and 5.4L (3V)
G03963732Courtesy of FORD MOTOR CO.
