Crankshaft Position (CKP) Sensor - 4.2L
WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
- Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .

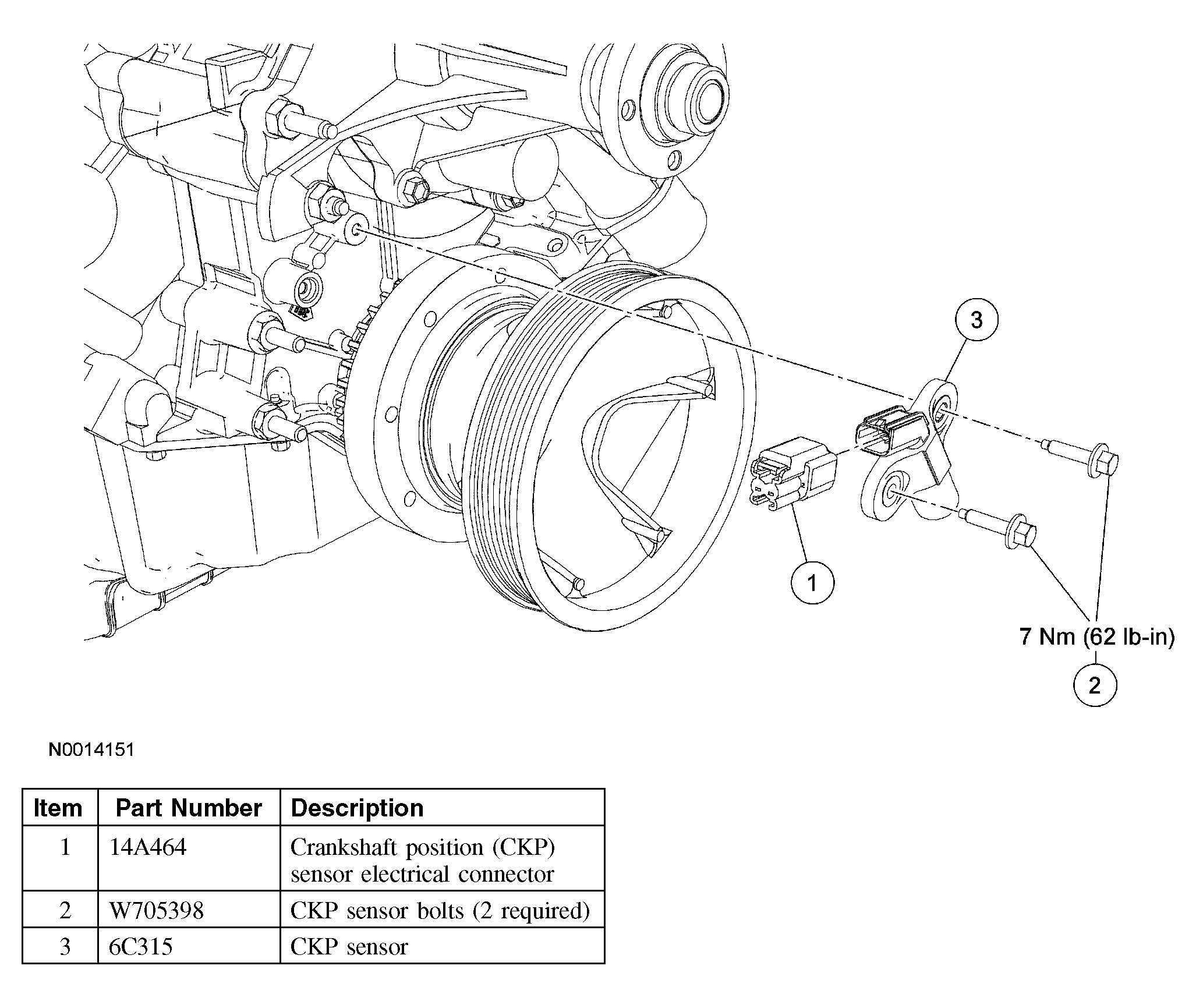

- Disconnect the crankshaft position (CKP) sense electrical connector.
- Remove the bolts and the CKP sensor.
- To install, tighten to 7 Nm (62 lb-in).
- To install, reverse the removal procedure.
