Charge Motion Control Valve (CMCV) - 5.4L (3V): Notes

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The charge motion control valve (CMCV) is sometimes referred to as the intake manifold runner control (IMRC) actuator in the INTRODUCTION -- GASOLINE MODELS article .

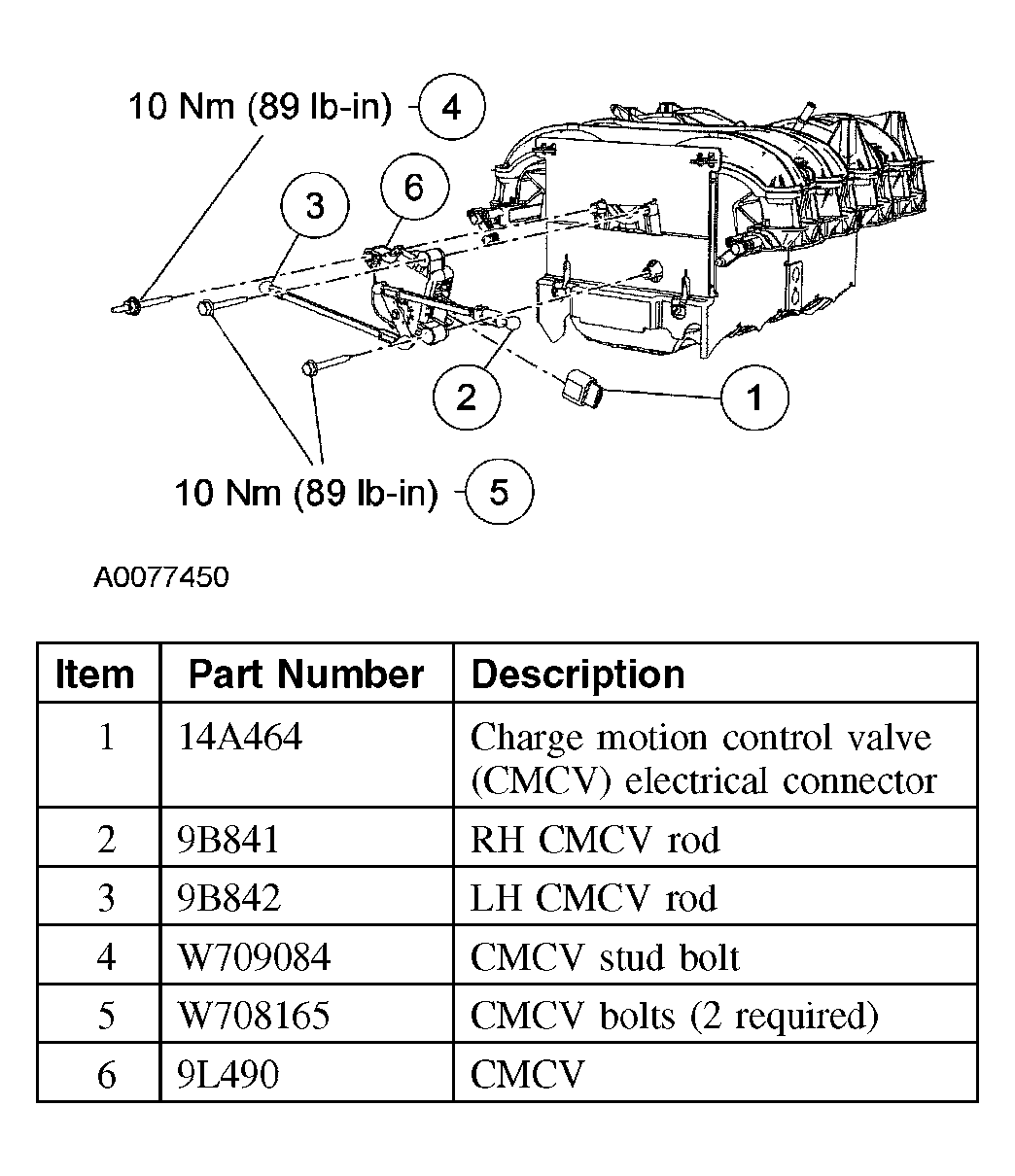

Fig 1: Identifying Charge Motion Control Valve (CMCV) - 5.4L (3V)

Courtesy of FORD MOTOR CO.
