Camshaft Synchronizer - 4.2L: Notes

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

CAMSHAFT SYNCHRONIZER - 4.2L SPECIAL TOOL

Synchronizer Alignment Gauge 303-562 (T96T-12200-A)

MATERIAL REFERENCE

Item	Specification
SAE 5W-20 Premium Synthetic Blend Motor Oil or equivalent XO-5W20-QSP	WSS-M2C930-A
Premium Gold Engine Coolant VC-7-A (in California, Oregon and New Mexico VC-7-B, in Canada CVC-7-A) or equivalent	WSS-M97B51-A1

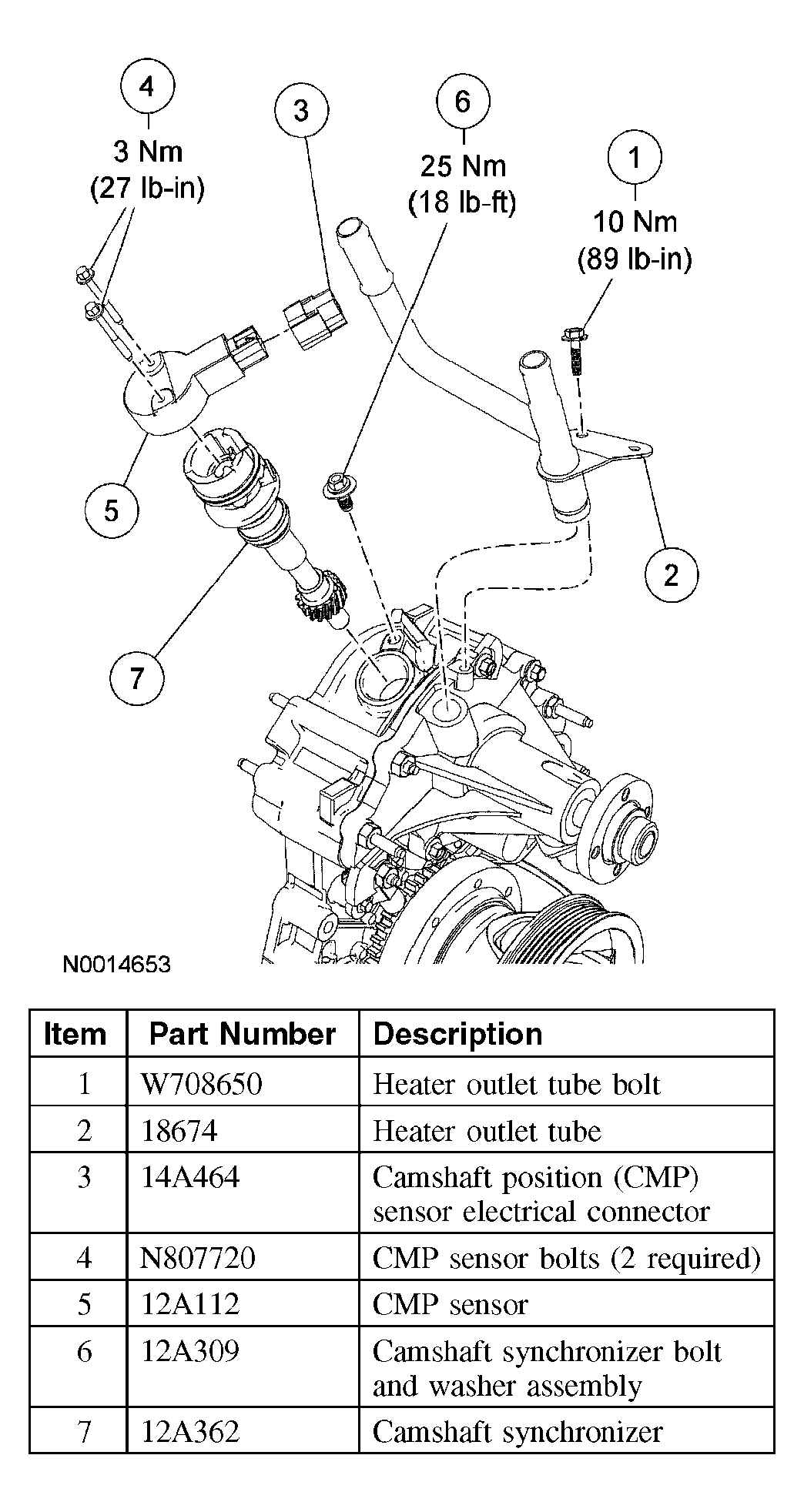

Fig 1: View Of Camshaft Synchronizer - 4.2L

Courtesy of FORD MOTOR CO.
