Section 985 (Electronic Engine Control System -- F150 Pickup)
>>
Removal And Installation
>>
Camshaft Position (CMP) Sensor - 5.4L (3V)
>>
Notes
Camshaft Position (CMP) Sensor - 5.4L (3V): Notes
WARNING:
This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

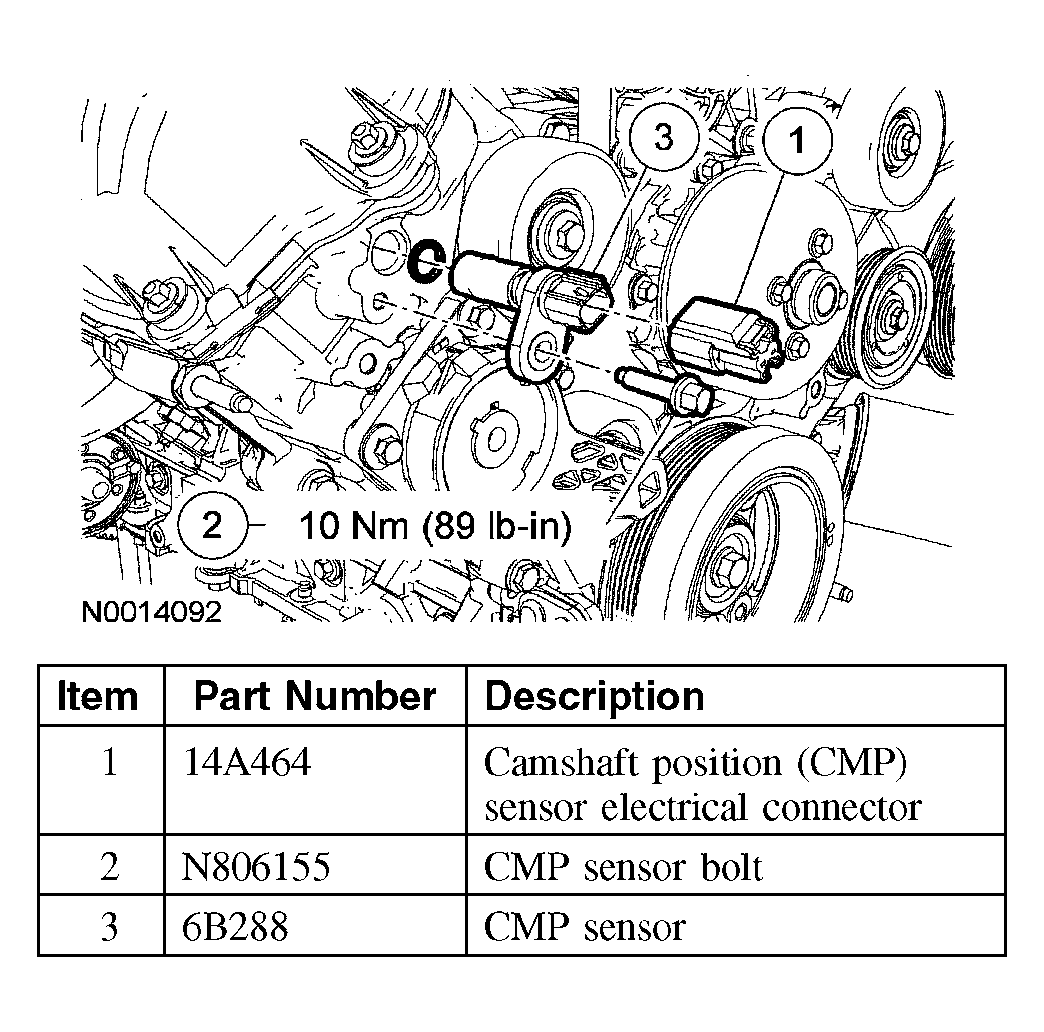

Fig 1: Identifying Camshaft Position Sensor - RH
Courtesy of FORD MOTOR CO.

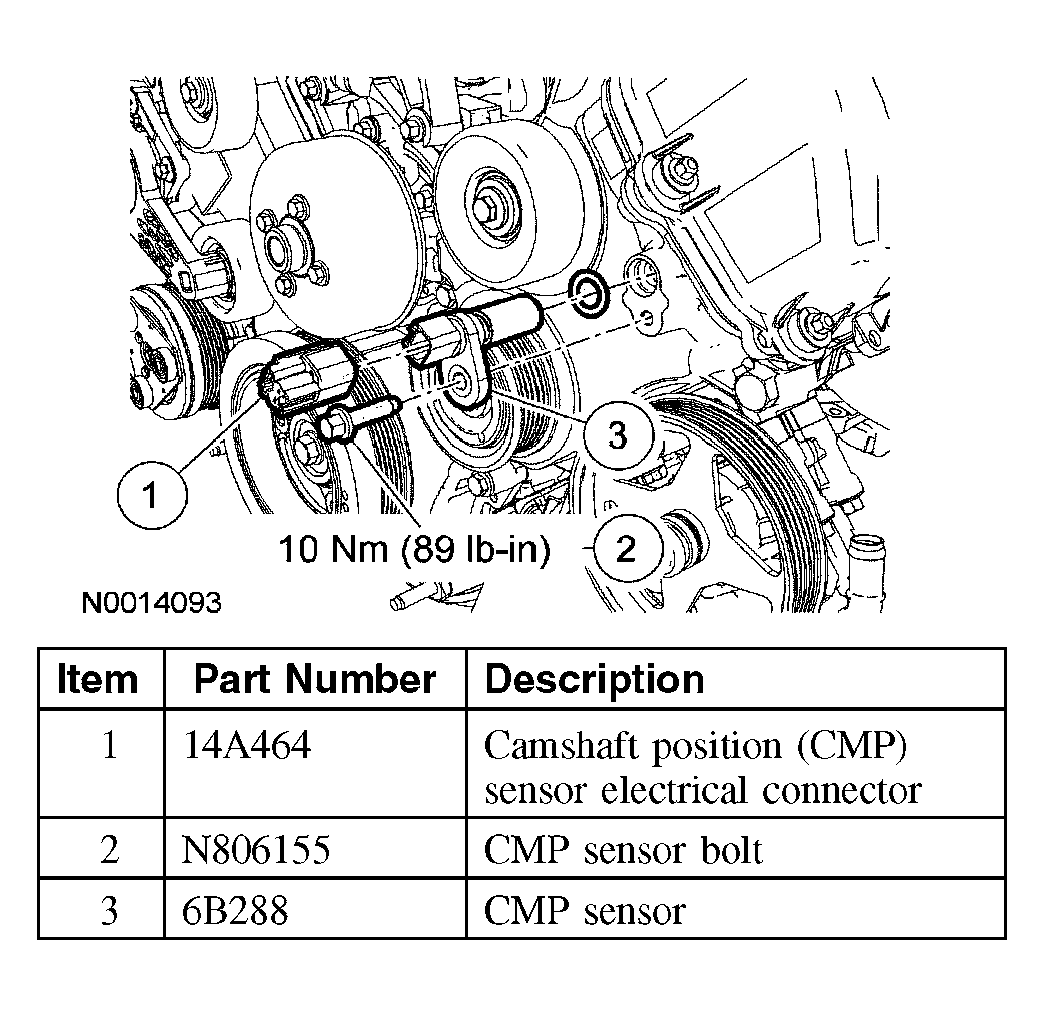

Fig 2: Identifying Camshaft Position Sensor - LH
Courtesy of FORD MOTOR CO.
