Powertrain Control Module (PCM) C175b

WARNING: This page is about a different car, the 2005 Ford Pickup, 2004 Ford Pickup, and 2003 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

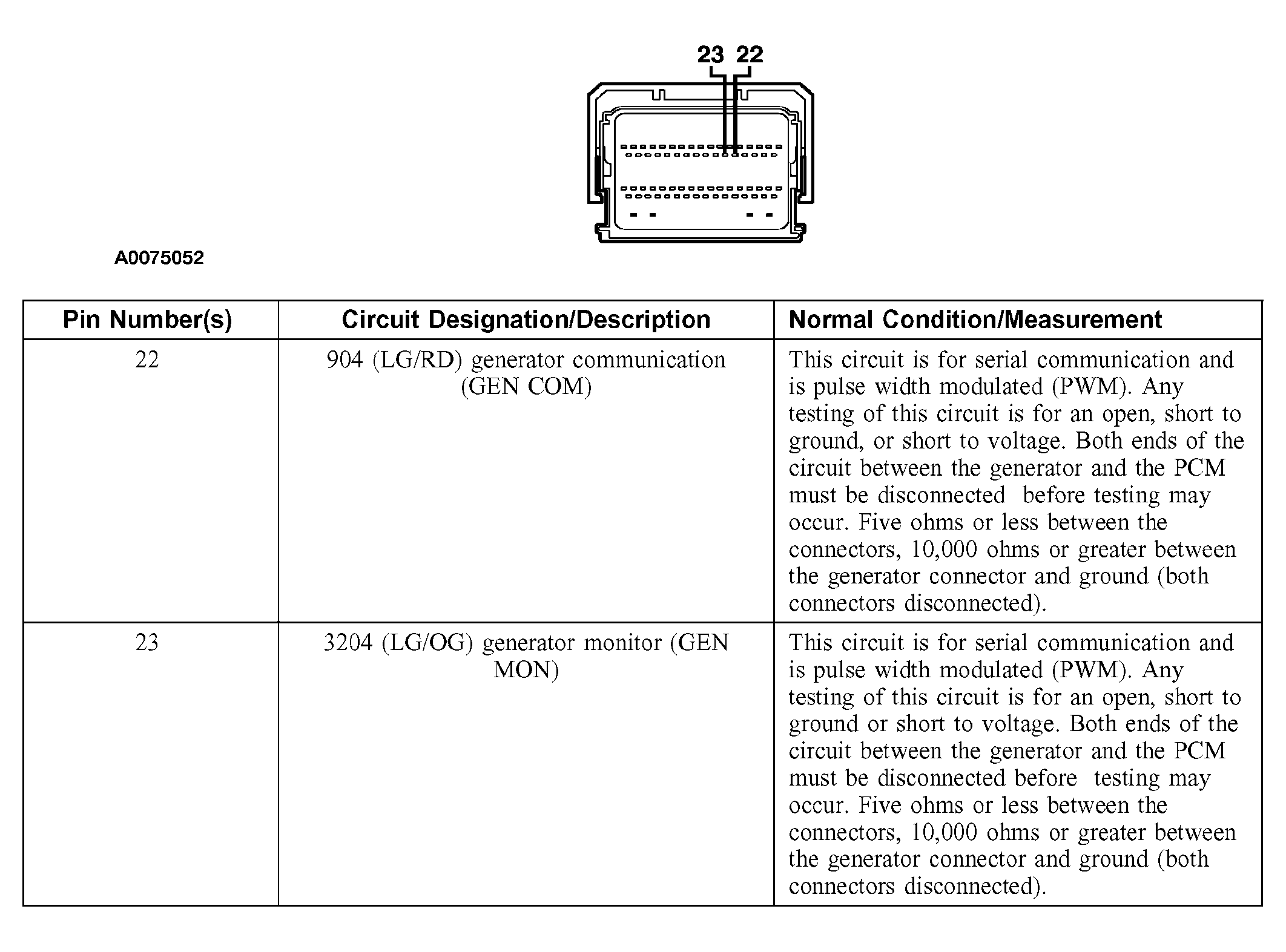

Fig 1: Identifying Powertrain Control Module (PCM) C175b Connector Circuit Reference
G03965569Courtesy of FORD MOTOR CO.
