Thermostat - 4.2L: Notes

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

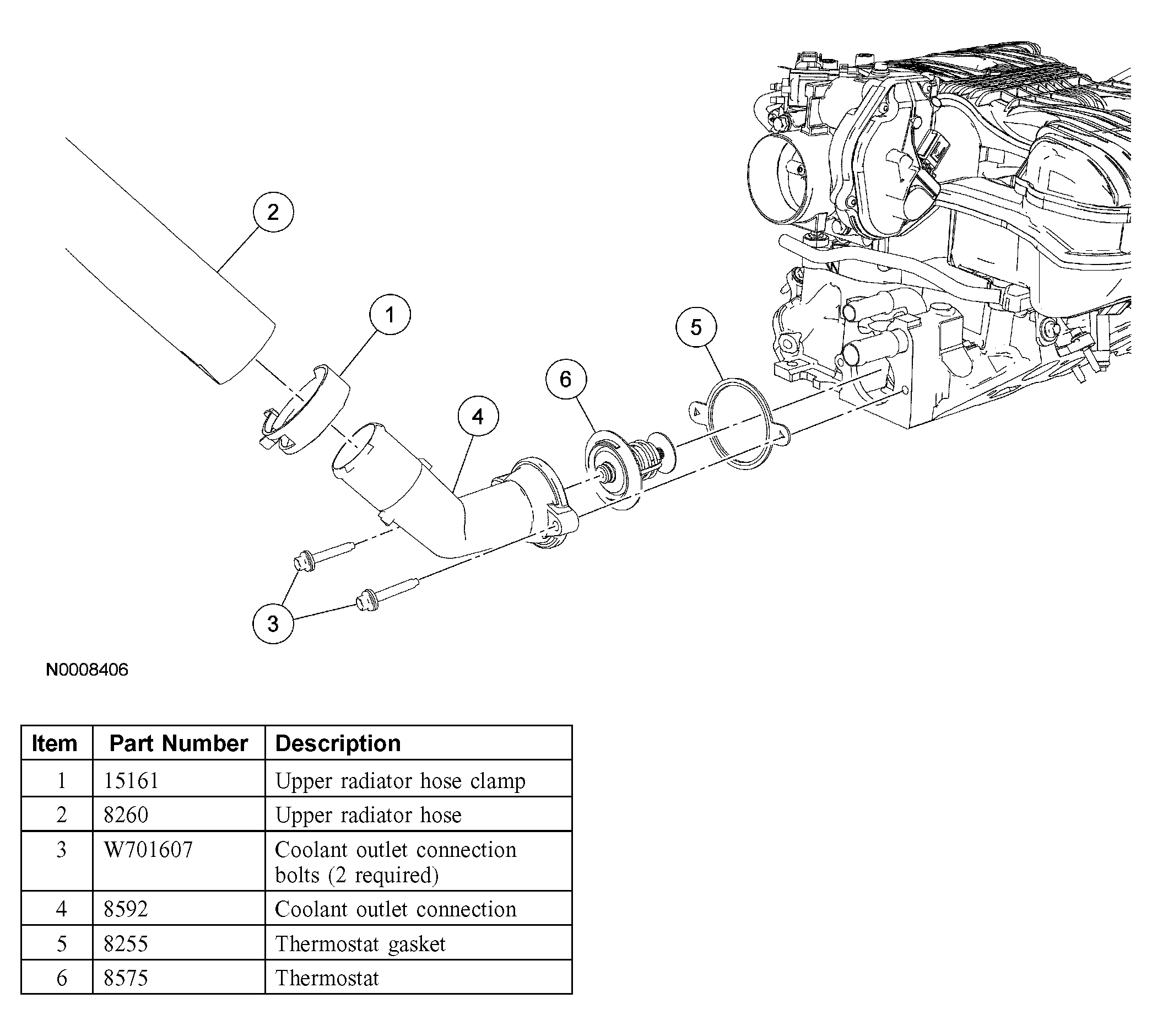

Fig 1: Exploded View Of Thermostat - 4.2L
G03982095Courtesy of FORD MOTOR CO.
