Coolant Pump - 4.2L: Notes

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL SPECIFICATIONS

Item	Specification
Motorcraft Premium Gold Engine Coolant VC-7-A (in California, Oregon and New Mexico VC-7-B, in Canada CVC-7-A) or equivalent (yellow color)	WSS-M97B51-A1
Motorcraft Metal Surface Prep ZC-31	-

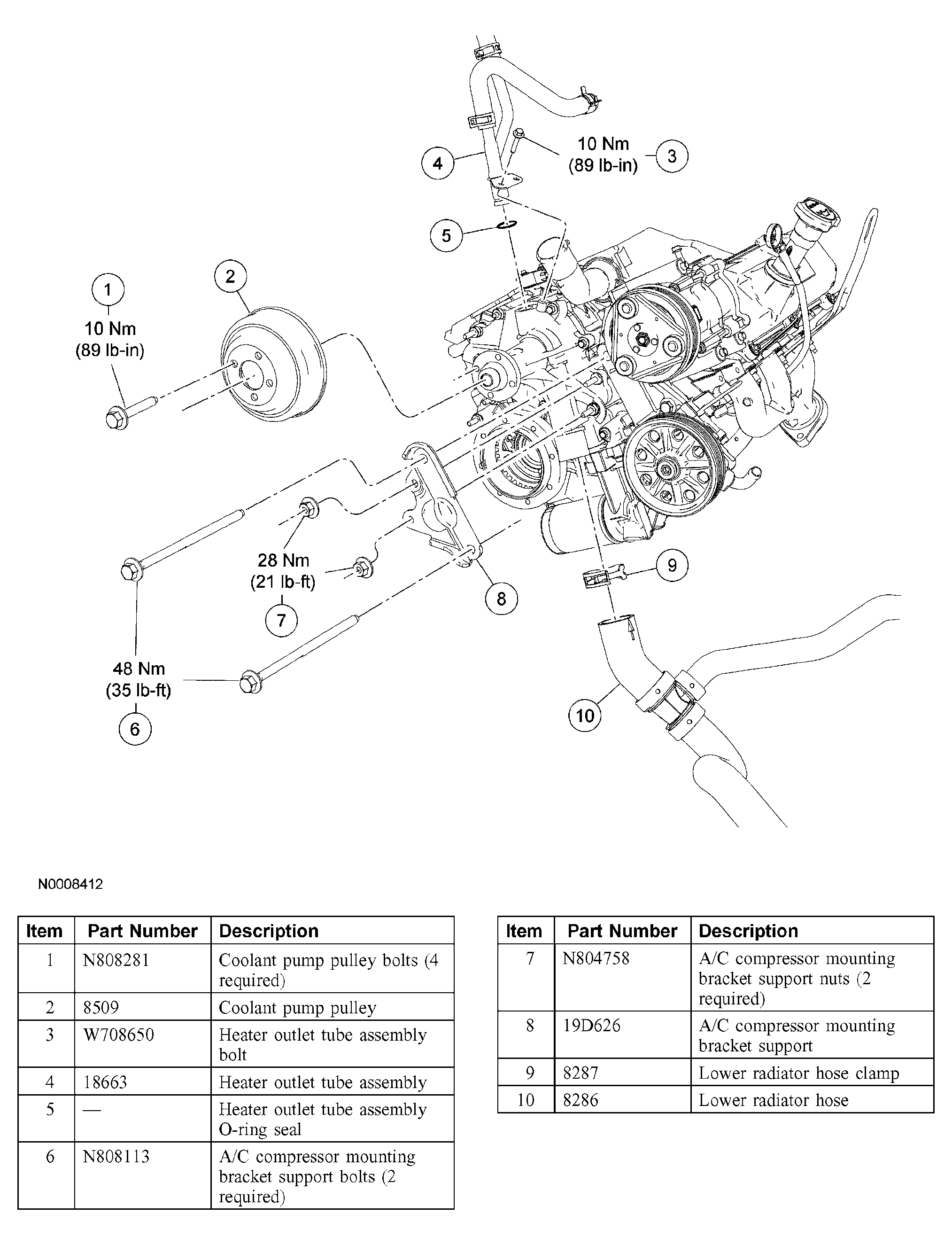

Fig 1: Exploded View Of Coolant Pump - 4.2L (Items 1-10)

Courtesy of FORD MOTOR CO.

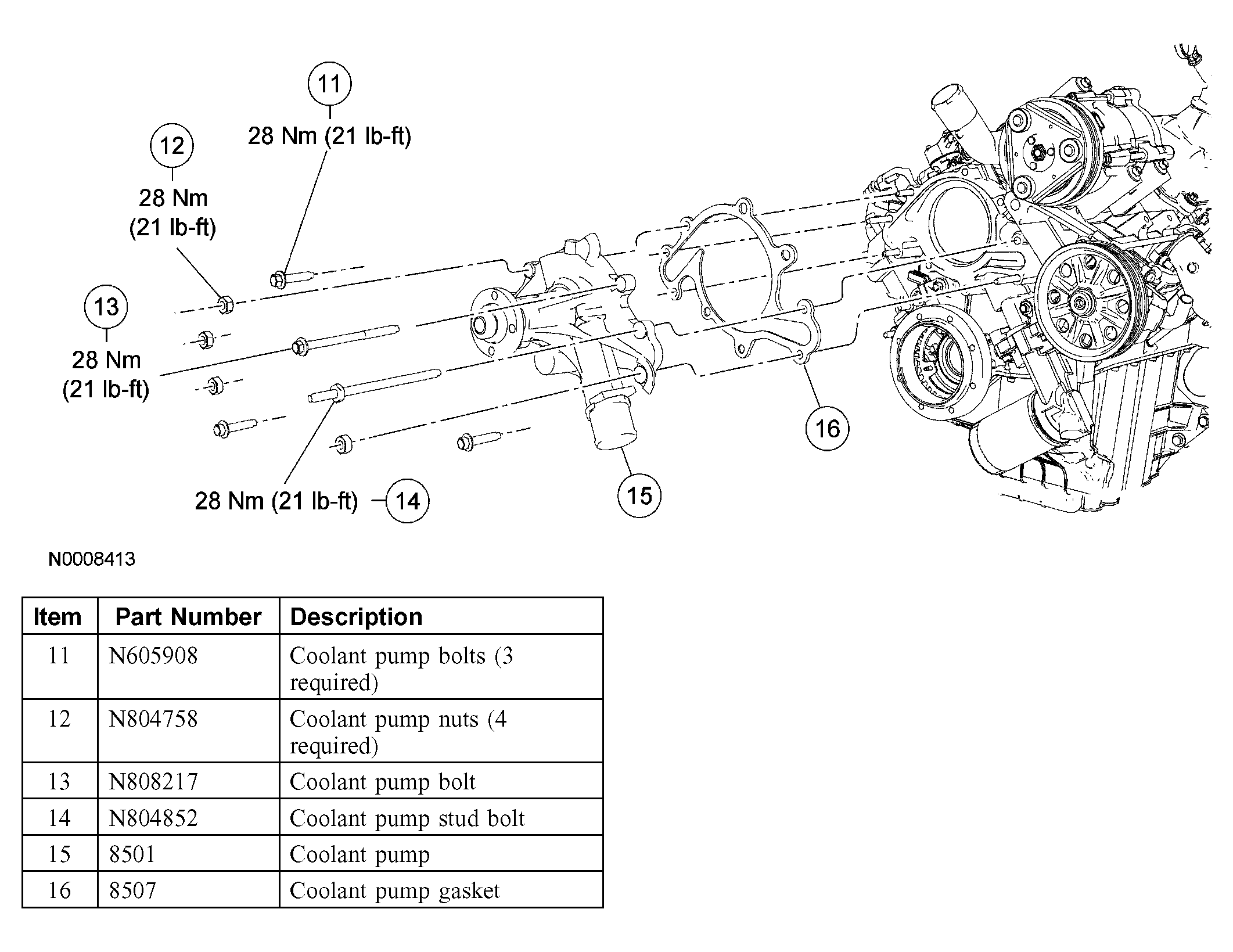

Fig 2: Exploded View Of Coolant Pump - 4.2L (Items 11-16)

Courtesy of FORD MOTOR CO.
