Starter Motor - 4.6L, 5.4L: Notes

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

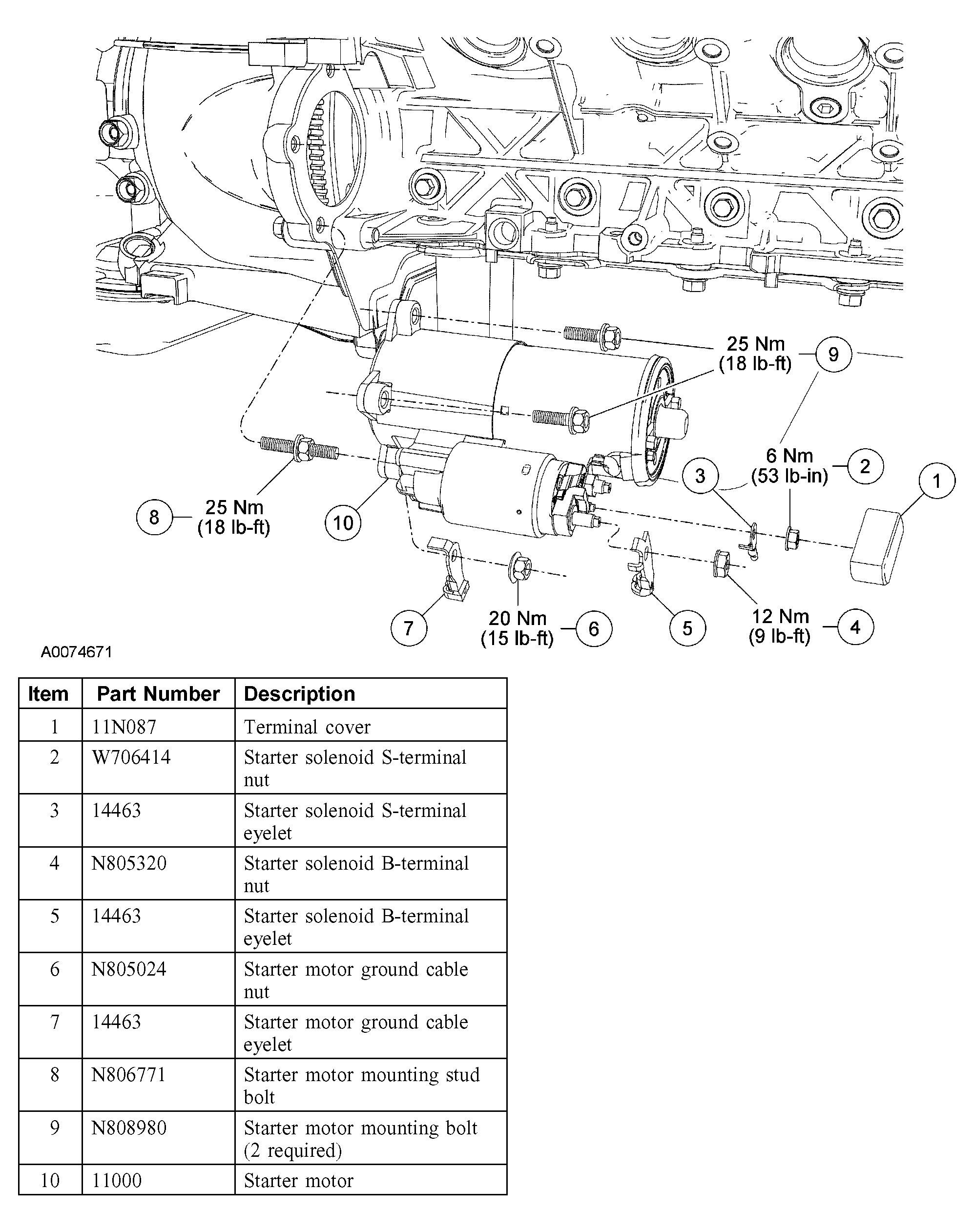

Fig 1: View Of Starter Motor - 4.6L, 5.4L
G03963682Courtesy of FORD MOTOR CO.
