Digital Transmission Range (TR) Sensor C167

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

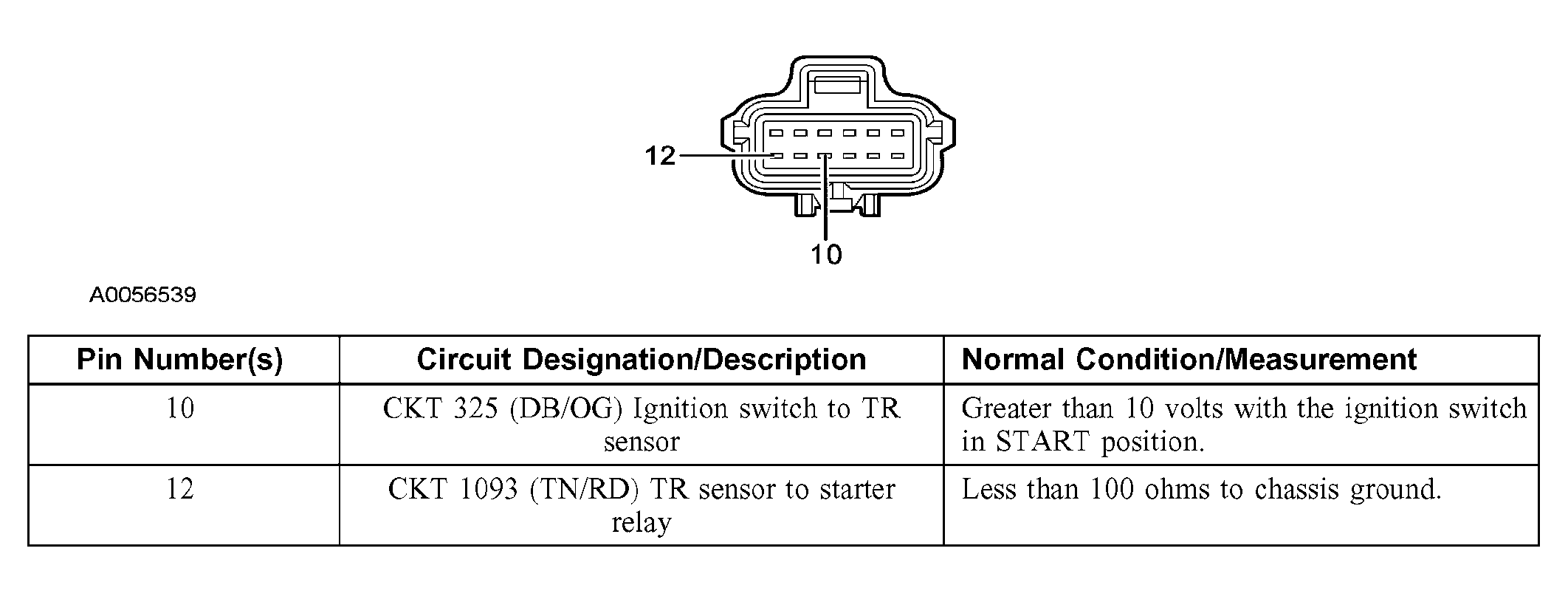

Fig 1: Identifying Digital Transmission Range (TR) Sensor C167 Connector Pinout
G03963663Courtesy of FORD MOTOR CO.
