Wheel and Tire: Notes

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

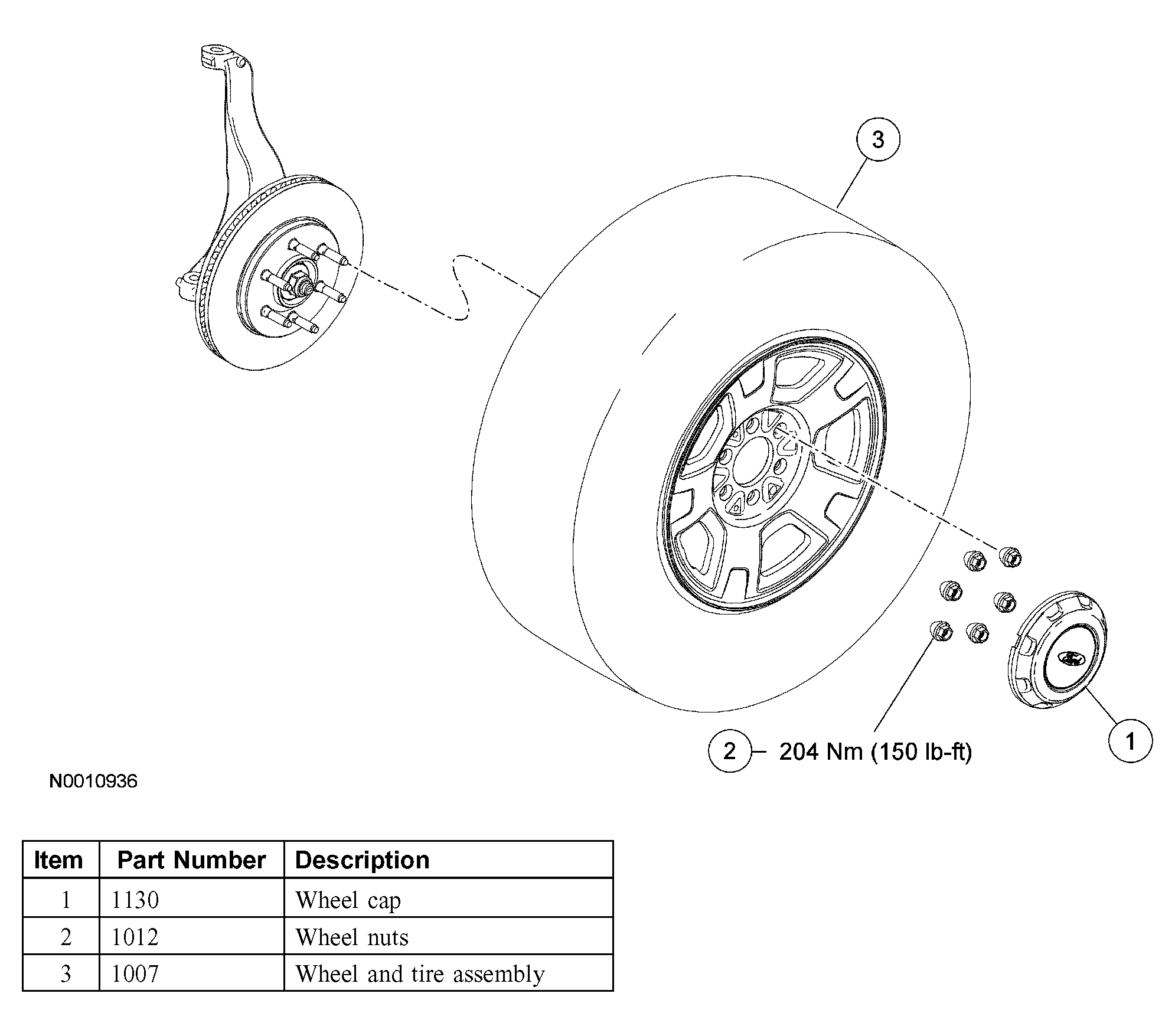

Fig 1: Identifying Front Tire Components
G03959866Courtesy of FORD MOTOR CO.

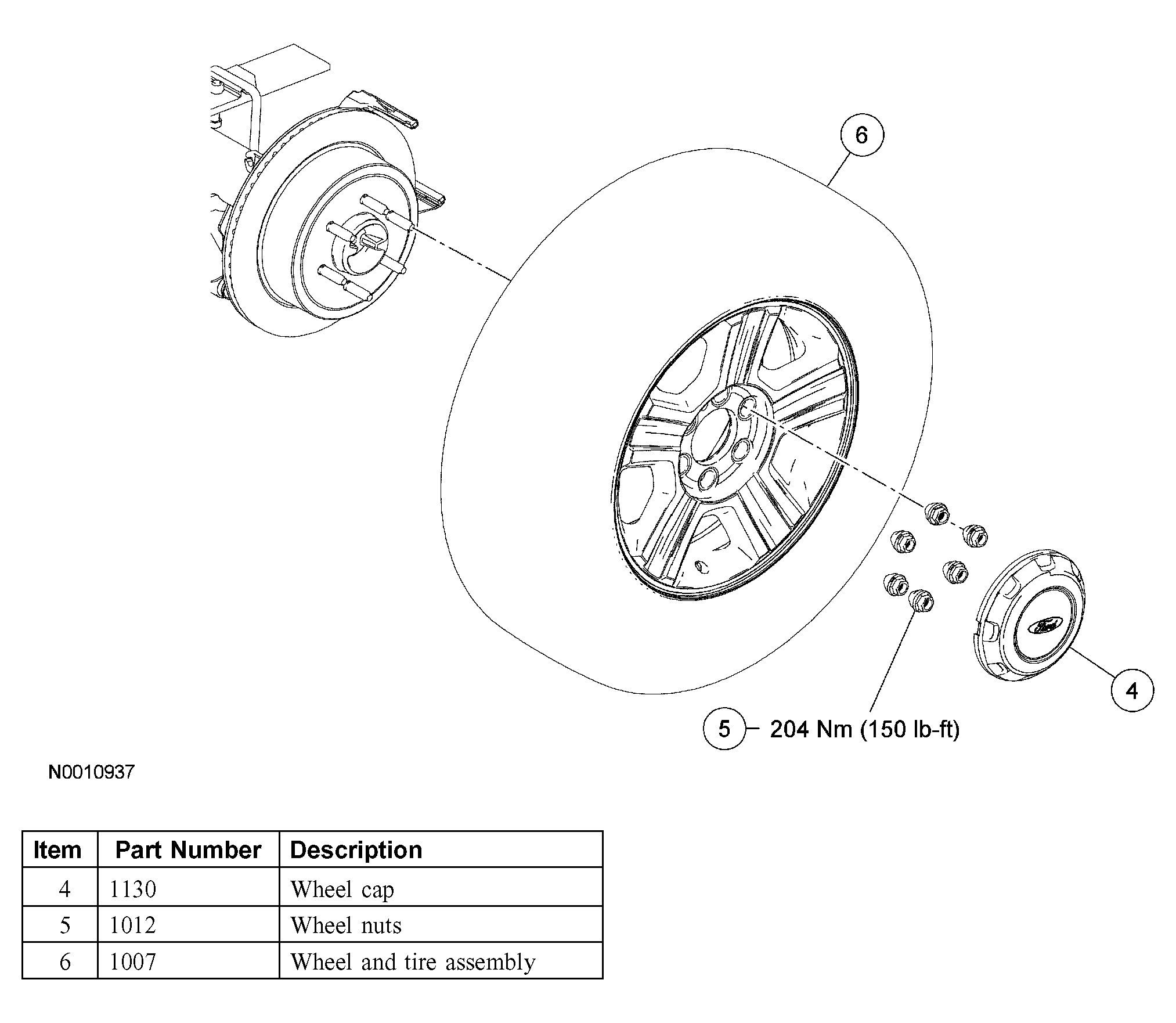

Fig 2: Identifying Rear Tire Components
G03959867Courtesy of FORD MOTOR CO.
