4x4 Module (PCM) C175t (transmission)

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

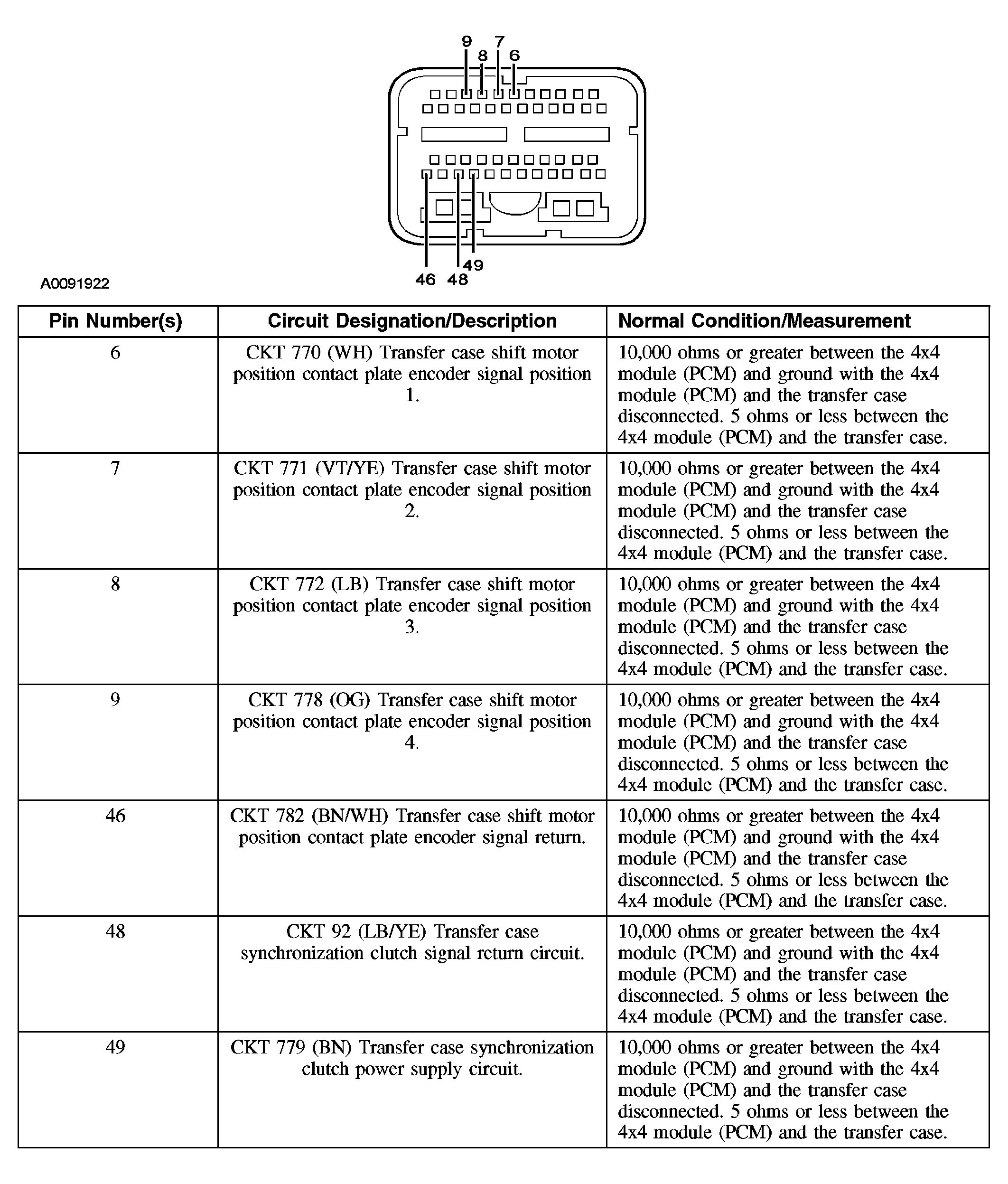

Fig 1: Identifying Connector Terminals 4x4 Module (PCM) C175t Transmission
G03964788Courtesy of FORD MOTOR CO.
