Front Suspension-Exploded View

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Early Build Vehicles

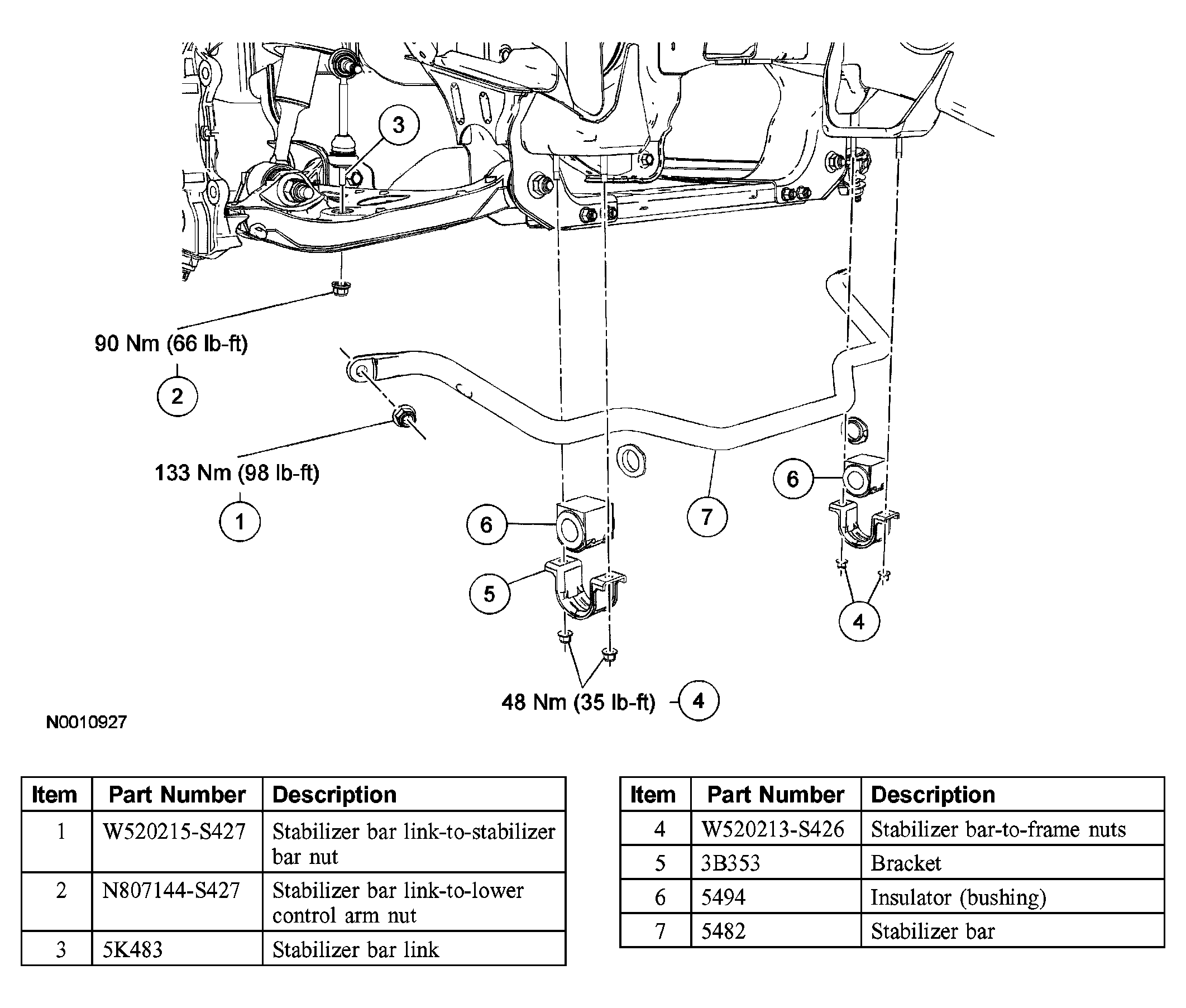

Fig 1: Exploded View Of Front Suspension - Early Build Vehicles

Courtesy of FORD MOTOR CO.

Late Build Vehicles

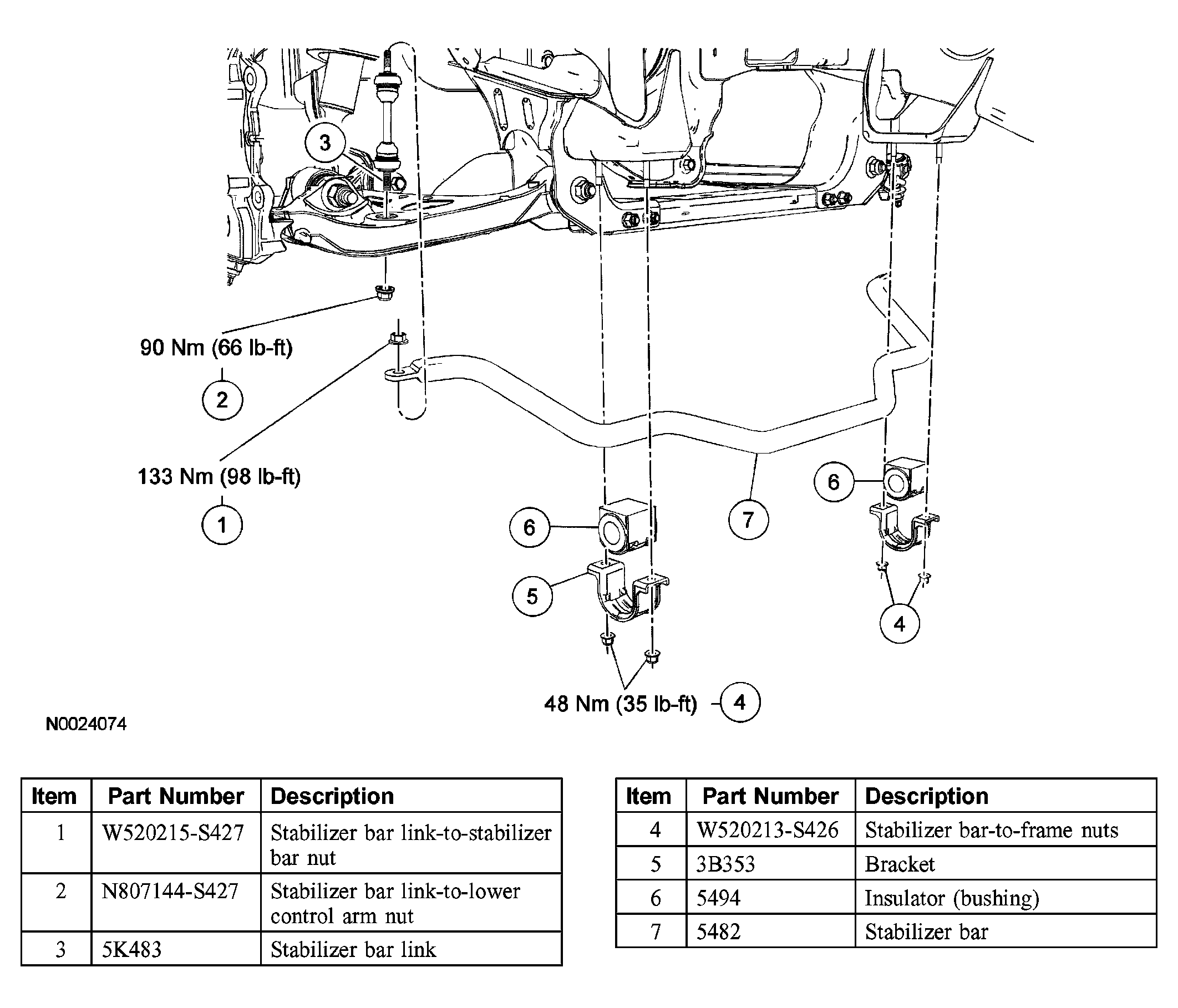

Fig 2: Identifying Front Suspension Components - Late Build Vehicles (Items 1-7)

Courtesy of FORD MOTOR CO.

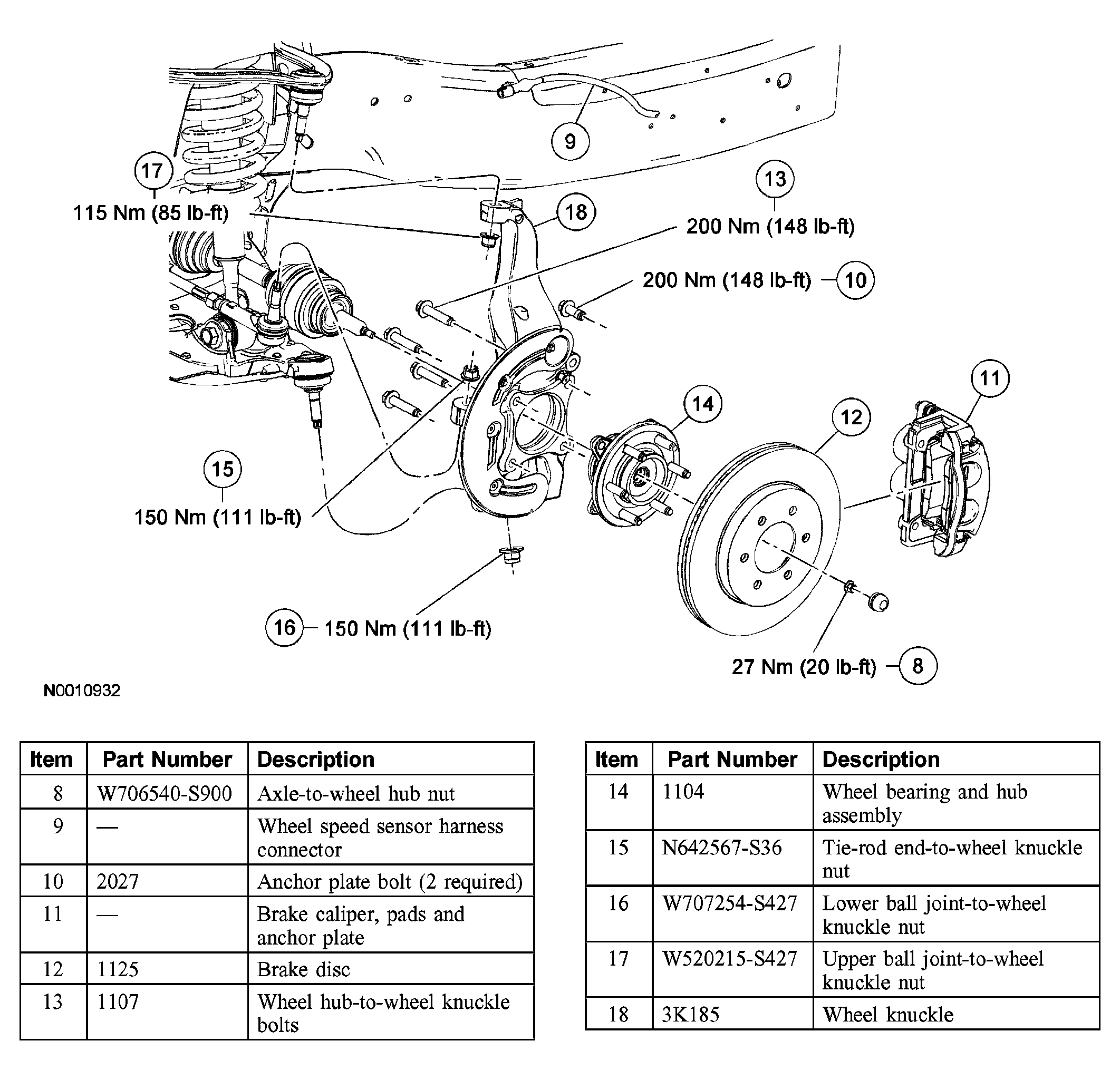

Fig 3: Identifying Front Suspension Components - Late Build Vehicles (Items 8-18)

Courtesy of FORD MOTOR CO.

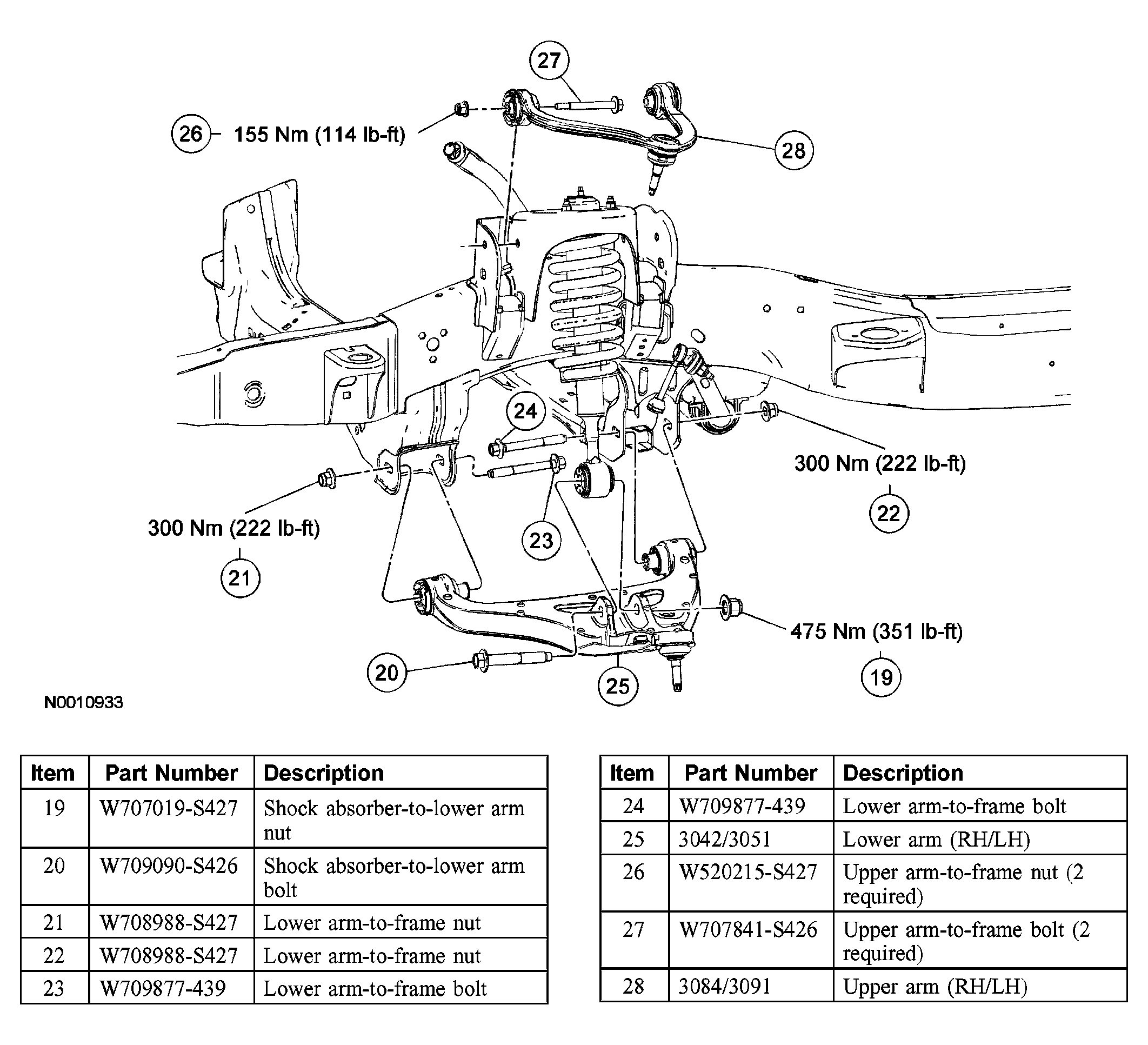

Fig 4: Identifying Front Suspension Components - Late Build Vehicles (Items 19-28)

Courtesy of FORD MOTOR CO.

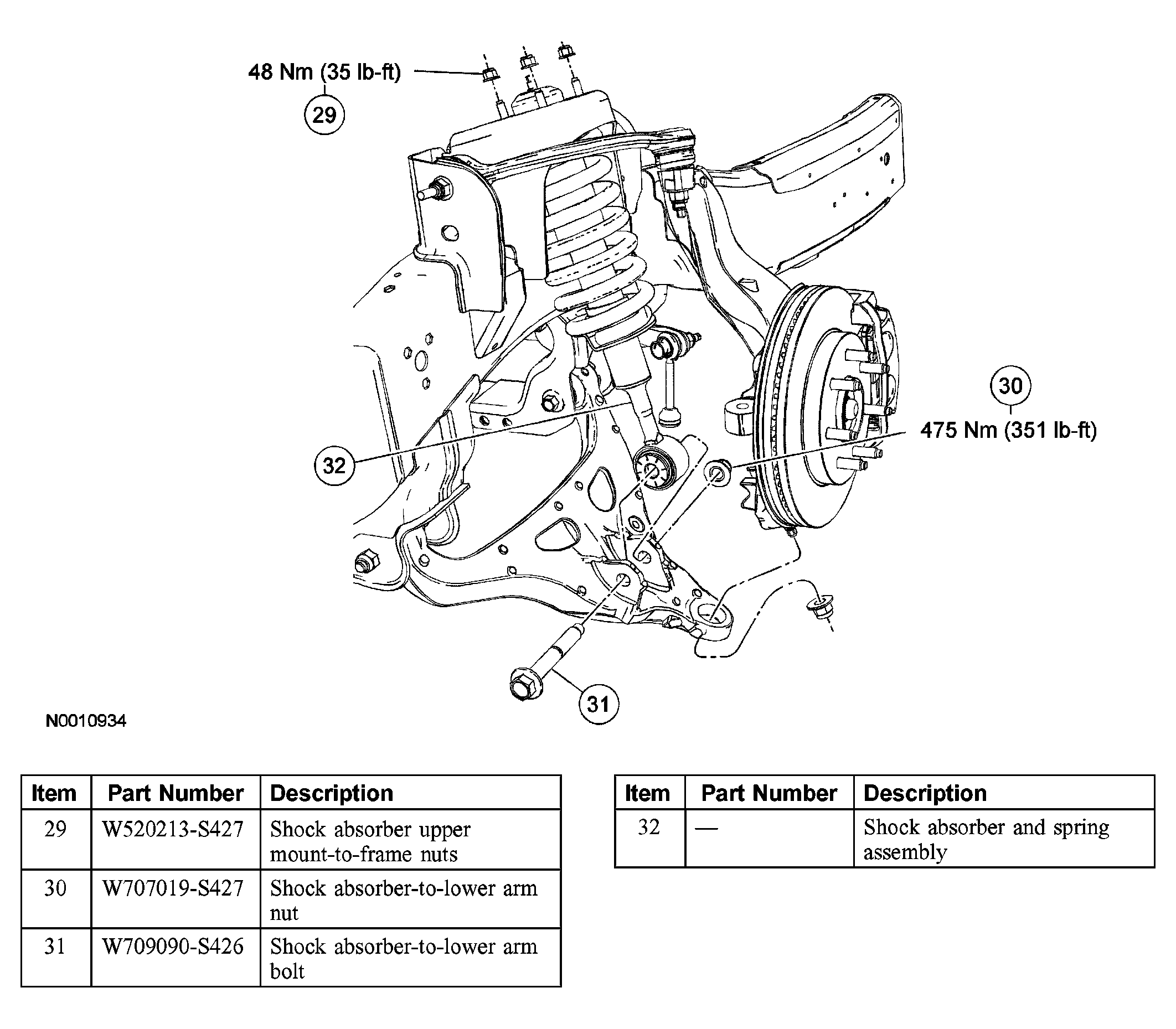

Fig 5: Identifying Front Suspension Components - Late Build Vehicles (Items 29-32)

Courtesy of FORD MOTOR CO.

For additional information, refer to the procedures in this article.
