Ride Height

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Measure the LH and RH front ride height by taking the difference between the lowest point on the wheel knuckle (A) and bolt center of the rearward lower control arm bushing (B).

For ride height specifications, refer to SUSPENSION SYSTEM-GENERAL INFORMATION .

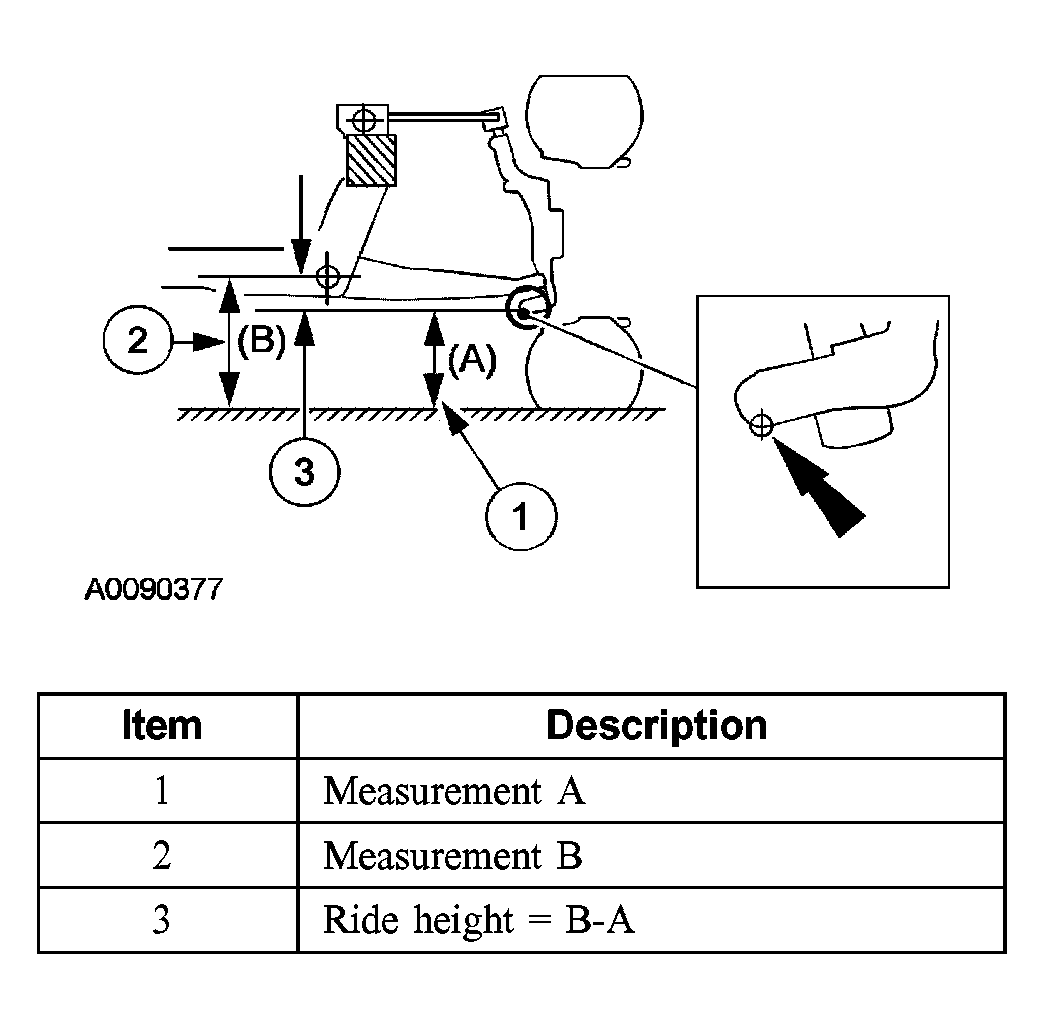

Fig 1: Identifying Front Ride Height Measurement
G03959847Courtesy of FORD MOTOR CO.
