Transmission Insulator and Retainer: Removal

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the rear transmission support nuts.

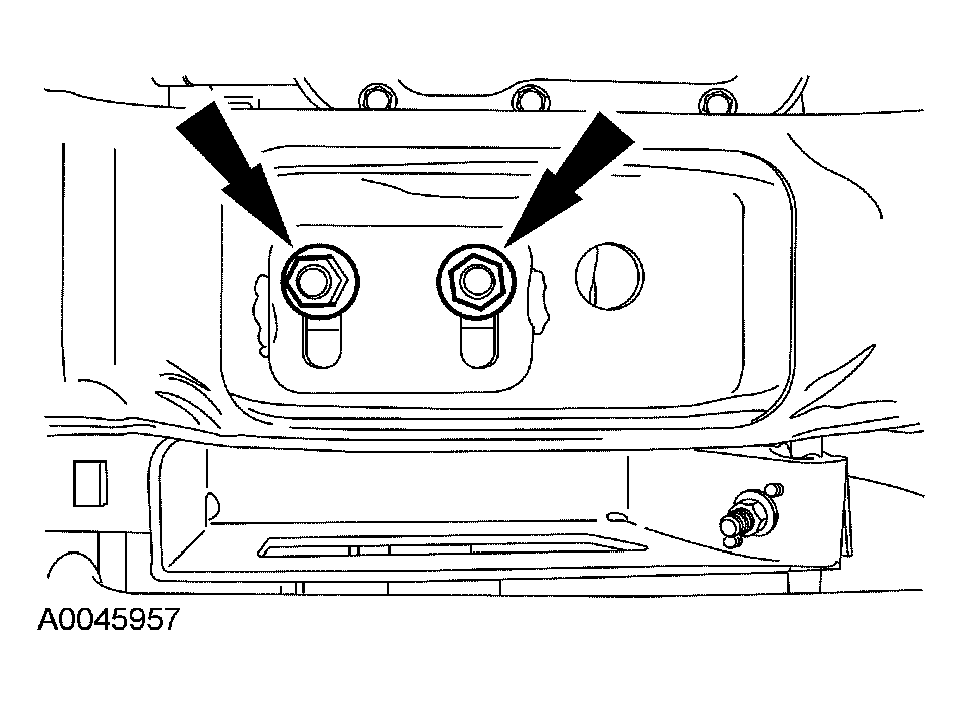

    Fig 1: Removing Rear Transmission Support Nuts
    G03929785Courtesy of FORD MOTOR CO.
  3. Install a suitable transmission jack.
  4. Slightly raise the rear of the transmission and remove the bolts. Remove the rear transmission mount.
    Fig 2: Removing Rear Transmission Mount
    G03929786Courtesy of FORD MOTOR CO.
