Transmission Insulator and Retainer: Installation

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear transmission mount and the bolts.
    Fig 1: Installing Rear Transmission Mount And Bolts
    G03929787Courtesy of FORD MOTOR CO.
  2. Lower the transmission onto the crossmember and install the nuts.

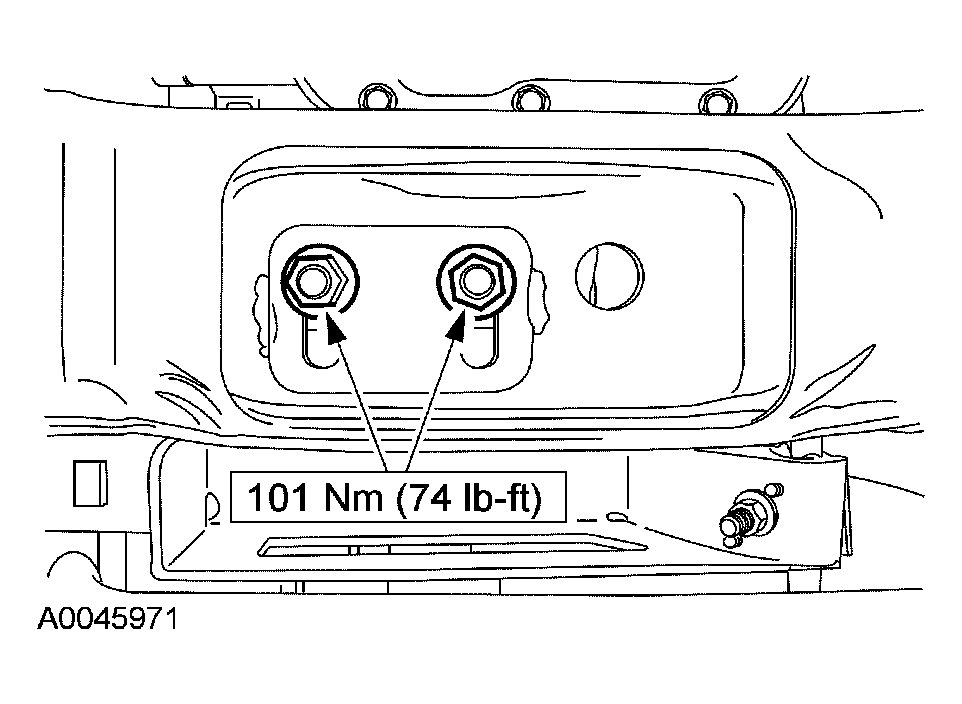

    Fig 2: Lowering Transmission Onto Crossmember And Installing Nuts
    G03964015Courtesy of FORD MOTOR CO.
