Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  3. Disconnect the RH heated oxygen sensor (HO2S) electrical connector.
    Fig 1: Disconnecting RH Heated Oxygen Sensor (HO2S) Electrical Connector
    G03888376Courtesy of FORD MOTOR CO.
  4. Using the special tool, remove the RH HO2S.
    Fig 2: Removing RH HO2S Using Special Tool
    G03888377Courtesy of FORD MOTOR CO.
  5. Remove the transmission fluid filler tube bolt from the side of the RH cylinder head.

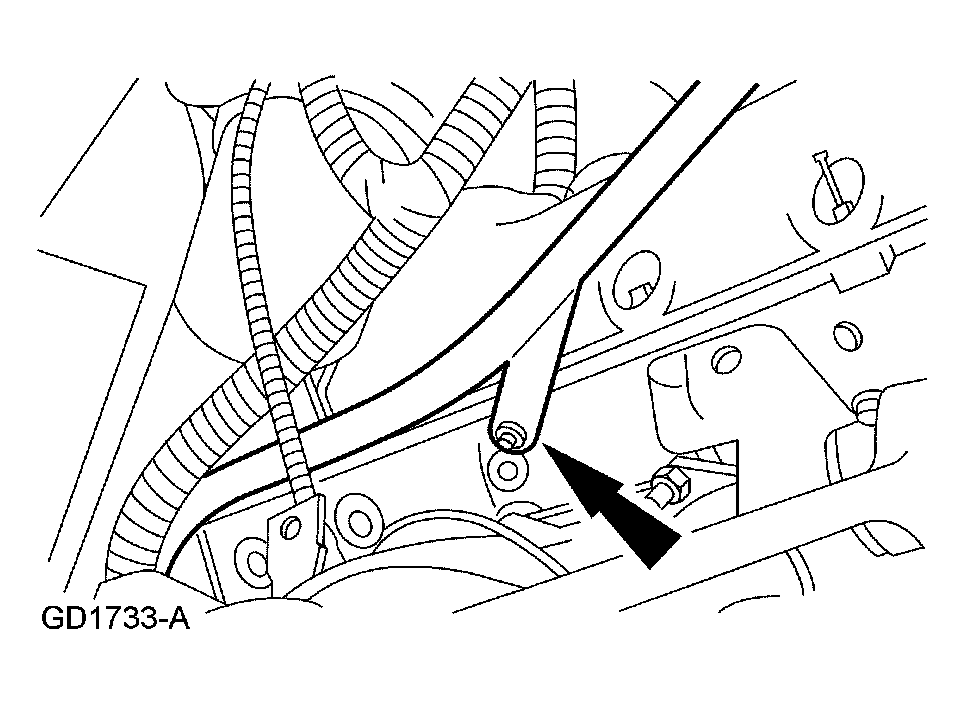

    Fig 3: Removing Transmission Fluid Filler Tube Bolt From Side Of RH Cylinder Head
    G03929665Courtesy of FORD MOTOR CO.
  6. Remove the fluid filler tube.

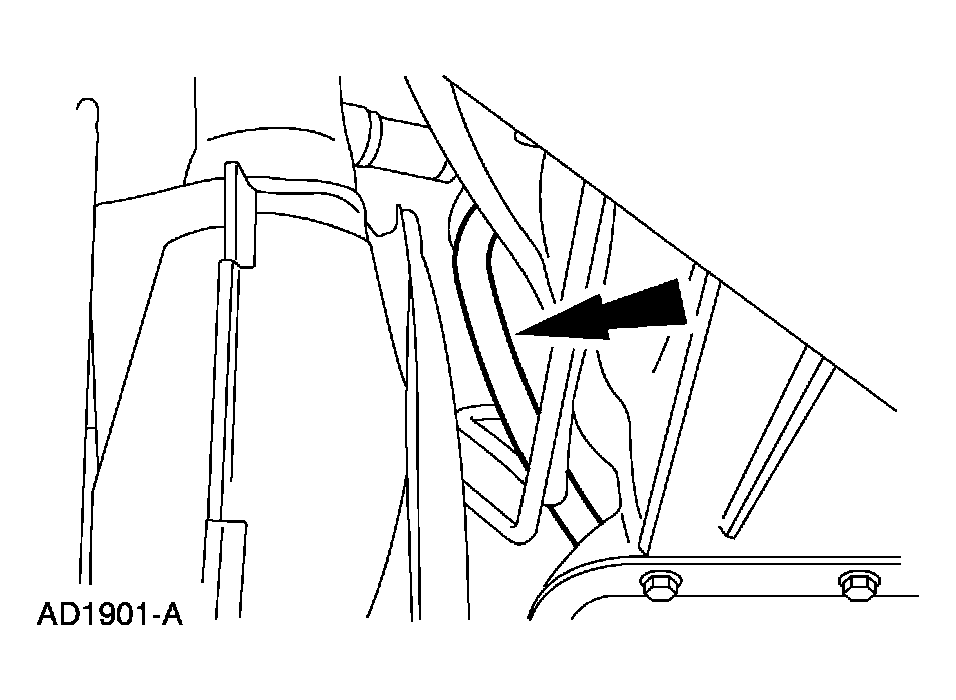

    Fig 4: Removing Fluid Filler Tube
    G03929666Courtesy of FORD MOTOR CO.
  7. To install, reverse the removal procedure.

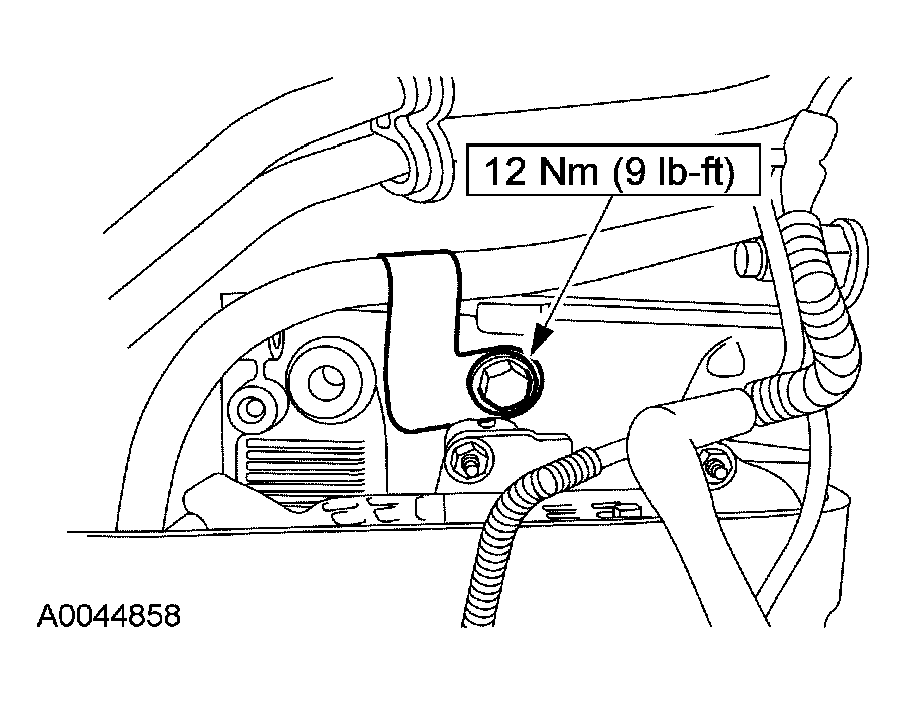

    Fig 5: Installing Fluid Filler Tube
    G03929667Courtesy of FORD MOTOR CO.
