Output Shaft Speed (OSS) Sensor: Notes

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

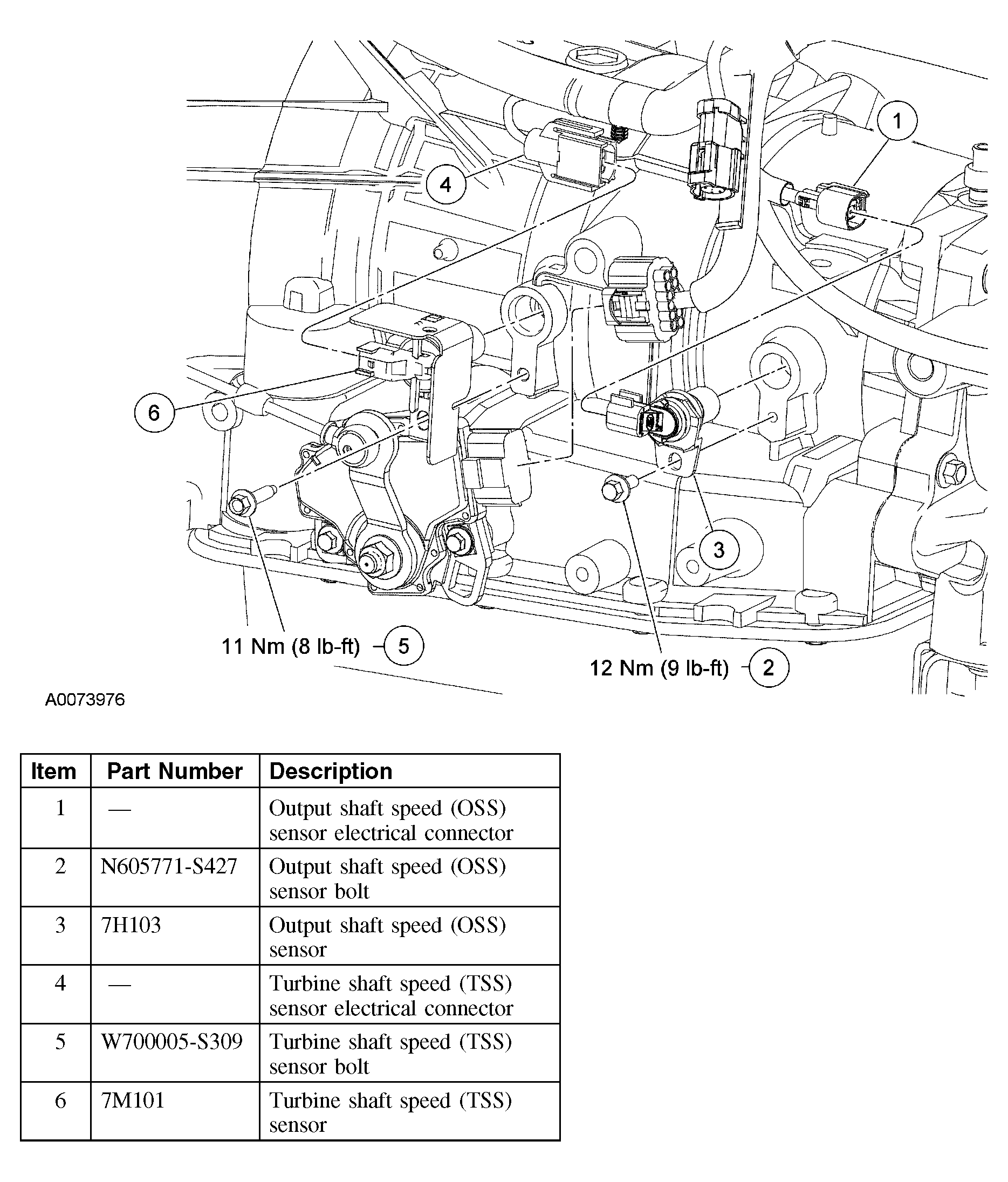

Fig 1: View Of Output Shaft Speed (OSS) Sensor
G03964017Courtesy of FORD MOTOR CO.
