Extension Housing Seal: Removal

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .

NOTE: The output shaft and driveshaft are a balanced assembly.

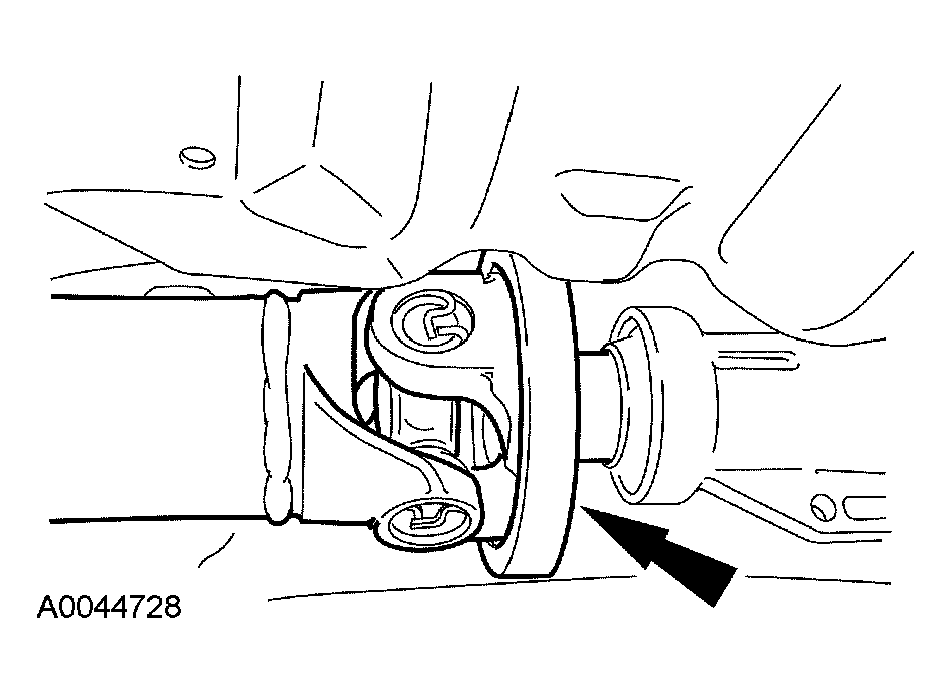

Fig 1: Marking Driveshaft Flange And Rear Pinion Flange For Correct Alignment During Assembly

Courtesy of FORD MOTOR CO.

Mark the driveshaft flange and the rear pinion flange for correct alignment during assembly.
Remove the 4 driveshaft bolts.

Fig 2: Removing Driveshaft Bolts
Courtesy of FORD MOTOR CO.
Slide the driveshaft back enough to index-mark the driveshaft, the extension housing and the output shaft. Separate the driveshaft from the transmission.

Fig 3: Sliding Driveshaft Back Enough To Index-Mark Driveshaft, Extension Housing And Output Shaft
Courtesy of FORD MOTOR CO.
Using the special tools, remove the extension housing seal.

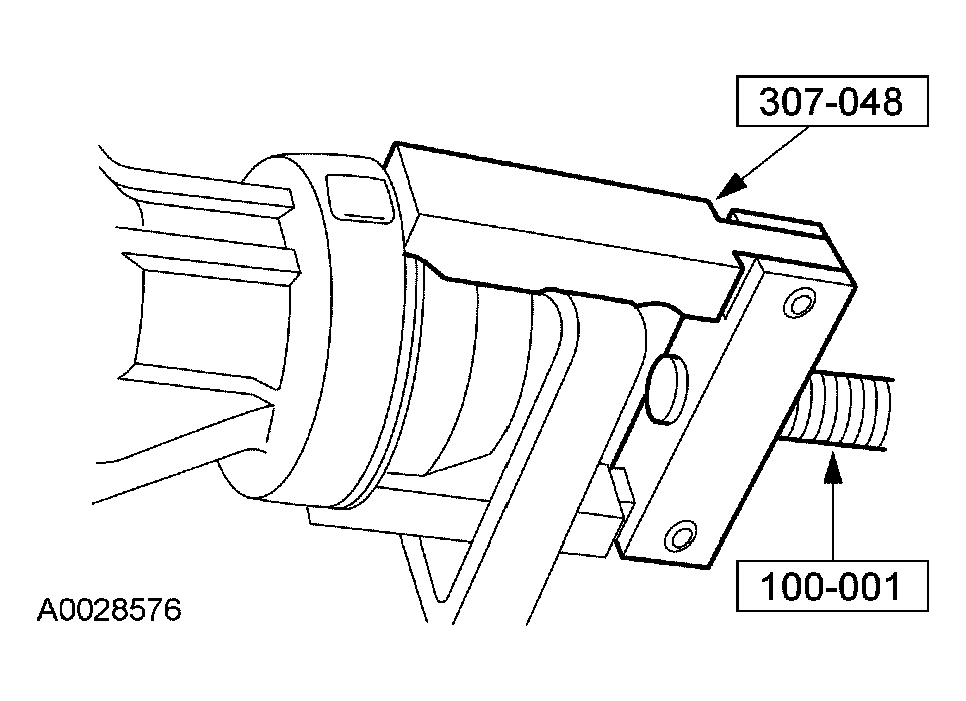

Fig 4: Using Special Tools To Remove Extension Housing Seal
Courtesy of FORD MOTOR CO.
