Extension Housing Gasket: Installation

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

    All vehicles

  1. Install the extension housing and gasket.
    1. Install the extension housing and gasket.
    2. Install the bolts.
      • Tighten to 27 Nm (20 lb-ft).
      Fig 1: Installing Extension Housing And Gasket
      G03963917Courtesy of FORD MOTOR CO.
  2. Raise and position the transmission.
  3. Position the exhaust hanger, the rear transmission insulator and install the bolts.
    • Tighten to 80 Nm (59 lb-ft).

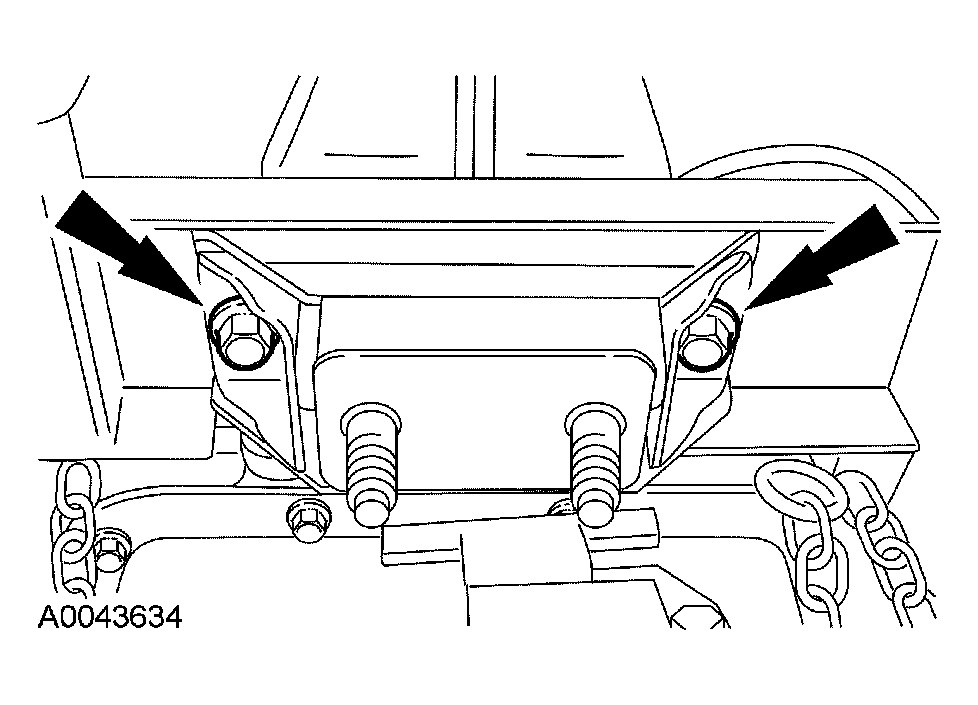

    Fig 2: Installing Rear Transmission Insulator Bolts
    G03963915Courtesy of FORD MOTOR CO.
  4. Install the exhaust bracket nut.
    • Tighten to 40 Nm (30 lb-ft).
    Fig 3: Installing Exhaust Bracket Nut
    G03963914Courtesy of FORD MOTOR CO.
  5. Position the crossmember and loosely install the transmission mount-to-crossmember nut.
    Fig 4: Loosely Installing Transmission Mount-To-Crossmember Nut
    G03963913Courtesy of FORD MOTOR CO.
  6. Install the 4 crossmember-to-frame nuts and bolts.
    • Tighten to 90 Nm (66 lb-ft).
    Fig 5: Installing Crossmember-To-Frame Nuts And Bolts
    G03964347Courtesy of FORD MOTOR CO.
  7. Lower the transmission on the crossmember and tighten the rear mount nuts.
    • Tighten to 90 Nm (66 lb-ft).
    Fig 6: Lowering Transmission On Crossmember And Tightening Rear Mount Nuts
    G03963913Courtesy of FORD MOTOR CO.
  8. Remove the high-lift transmission jack.
    Fig 7: Removing High-Lift Transmission Jack
    G03888685Courtesy of FORD MOTOR CO.
  9. Install the bolt for the LH heat shield to the transmission support crossmember.
    • Tighten to 15 Nm (11 lb-ft).
    Fig 8: Installing Bolt For LH Heat Shield To Transmission Support Crossmember
    G03964377Courtesy of FORD MOTOR CO.
  10. Install the bolt for the RH heat shield to the transmission support crossmember.
    • Tighten to 15 Nm (11 lb-ft).
    Fig 9: Installing Bolt For RH Heat Shield To Transmission Support Crossmember
    G03929683Courtesy of FORD MOTOR CO.

    11. 4x4 vehicles

  11. Install the transfer case. For additional information, refer to TRANSFER CASE .

    12. 4x2 vehicles

    NOTE: The output shaft and the driveshaft are a balanced assembly.
    Fig 10: Installing Driveshaft To Rear Differential
    G03888592Courtesy of FORD MOTOR CO.
  12. Install the driveshaft.
    • Align the yellow dots and position the driveshaft on the transmission.
    13. NOTE: To maintain driveshaft balance, install the driveshaft yoke and flange in the original position that was marked during removal.
    Fig 11: Installing Driveshaft Bolts
    G04016647Courtesy of FORD MOTOR CO.
  13. Install the 4 driveshaft bolts.
    • Tighten to 103 Nm (76 lb-ft).

    14. All vehicles

  14. Lower the vehicle.
  15. Fill the transmission with clean automatic transmission fluid.
    • Verify for correct operation.
    • Check for leaks.
