2-3 Accumulator: Installation

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the 2-3 accumulator assembly.
    1. Install the accumulator piston.
    2. Install the accumulator piston spring.
    3. Install the accumulator spring retainer.

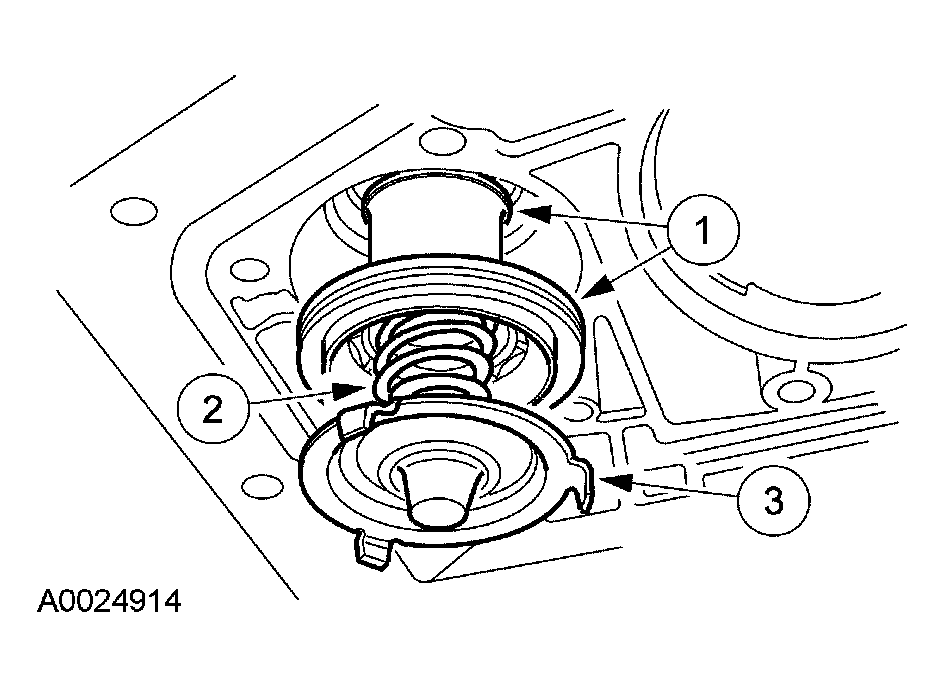

    Fig 1: Installing 2-3 Accumulator Assembly
    G03888657Courtesy of FORD MOTOR CO.
  2. Install the main control valve body. For additional information, refer to MAIN CONTROL VALVE BODY .
