1-2 Accumulator: Installation

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the 1-2 shift accumulator assembly.
    1. Install the 1-2 accumulator upper spring.
    2. Install the 1-2 accumulator piston.
    3. Install the 1-2 accumulator inner and outer springs.
    4. Install the 1-2 accumulator cover.

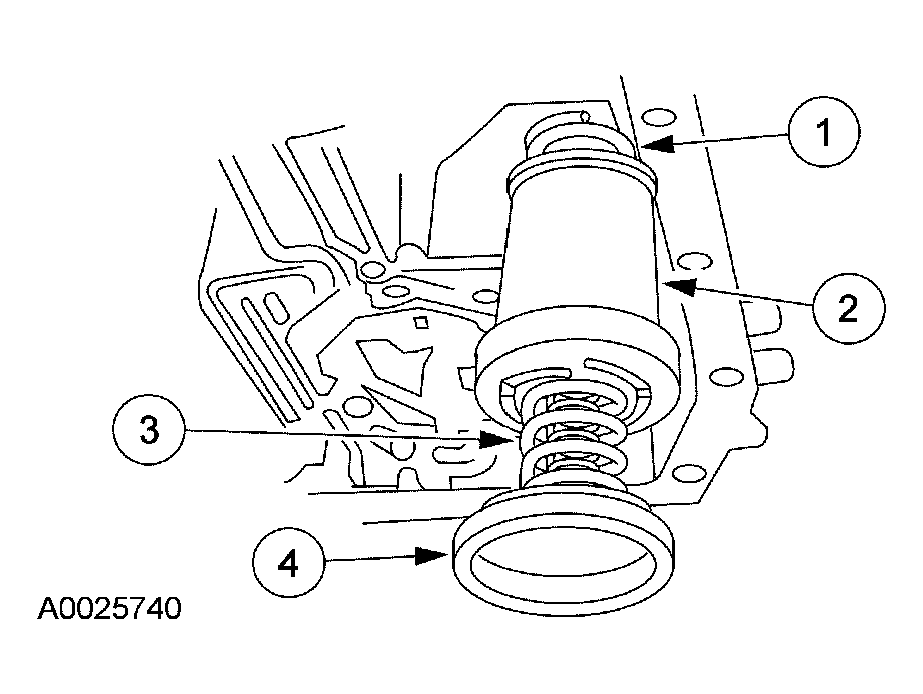

    Fig 1: Installing 1-2 Shift Accumulator Assembly
    G03888653Courtesy of FORD MOTOR CO.
  2. Compress the 1-2 accumulator piston and remove the accumulator piston retaining ring.
    Fig 2: Removing Accumulator Piston Retaining Ring
    G03888654Courtesy of FORD MOTOR CO.
