Output Shaft and Direct Clutch Cylinder: Notes

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL SPECIFICATIONS

G03915058
 Compressor, Clutch Spring 307-015 (T65L-77515-A)
G03922948
 Protector, Piston Seal 307-080 (T80L-77234-A)
G03964222
 Protector, Transmission Direct Clutch Outer Fluid Seal 307-422
G03929995
 Teflon Seal Installer 307-516 (kit consists of 307-516-1, 307-516-2, 307-516-3 and 307-516-4)
G03929996
 Protector Pilot, Seal 307-516-1
G03964225
 Protector, Seal 307-516-2
G03929998
 Assembly Pusher 307-516-3
G03964227
 Sizer, Seal 307-516-4
MATERIAL SPECIFICATIONS

Item Specification
MERCON® V Automatic Transmission Fluid XT-5-QM MERCON® V

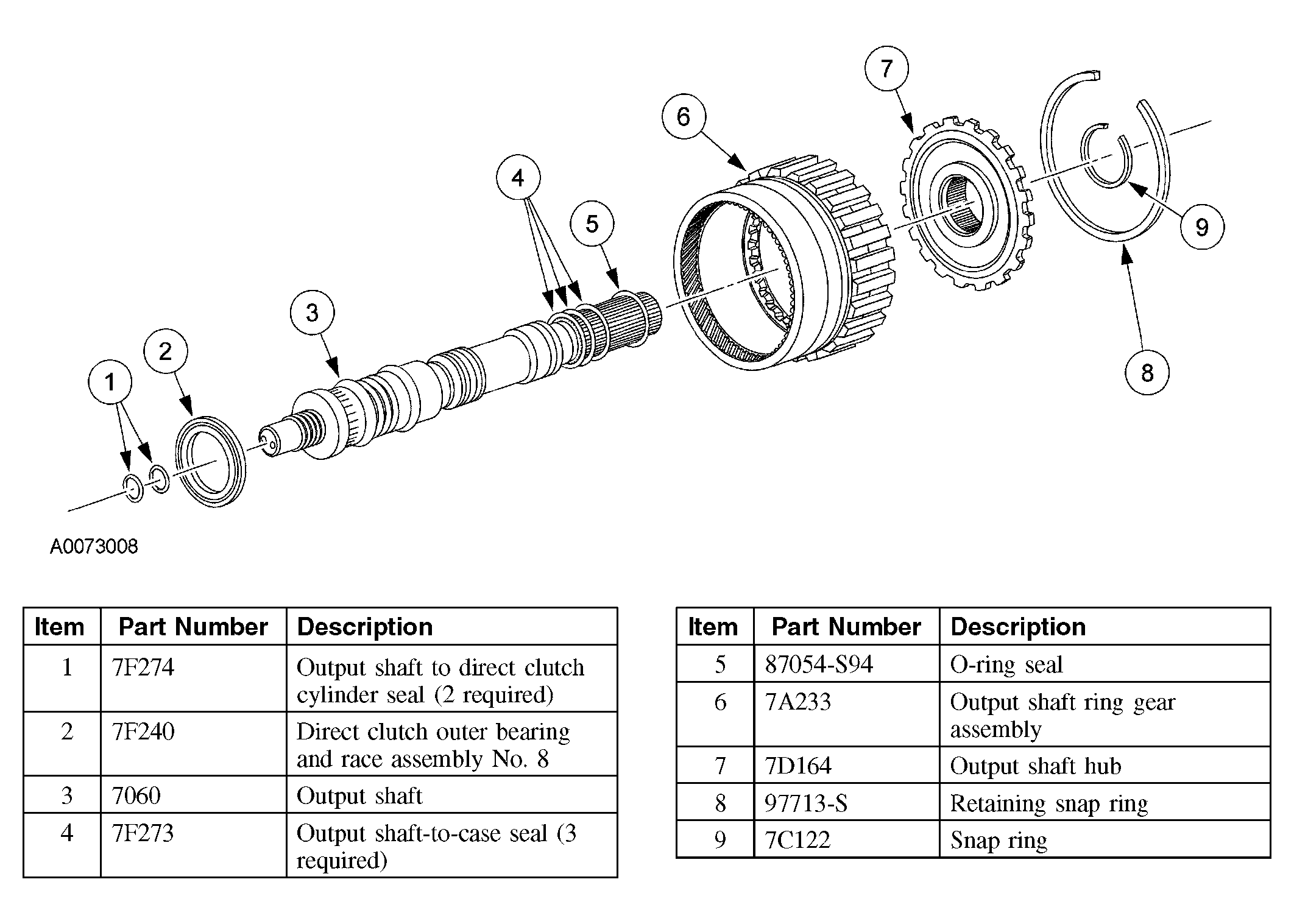

Fig 1: Exploded View Of Output Shaft And Hub
G03964228Courtesy of FORD MOTOR CO.

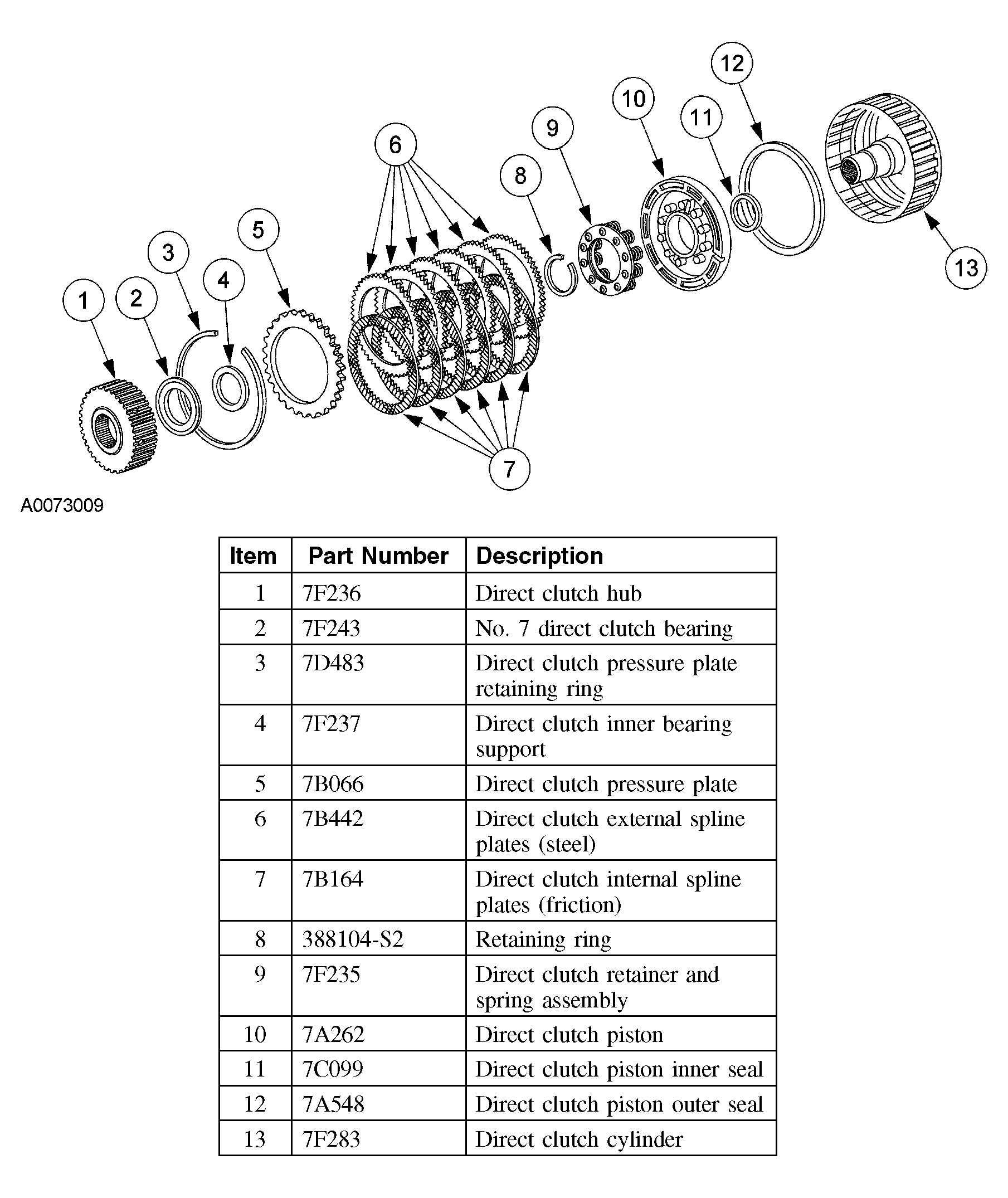

Fig 2: Exploded View Of Direct Clutch
G03964229Courtesy of FORD MOTOR CO.
