Main Control Valve Body: Assembly

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before beginning assembly, carry out and inspect the following:

When building up subassemblies and assembling the transmission, ALWAYS use new gaskets and seals.

All fasteners must be tightened to the torque specification indicated. In addition to appearing in the article, the necessary torque measurements can be found in the General Specifications Chart.

When building up subassemblies, each component part should be lubricated with clean transmission fluid. It is also good practice to lubricate the subassemblies as they are installed in the case.

Needle bearings, thrust washers and seals should be lightly coated with petroleum jelly during subassembly buildup or transmission assembly.

Many components and surfaces in the transmission are precision machined. Careful handling during disassembly, cleaning, inspection and assembly can prevent unnecessary damage to machined surfaces.

NOTE: Inspect the shift solenoid O-rings and TCC solenoid O-rings for damage.
  1. Install the valve body cover plate.
    1. Position the valve body cover plate gasket and cover plate.
    2. Loosely install the 2 guide pin bolts.
    3. Loosely install the remaining bolts.
    Fig 1: Installing Valve Body Cover Plate
    G03888760Courtesy of FORD MOTOR CO.
  2. Tighten all the bolts in the sequence shown.
    Fig 2: Tightening Bolts In Sequence
    G03888761Courtesy of FORD MOTOR CO.
  3. Install the 8 coasting booster valve shuttle balls.

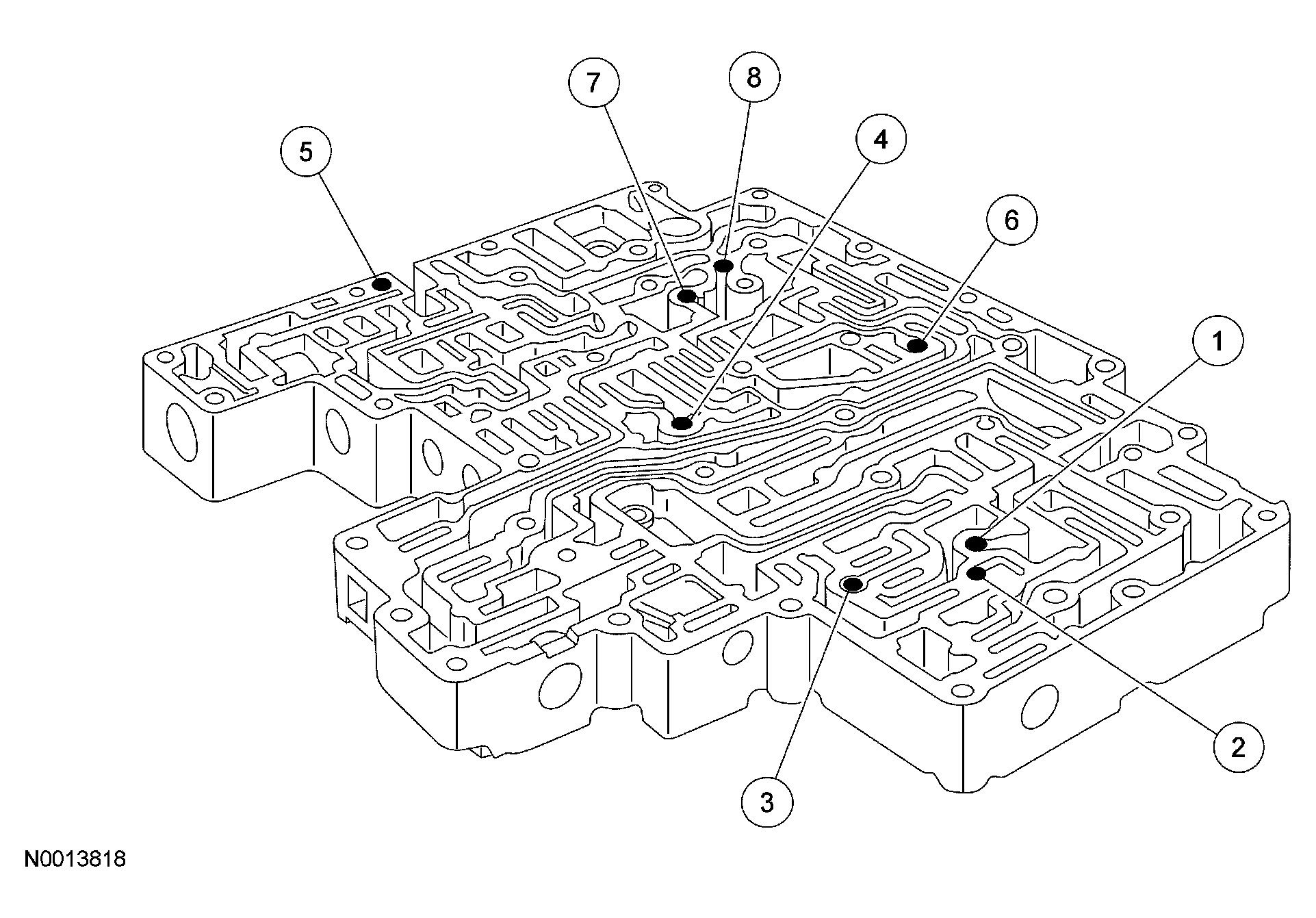

    Fig 3: Installing Coasting Booster Valve Shuttle Balls
    G03929914Courtesy of FORD MOTOR CO.
  4. Install the converter drain back valve and solenoid pressure supply screen.
    Fig 4: Installing Converter Drain Back Valve And Solenoid Pressure Supply Screen
    G04584550Courtesy of FORD MOTOR CO.
  5. Install the separator plate and gaskets.
    Fig 5: Installing Separator Plate And Gaskets
    G03888756Courtesy of FORD MOTOR CO.
  6. Install the 2 reinforcement plates.
    1. Position the plates.
    2. Install the reinforcement plate bolts.
    Fig 6: Installing Reinforcement Plates
    G03888765Courtesy of FORD MOTOR CO.
  7. Install the shift solenoid.
    1. Position the TCC solenoid.
    2. Position the shift solenoid.
    3. Install the bolt.
    Fig 7: Installing Shift Solenoid
    G03888766Courtesy of FORD MOTOR CO.
