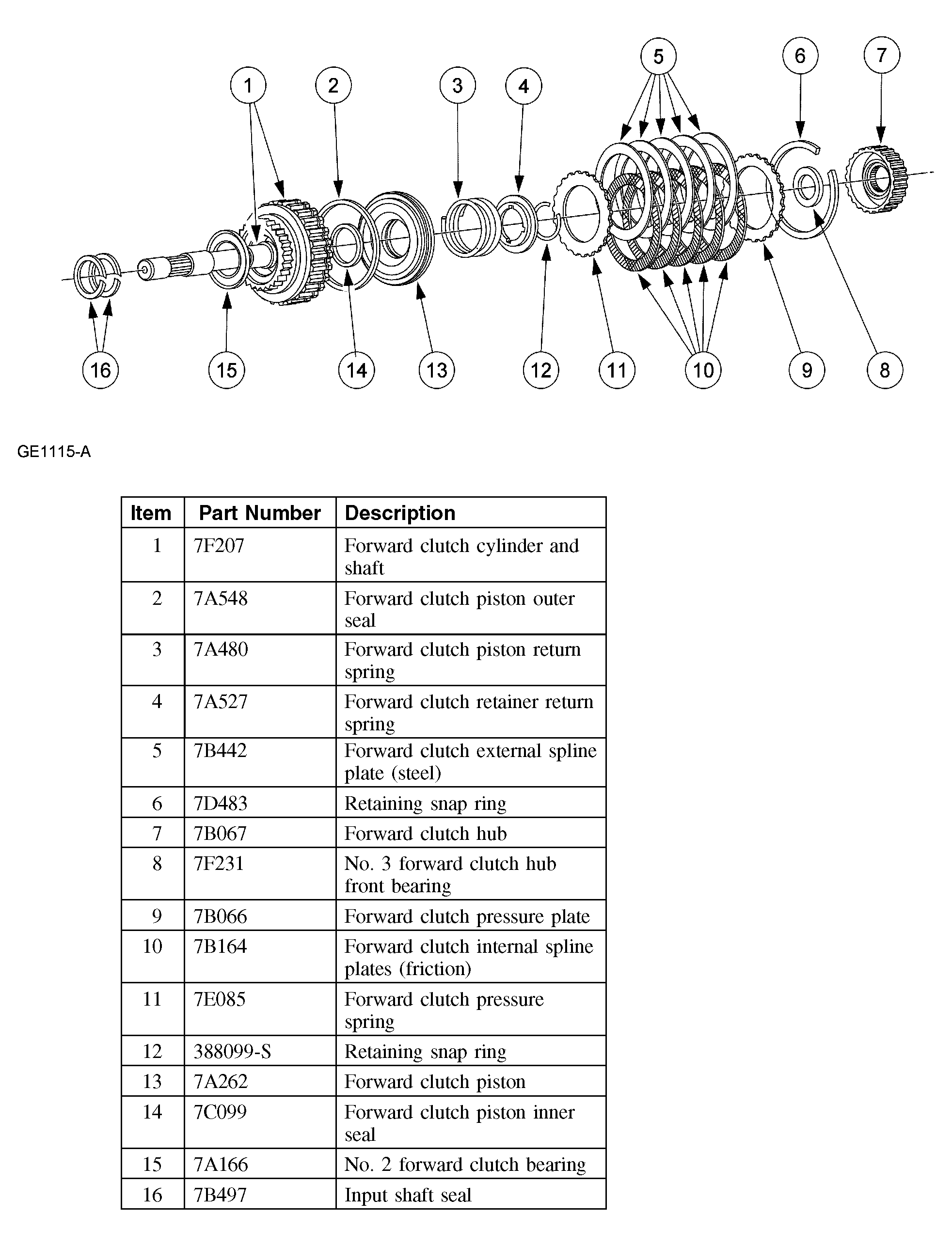

Forward Clutch Cylinder: Notes
WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL SPECIFICATIONS
| Dial Indicator Gauge with Holding Fixture 100-002 (TOOL-4201-C) or equivalent | |
| Compressor, Clutch Spring 307-096 (T81P-70235-A) | |
| Protector, Piston Seal 307-020 (T68P-7D158-A2) | |
| Protector, Piston Seal 307-078 (T80L-77140-A) |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM | MERCON® V |
