Pinpoint Test C: Digital Transmission Range (Tr) Sensor

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to the Digital Transmission Range (TR) Sensor Connector illustration preceding these pinpoint tests.
NOTE: Refer to the DIGITAL TRANSMISSION RANGE (TR) SENSOR DIAGNOSIS CHART  preceding these pinpoint tests.
  1. C1 VERIFY DIAGNOSTIC TROUBLE CODES
    • Select PARK.
    • Key in OFF position.
      • NOTE: DTC codes P0705 and P0708 cannot be set by an incorrectly adjusted digital TR sensor.
    • Carry out on-board diagnostic test.
    • Are only DTC codes P0705, P0708 present?
    • Yes  : GO to  C4.
    • No  : GO to C2.
  2. C2 VERIFY DIGITAL TRANSMISSION RANGE SENSOR ALIGNMENT
    • Check to make sure the digital TR sensor harness connector is fully seated, pins are fully engaged in connector and in good condition before proceeding.
    • Apply the parking brake.
    • Select NEUTRAL.
    • Disconnect the shift cable/linkage from the manual lever.
    • Verify that the TR Sensor Alignment Gauge fits in the appropriate slots.
    • Is the digital TR sensor adjustment OK?
    • Yes  : GO to C3.
    • No  : ADJUST the digital TR sensor. PLACE transmission range selector lever in P and CLEAR DTCs. REPEAT OBD Tests. GO to C3.
  3. C3 VERIFY SHIFT CABLE/LINKAGE ADJUSTMENT
    • Place the manual lever in the OVERDRIVE position.
    • Select DRIVE.
    • Reconnect the shift cable/linkage.
    • Verify that the shift cable/linkage is adjusted OK.
    • Is the shift cable/linkage adjusted OK?
  4. C4 CHECK ELECTRICAL SIGNAL OPERATION
    • Select PARK.
    • Disconnect: Digital TR Sensor.
      CAUTION: Do not pry on connector. This will damage the connector and result in a transmission concern.

      Press the button and pull out on the digital TR harness connector.

    • Inspect both ends of the connector for damage or pushed-out pins, corrosion, loose wires and missing or damaged seals.
    • Are the connector, pins and harness damaged?
    • Yes  : REPAIR as required. CLEAR DTCs and REPEAT OBD Tests.
    • No  : If diagnosing a DTC, GO to C5. If diagnosing a starting concern or a reversing lamp concern, GO to  C10.
  5. C5 CHECK ELECTRICAL SYSTEM OPERATION (DIGITAL TR AND PCM)
    • Key in OFF position.
    • Connect the scan tool.
    • Connect: Digital TR Sensor.
    • Key in ON position.
    • Enter the following diagnostic mode on the scan tool: TR PIDS TR, TR___D, TR___V.
    • Move transmission range selector lever into each gear and stop.
    • Observe any of the following PIDs, TR and TR___D, TR___V (vehicle dependent) while wiggling harness, tapping on sensor or driving the vehicle. Use PIDs TR and TR___D for DTCs P0705, P1704 and P1705. Use PIDs TR and TR___V for DTC P0708. Compare the PIDs to the Digital Transmission Range (TR) Sensor Diagnosis Chart.
    • Do the PIDs TR, TR___D and TR___V match the Digital Transmission Range (TR) Sensor Diagnosis chart and does the TR___D PID remain steady when the harness is wiggled, the sensor is tapped or the vehicle driven?
    • Yes  : The problem is not in the digital TR sensor system. REFER to DIAGNOSIS BY SYMPTOM  for further diagnosis.
    • No  : If TR___D changes when wiggling harness, tapping on the sensor or driving the vehicle, the problem may be intermittent. GO to C6.
  6. C6 CHECK DIGITAL TRANSMISSION RANGE SENSOR OPERATION
    • Disconnect: Digital TR Sensor.
      CAUTION: Do not pry on the connector. This will damage the connector and result in a transmission concern.
    • Connect: TR-E Cable to Transmission Tester.
    • Connect: TR-E Cable to Digital TR Sensor.
    • Place the Digital TR Overlay onto Transmission Tester.
    • Carry out Sensor Test as instructed on the Digital TR Overlay.
    • Does the status lamp on the tester TRS-E cable match the selected gear positions?
    • Yes  : Concern is not in the digital TR sensor, GO to C7.
    • No  : INSTALL a new digital TR sensor. CLEAR DTCs and REPEAT OBD Tests.
  7. C7 CHECK THE PCM HARNESS CIRCUITS FOR OPENS
    • Key in OFF position.
    • Disconnect: Powertrain Control Module (PCM).
    • Inspect for damaged or pushed-out pins, corrosion or loose wires.
    • Disconnect: Digital TR Sensor.
      CAUTION: Do not pry on the connector. This will damage the connector and result in a transmission concern.

      Disconnect the digital TR sensor connector.

    • Measure the resistance between PCM test pin 43 and signal return circuit pin 2 at digital TR sensor connector harness side.
      Fig 1: Measuring Resistance Between PCM Test Pin 43 And Signal Return Circuit Pin 2 At Digital TR Sensor Connector Harness Side
      G03929587Courtesy of FORD MOTOR CO.
    • Measure the resistance between PCM test pin 17 and TR1 circuit pin 4 at digital TR sensor connector harness side.
      Fig 2: Measuring Resistance Between PCM Test Pin 17 And TR1 Circuit Pin 4 At Digital TR Sensor Connector Harness Side
      G03929588Courtesy of FORD MOTOR CO.
    • Measure the resistance between PCM test pin 18 and TR2 circuit pin 5 at digital TR sensor connector harness side.
      Fig 3: Measuring Resistance Between PCM Test Pin 18 And TR2 Circuit Pin 5 At Digital TR Sensor Connector Harness Side
      G03929589Courtesy of FORD MOTOR CO.
    • Measure the resistance between PCM test pin 32 and TR4 circuit pin 6 at digital TR sensor connector harness side.
      Fig 4: Measuring Resistance Between PCM Test Pin 32 And TR4 Circuit Pin 6 At Digital TR Sensor Connector Harness Side
      G03929590Courtesy of FORD MOTOR CO.
    • Measure the resistance between PCM test pin 19 and TR3A circuit pin 3 at digital TR sensor connector harness side.
      Fig 5: Measuring Resistance Between PCM Test Pin 19 And TR3A Circuit Pin 3 At Digital TR Sensor Connector Harness Side
      G03929591Courtesy of FORD MOTOR CO.
    • Are all resistances less than 5 ohms?
    • Yes  : GO to C8.
    • No  : REPAIR open circuit(s). RECONNECT all components. CLEAR DTCs. REPEAT OBD Tests.
  8. C8 CHECK THE PCM HARNESS CIRCUITS FOR A SHORT TO GROUND OR POWER
    • Measure the resistance between PCM test pin 43 and chassis ground.
      Fig 6: Measuring Resistance Between PCM Test Pin 43 And Chassis Ground
      G03929592Courtesy of FORD MOTOR CO.
    • Measure the resistance between PCM test pin 17 and chassis ground.
      Fig 7: Measuring Resistance Between PCM Test Pin 17 And Chassis Ground
      G03888492Courtesy of FORD MOTOR CO.
    • Measure the resistance between PCM test pin 18 and chassis ground.
      Fig 8: Measuring Resistance Between PCM Test Pin 18 And Chassis Ground
      G03929594Courtesy of FORD MOTOR CO.
    • Measure the resistance between PCM test pin 32 and chassis ground.
      Fig 9: Measuring Resistance Between PCM Test Pin 32 And Chassis Ground
      G03929595Courtesy of FORD MOTOR CO.
    • Measure the resistance between PCM test pin 19 and chassis ground.
      Fig 10: Measuring Resistance Between PCM Test Pin 19 And Chassis Ground
      G03929596Courtesy of FORD MOTOR CO.
    • Are all resistances greater than 10,000 ohms?
    • Yes  : GO to C9.
    • No  : REPAIR short circuit(s). RECONNECT all components. CLEAR DTCs. REPEAT OBD Tests.
  9. C9 CHECK FOR A SHORT BETWEEN THE TR/PCM INPUT SIGNAL CIRCUITS
    • Measure the resistance between PCM test pin 17 and PCM test pins 18, 19 and 32.

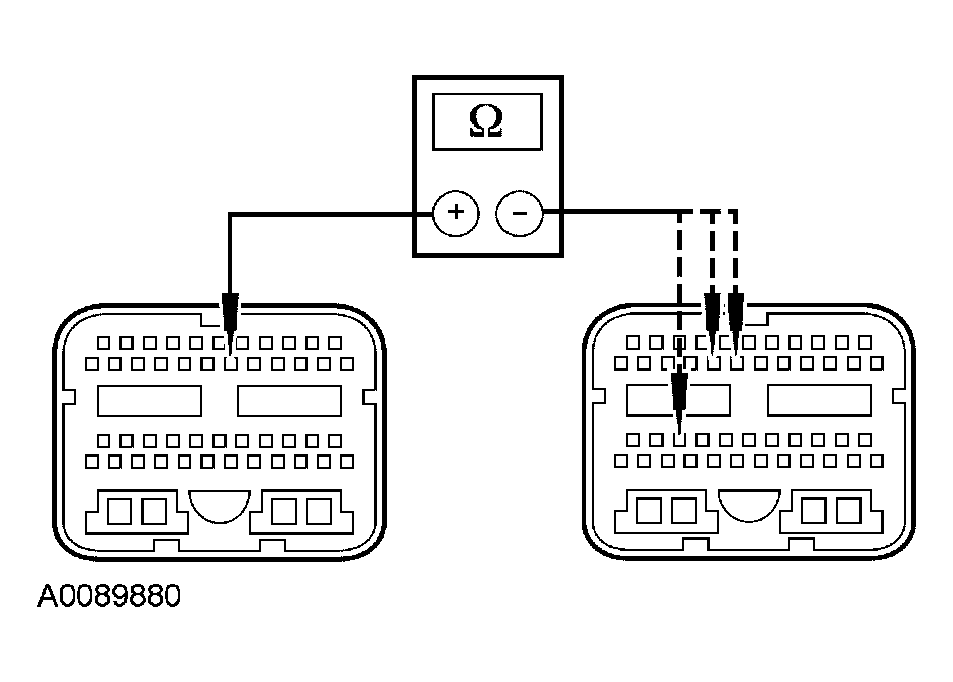

      Fig 11: Measuring Resistance Between PCM Test Pin 17 And PCM Test Pins 18, 19 And 32
      G03929597Courtesy of FORD MOTOR CO.
    • Measure the resistance between PCM test pin 18 and PCM test pins 17, 19 and 32.

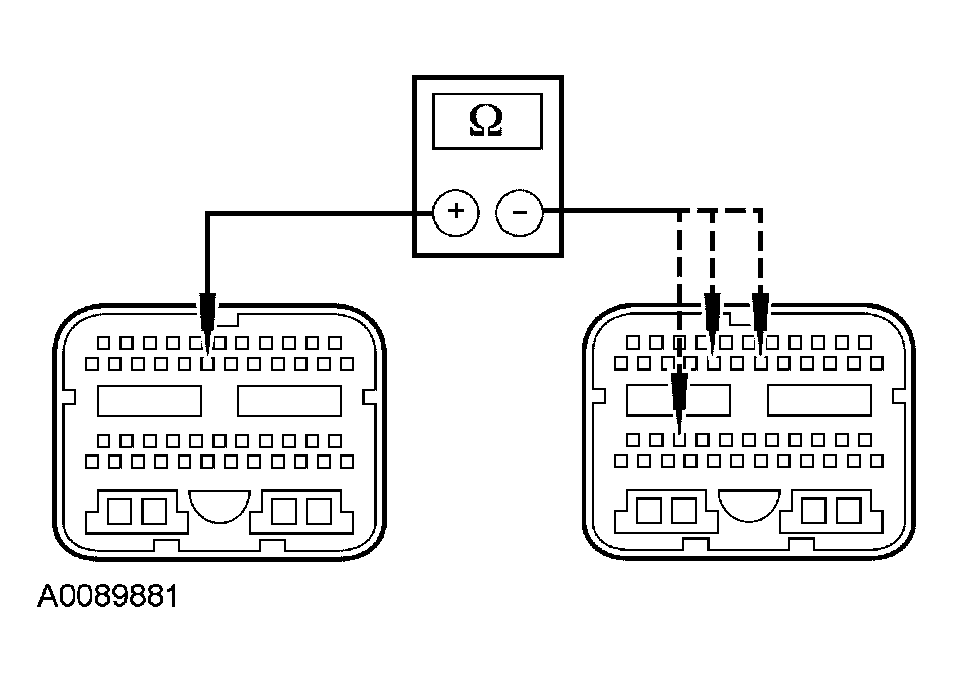

      Fig 12: Measuring Resistance Between PCM Test Pin 18 And PCM Test Pins 17, 19 And 32
      G03929598Courtesy of FORD MOTOR CO.
    • Measure the resistance between PCM test pin 19 and PCM test pins 17, 18 and 32.

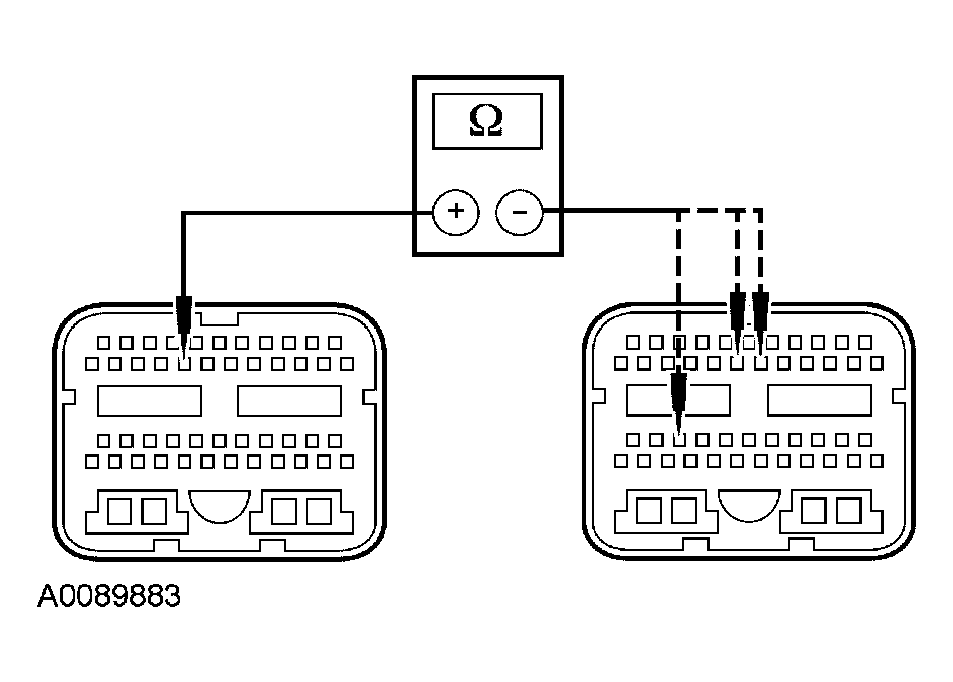

      Fig 13: Measuring Resistance Between PCM Test Pin 19 And PCM Test Pins 17, 18 And 32
      G03929599Courtesy of FORD MOTOR CO.
    • Measure the resistance between PCM test pin 32 and PCM test pins 17, 18 and 19.

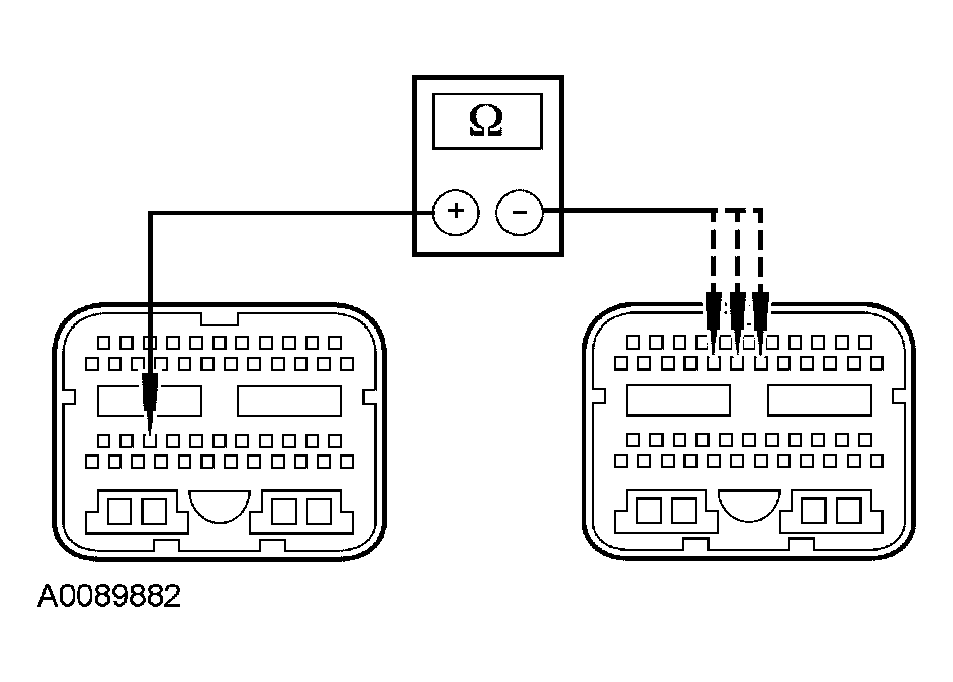

      Fig 14: Measuring Resistance Between PCM Test Pin 32 And PCM Test Pins 17, 18 And 19
      G03929600Courtesy of FORD MOTOR CO.
    • Are all the resistances greater than 10,000 ohms?
  10. C10 CHECK THE NON-PCM INTERNAL CIRCUITS OF SENSOR
    • Connect: TRS-E Cable to Transmission Tester.
    • Connect: TRS-E Cable to Digital TR Sensor.
    • Place the Digital TR Overlay onto Transmission Tester.
    • Carry out Switch Test as instructed on the Digital TR Overlay.
    • Does the status lamp on the tester indicate RED for the correct gear position?
