Disassembled Views

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Automatic Transmission - Disassembled View

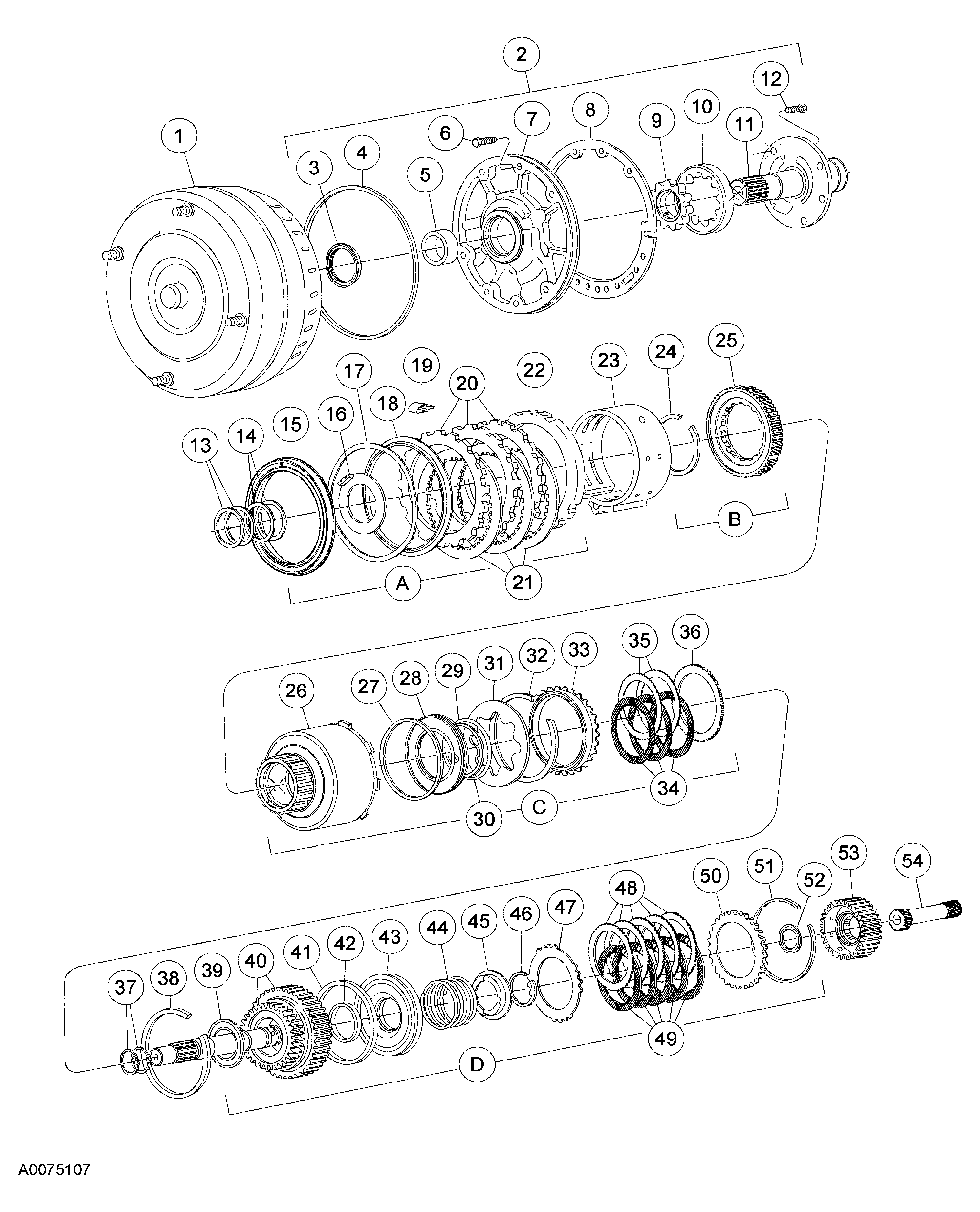

Fig 1: Identifying Automatic Transmission - Disassembled View (1 Of 2)

Courtesy of FORD MOTOR CO.

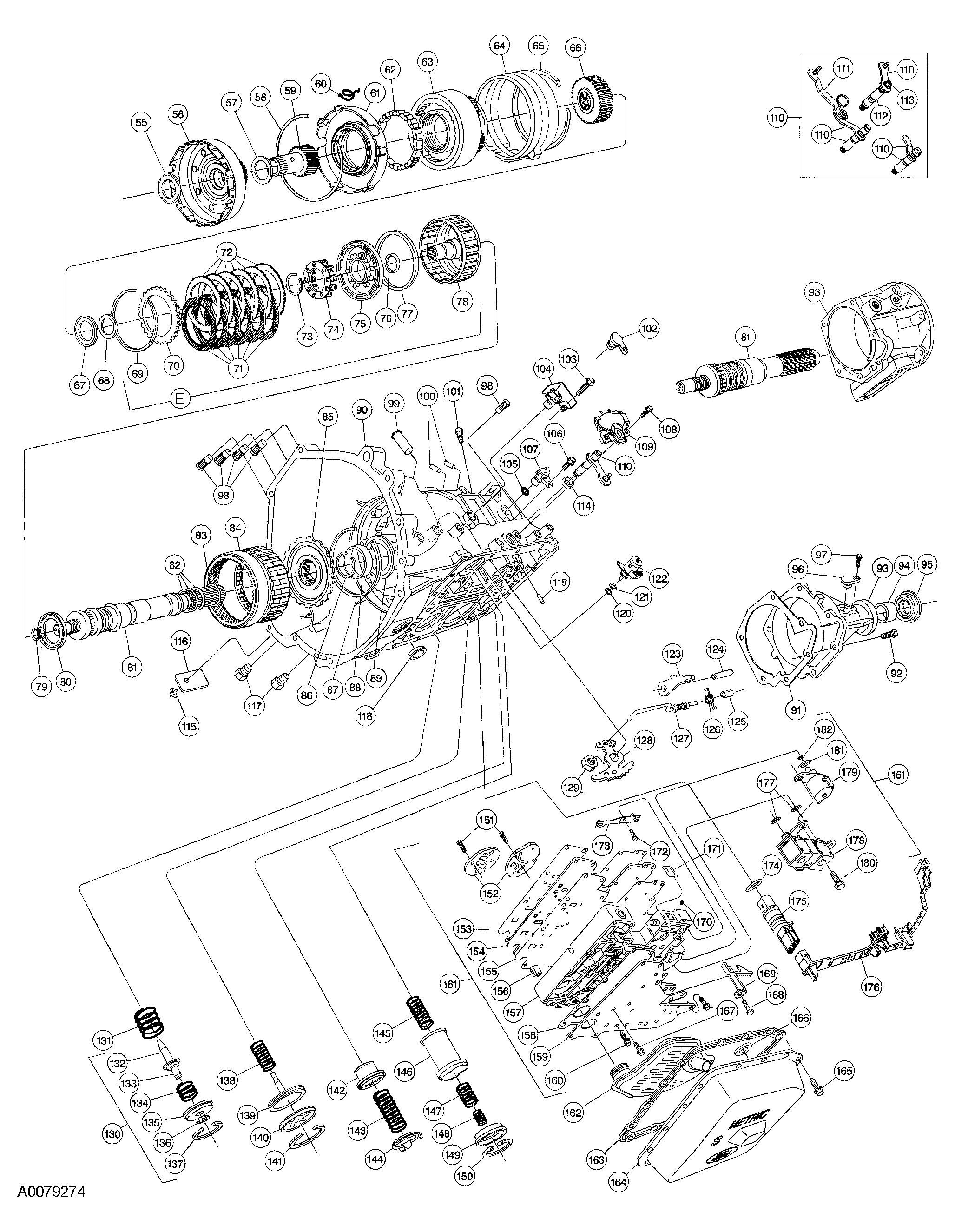

Fig 2: Identifying Automatic Transmission - Disassembled View (2 Of 2)

Courtesy of FORD MOTOR CO.

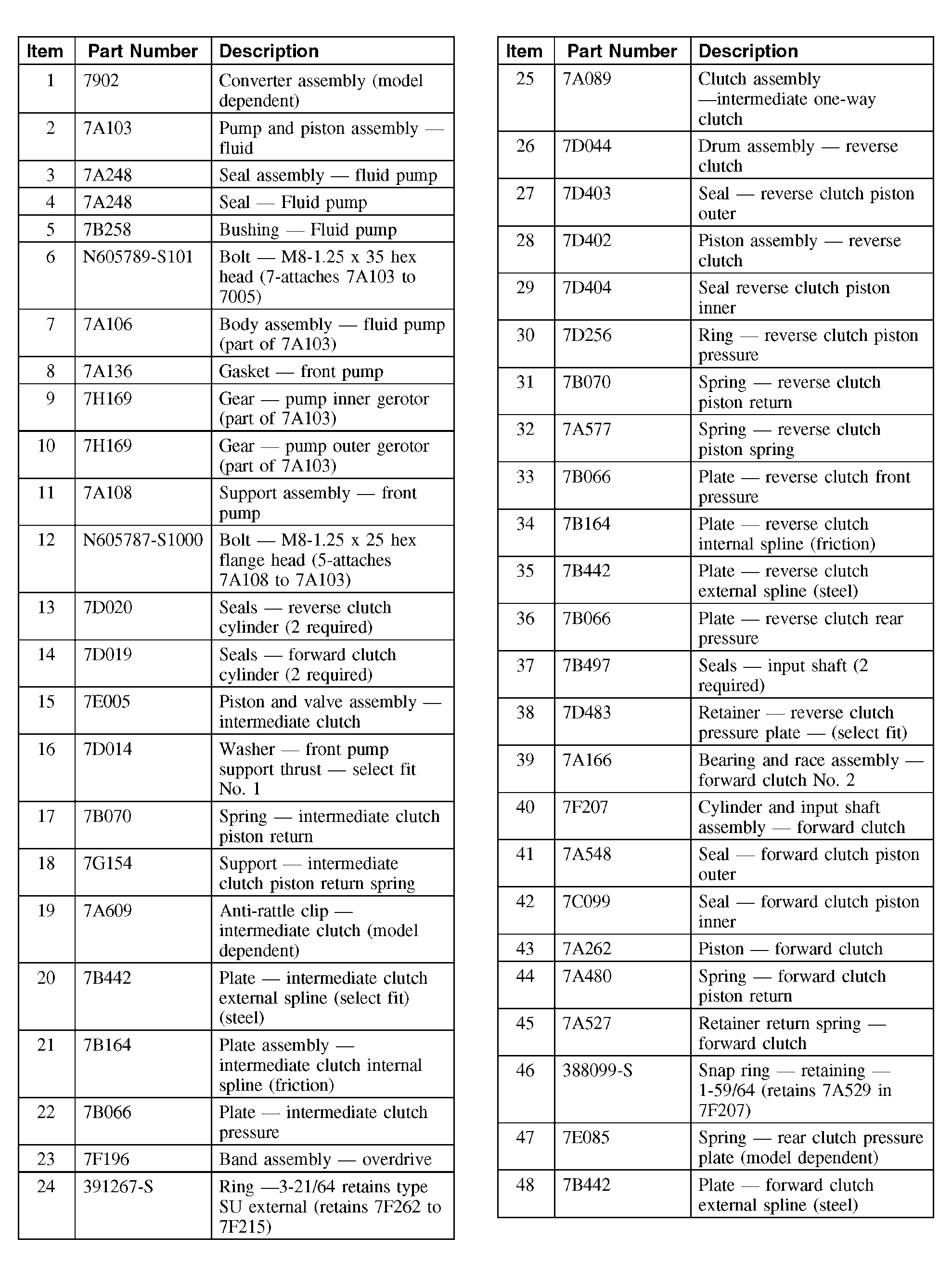

Fig 3: Automatic Transmission Components Description Chart (Items 1-48)

Courtesy of FORD MOTOR CO.

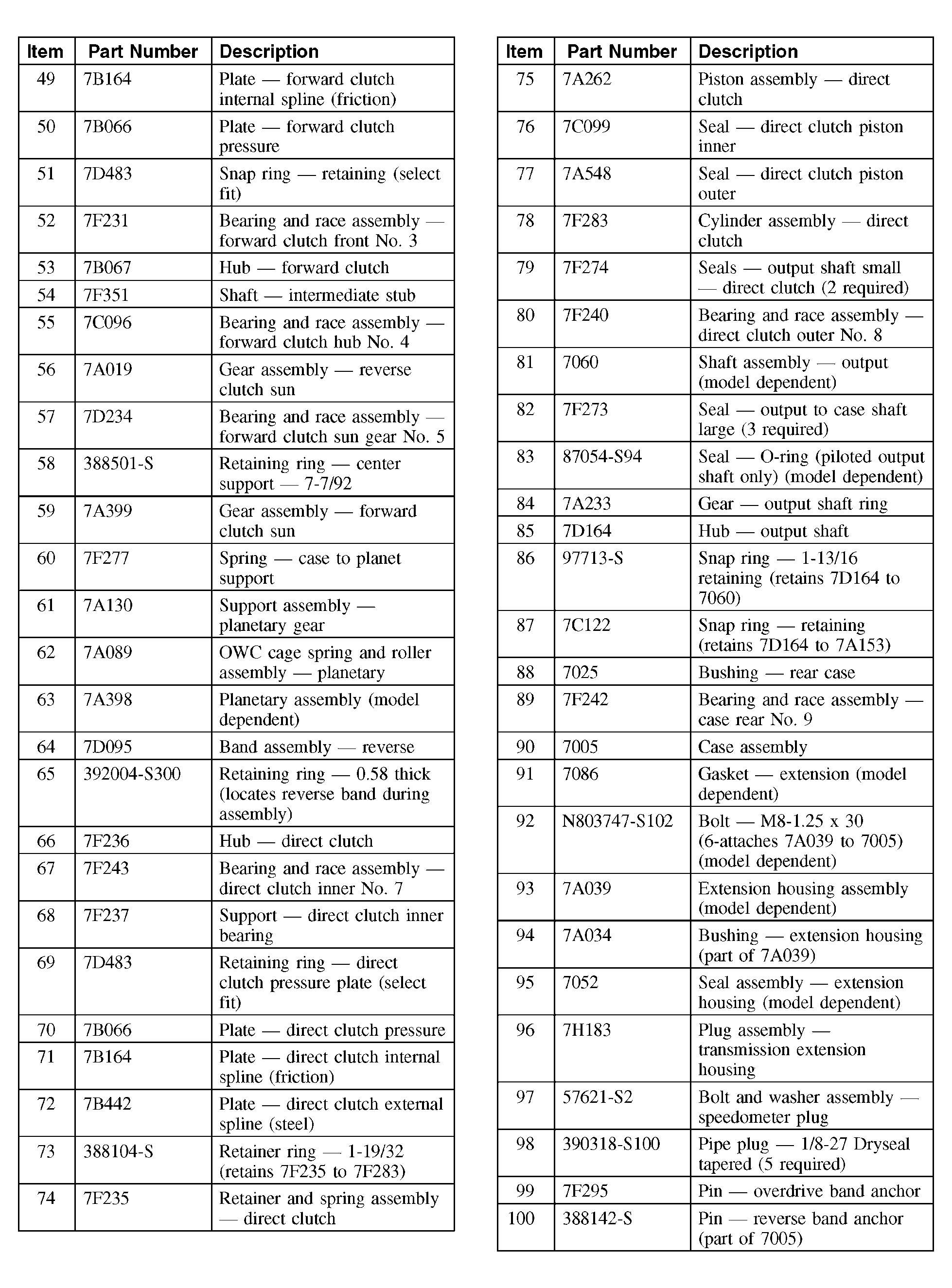

Fig 4: Automatic Transmission Components Description Chart (Items 49-100)

Courtesy of FORD MOTOR CO.

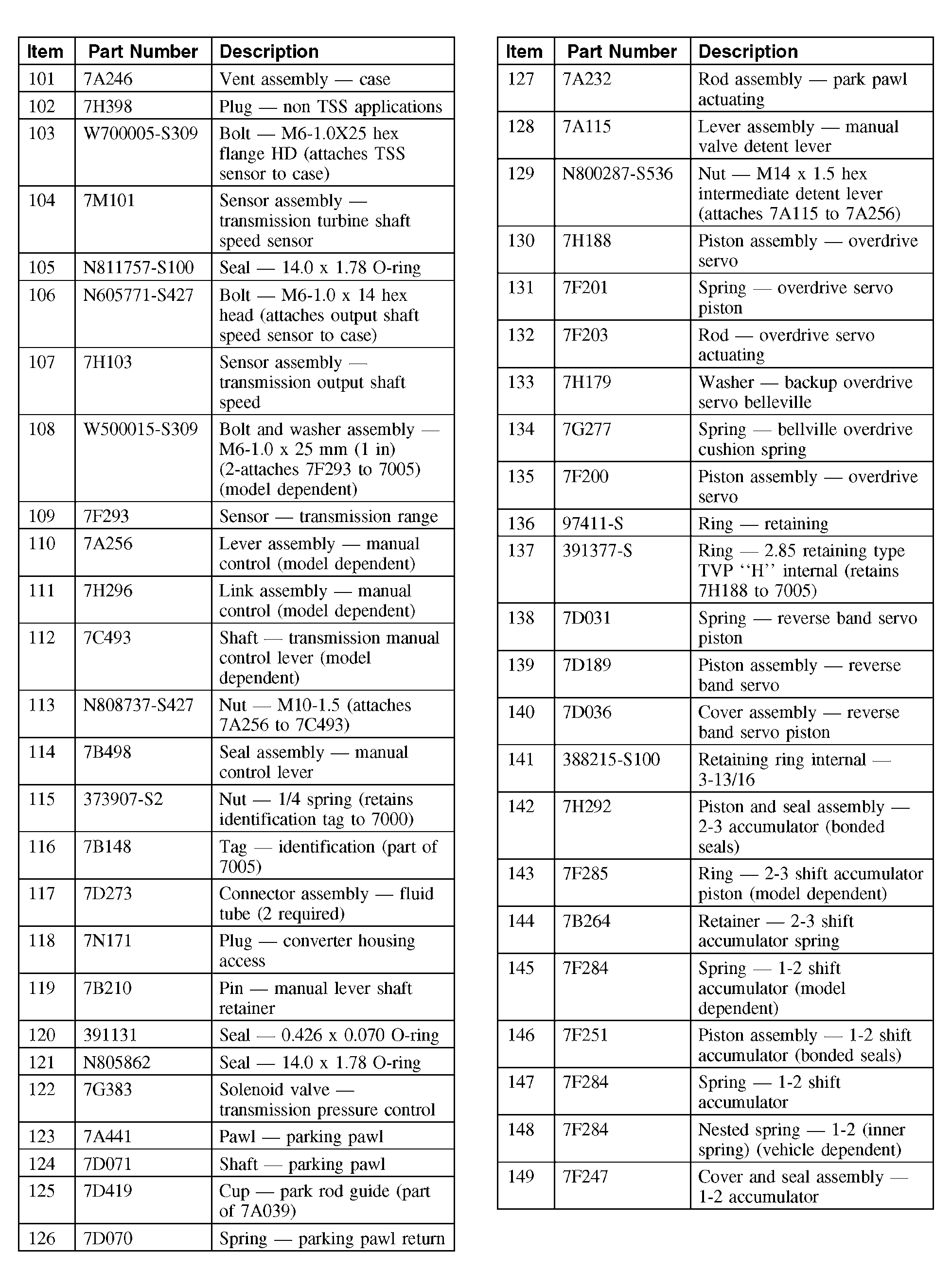

Fig 5: Automatic Transmission Components Description Chart (Items 101-149)

Courtesy of FORD MOTOR CO.

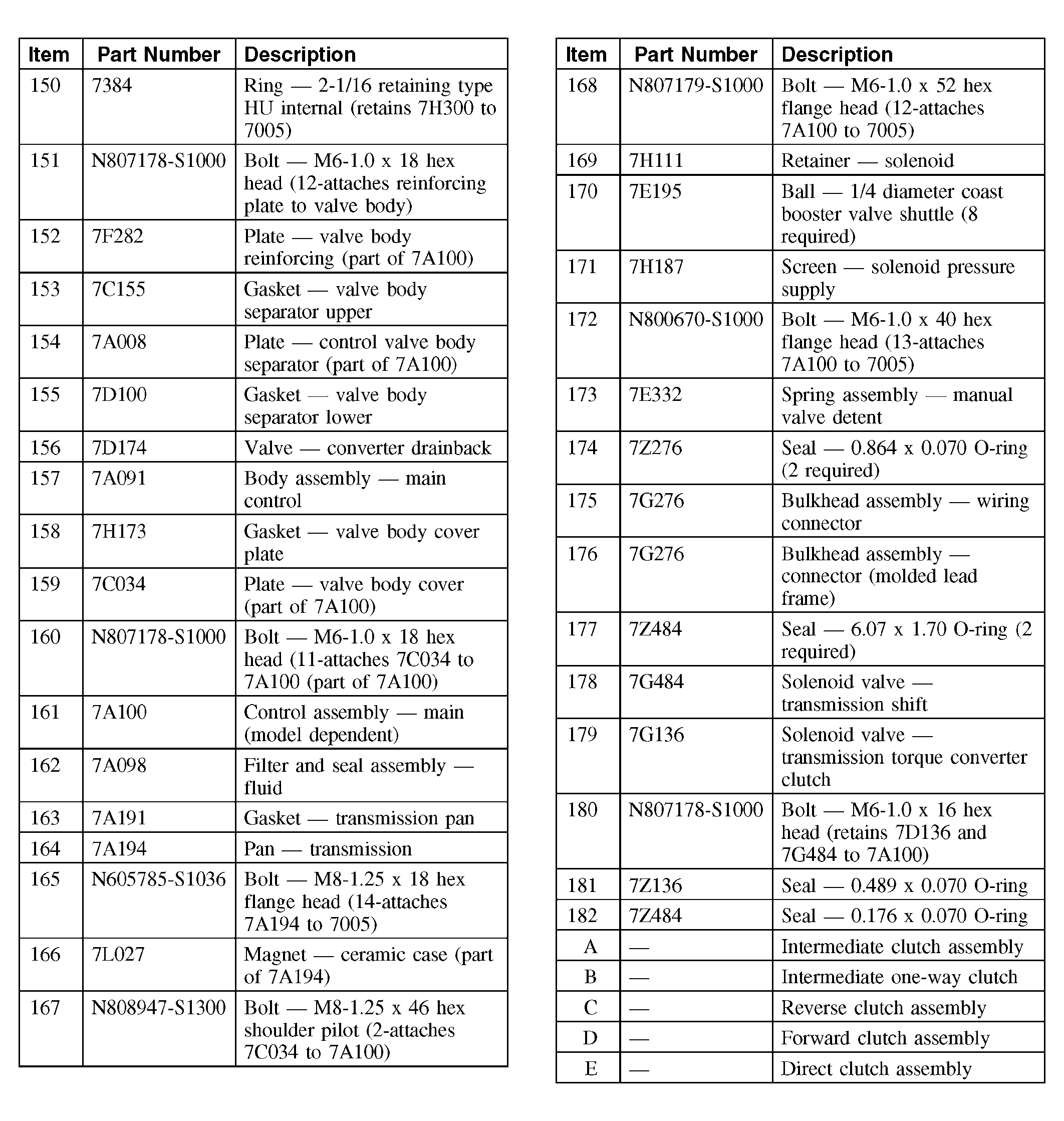

Fig 6: Automatic Transmission Components Description Chart (Items 150-182/A-E)

Courtesy of FORD MOTOR CO.
