Oil Pan: Installation

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

    All vehicles

    CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.
  1. Inspect the oil pan. Clean the mating surface for the oil pan with silicone gasket remover and metal surface prep. Follow the directions on the packaging.
    2. NOTE: If not secured within 4 minutes, the sealant must be removed and the sealing area cleaned with silicone gasket remover and metal surface prep. Follow the directions on the packaging. Allow to dry until there is no sign of wetness, or 4 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.
    Fig 1: Applying Silicone Gasket And Sealant At Crankshaft Rear Seal Retainer Plate-To-Cylinder Block Sealing Surface
    G04583522Courtesy of FORD MOTOR CO.
  2. Apply silicone gasket and sealant at the crankshaft rear seal retainer plate-to-cylinder block sealing surface.
    3. NOTE: If not secured within 4 minutes, the sealant must be removed and the sealing area cleaned with silicone gasket remover and metal surface prep. Follow the directions on the packaging. Allow to dry until there is no sign of wetness, or 4 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.
    Fig 2: Applying Silicone Gasket And Sealant At Engine Front Cover-To-Cylinder Block Sealing Surface
    G03920465Courtesy of FORD MOTOR CO.
  3. Apply silicone gasket and sealant at the engine front cover-to-cylinder block sealing surface.
  4. Install the oil pan gasket and the oil pan and loosely install the 16 bolts.
    Fig 3: Installing Oil Pan Gasket And Oil Pan
    G03885989Courtesy of FORD MOTOR CO.
  5. Tighten the bolts in 3 stages, in the sequence shown.
    • Stage 1: Tighten to 2 Nm (18 lb-in).
    • Stage 2: Tighten to 20 Nm (15 lb-ft).
    • Stage 3: Tighten an additional 60 degrees.
    Fig 4: Identifying Tightening Sequence For Oil Pan Bolts
    G03920110Courtesy of FORD MOTOR CO.

    6. 4WD vehicles

    CAUTION: Use care when positioning the front axle housing, or the vacuum lines to the axle solenoid may become disconnected or damaged.
  6. Position the front axle housing and loosely install the 3 bolts, aligning the bolt location marks made during removal.
  7. Install the front axle housing RH mounting bolt.
    • Tighten to 89 Nm (66 lb-ft).

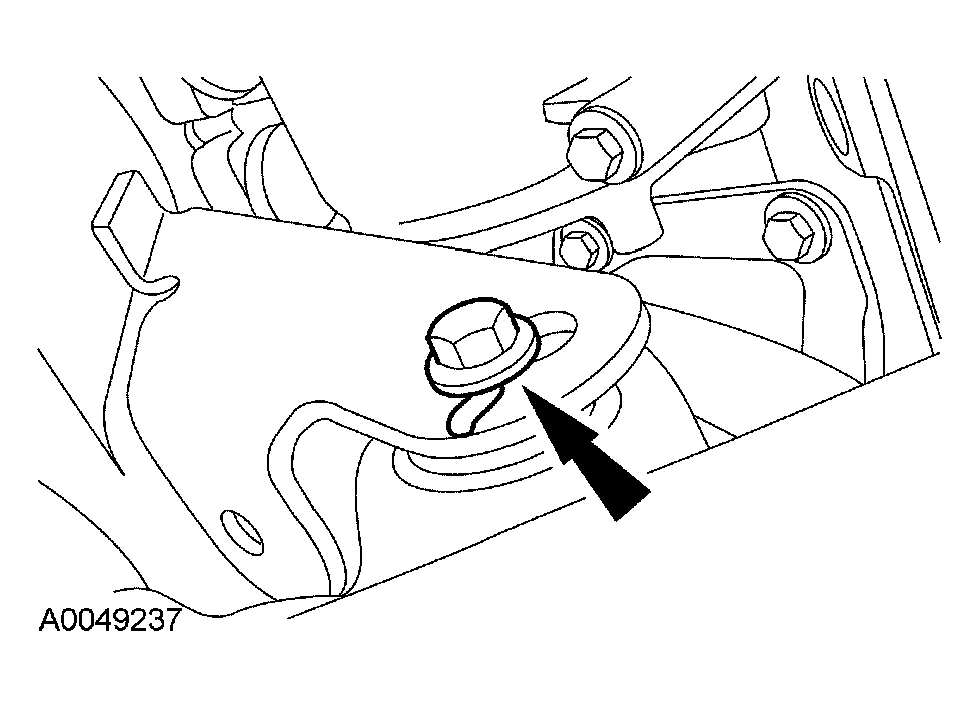

    Fig 5: Installing Front Axle Housing RH Mounting Bolt
    G03963193Courtesy of FORD MOTOR CO.
  8. Install the front axle housing LH front mounting bolt.
    • Tighten to 89 Nm (66 lb-ft).
    Fig 6: Installing Front Axle Housing LH Front Mounting Bolt
    G03963194Courtesy of FORD MOTOR CO.
  9. Install the front axle housing LH rear mounting bolt.
    • Tighten to 89 Nm (66 lb-ft).
    Fig 7: Installing Front Axle Housing LH Rear Mounting Bolt
    G03963195Courtesy of FORD MOTOR CO.

    10. All vehicles

  10. Position the frame crossmember and the 4 bolts.
    • Tighten to 102 Nm (75 lb-ft).

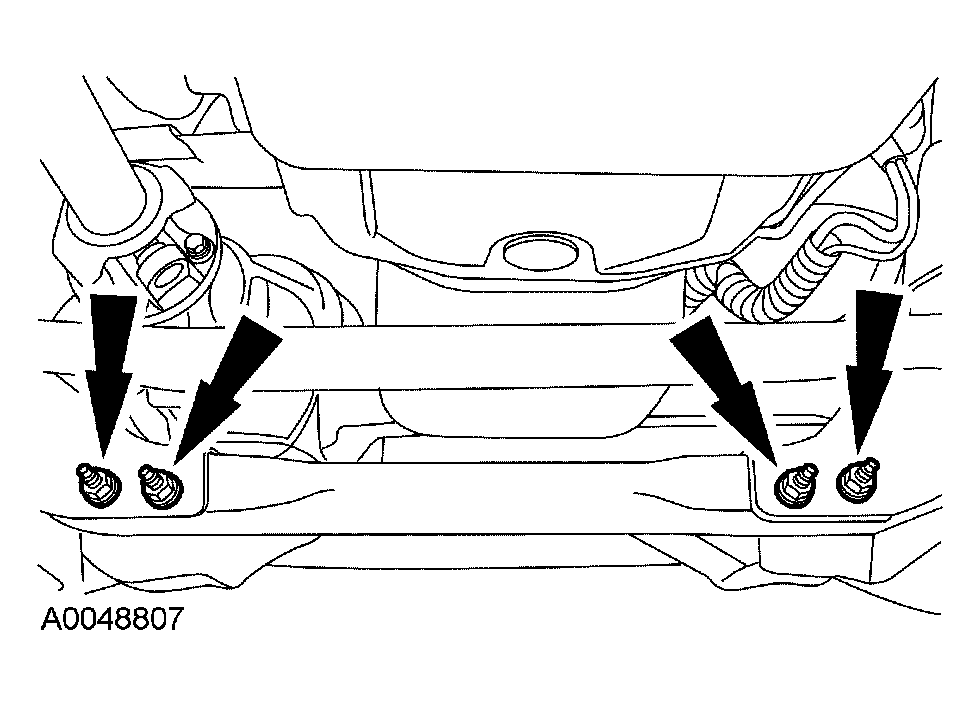

    Fig 8: Installing Frame Crossmember bolts
    G03933582Courtesy of FORD MOTOR CO.
  11. Attach the starter wiring harness support bracket.
    Fig 9: Attaching Starter Wiring Harness Support Bracket
    G03963182Courtesy of FORD MOTOR CO.
  12. Fill the crankcase with clean engine oil.
