Exhaust Manifold - RH: Notes

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
Motorcraft Metal Surface Prep ZC-31-A	-
Threadlock 262 TA-26	WSK-M2G351-A6

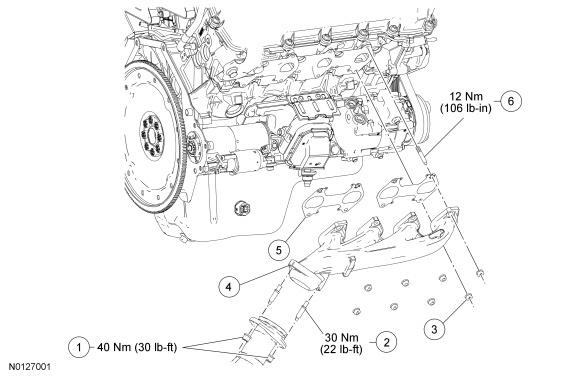

Fig 1: Exploded View Of Exhaust Manifold With Torque Specifications - RH

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N800419	RH exhaust Y-pipe flange nut (2 required)
2	W707753	RH exhaust Y-pipe flange stud (2 required)
3	W701706	RH exhaust manifold nut (8 required)
4	9430	RH exhaust manifold
5	9448	RH exhaust manifold gasket
6	707747	Exhaust manifold-to-cylinder head stud (8 required)

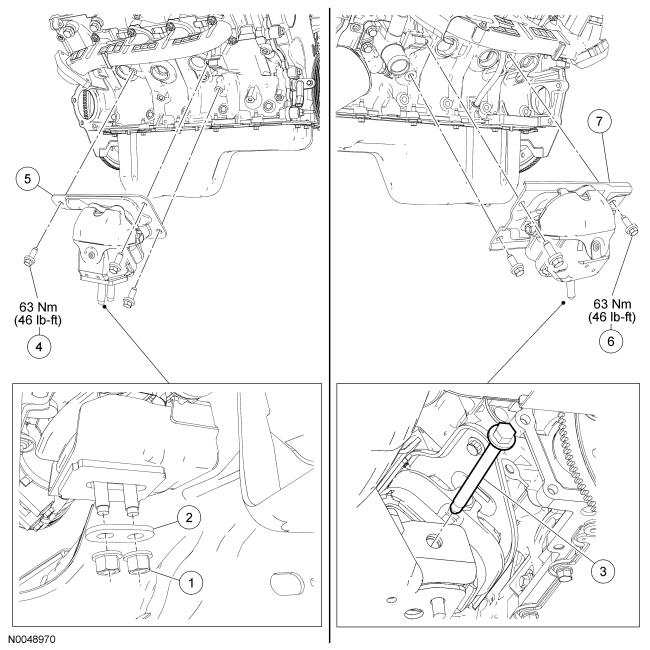

Fig 2: Engine Support Insulators & Fasteners With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W710384	RH engine support insulator nut (2 required)
2	6P018	RH engine insulator nut washer
3	W711403	LH engine support insulator bolt
4	W710222	RH engine support insulator bracket bolt (3 required)
5	6038	RH engine support insulator
6	W710222	LH engine support insulator bracket bolt (3 required)
7	6038	LH engine support insulator

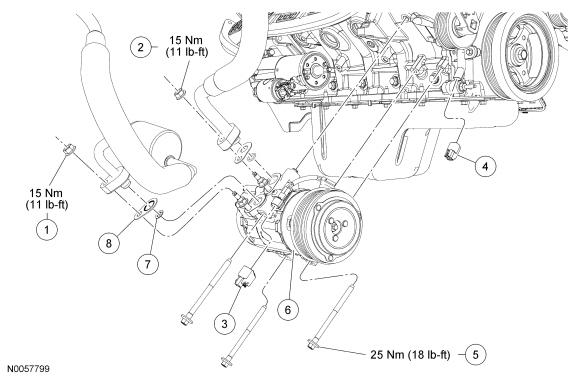

Fig 3: A/C Compressor Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W520413	A/C compressor discharge fitting nut
2	W520413	A/C compressor suction fitting nut
3	12A581	Clutch field coil electrical connector
4	12A581	Crankshaft position (CKP) sensor electrical connector
5	N806184	A/C compressor bolt (3 required)
6	19703	A/C compressor
7	19B596	O-ring seal (2 required)
8	19B596	Gasket seal (2 required)
