Exhaust Manifold - LH: Notes

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S) CHART

G03882124
 Socket, Exhaust Gas Oxygen Sensor 303-476 (T94P-9472-A)
MATERIAL ITEM SPECIFICATION

Item Specification
Motorcraft Metal Surface Prep ZC-31 -

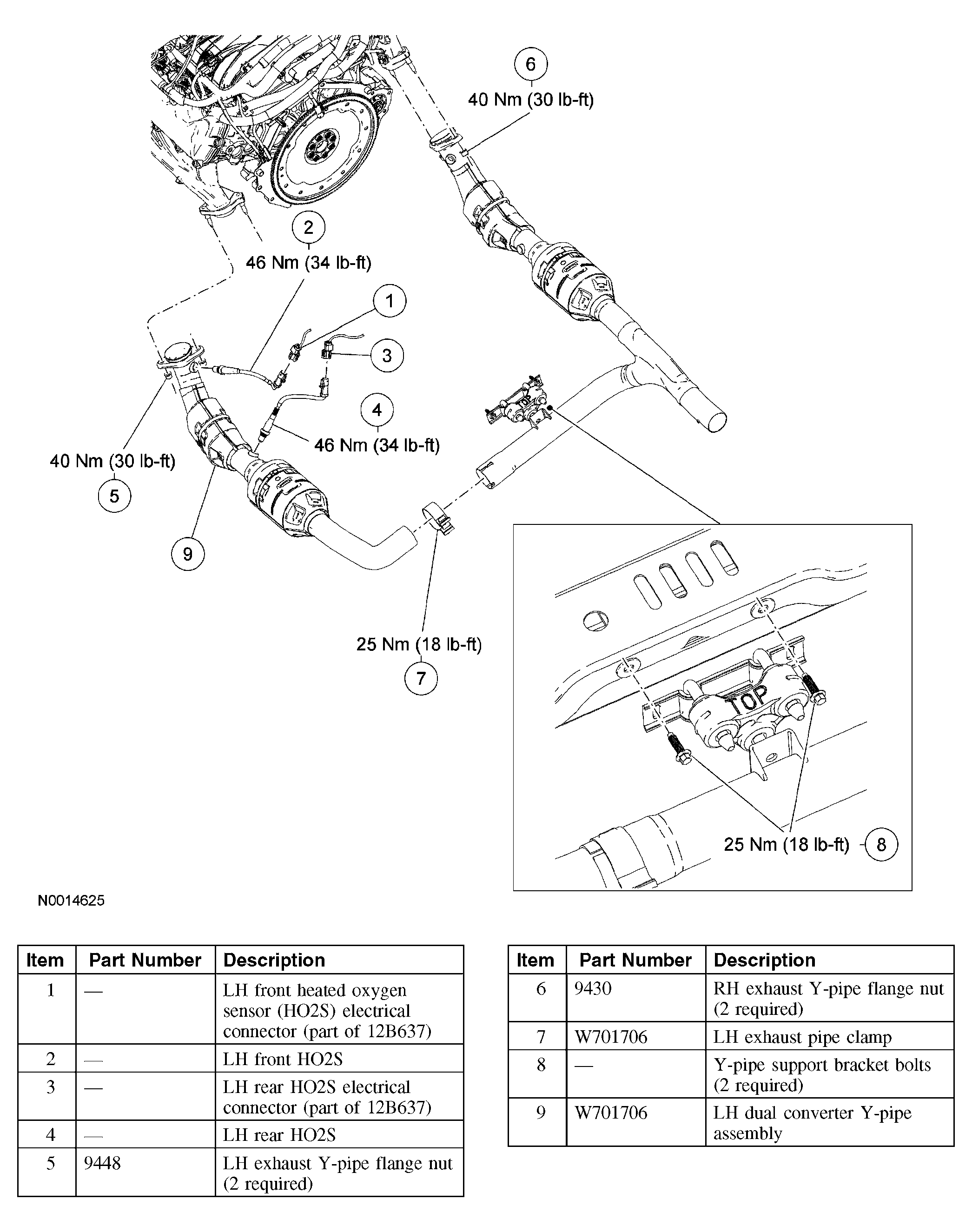

Fig 1: View Of Exhaust Manifold - LH (Items 1-9)
G03963172Courtesy of FORD MOTOR CO.

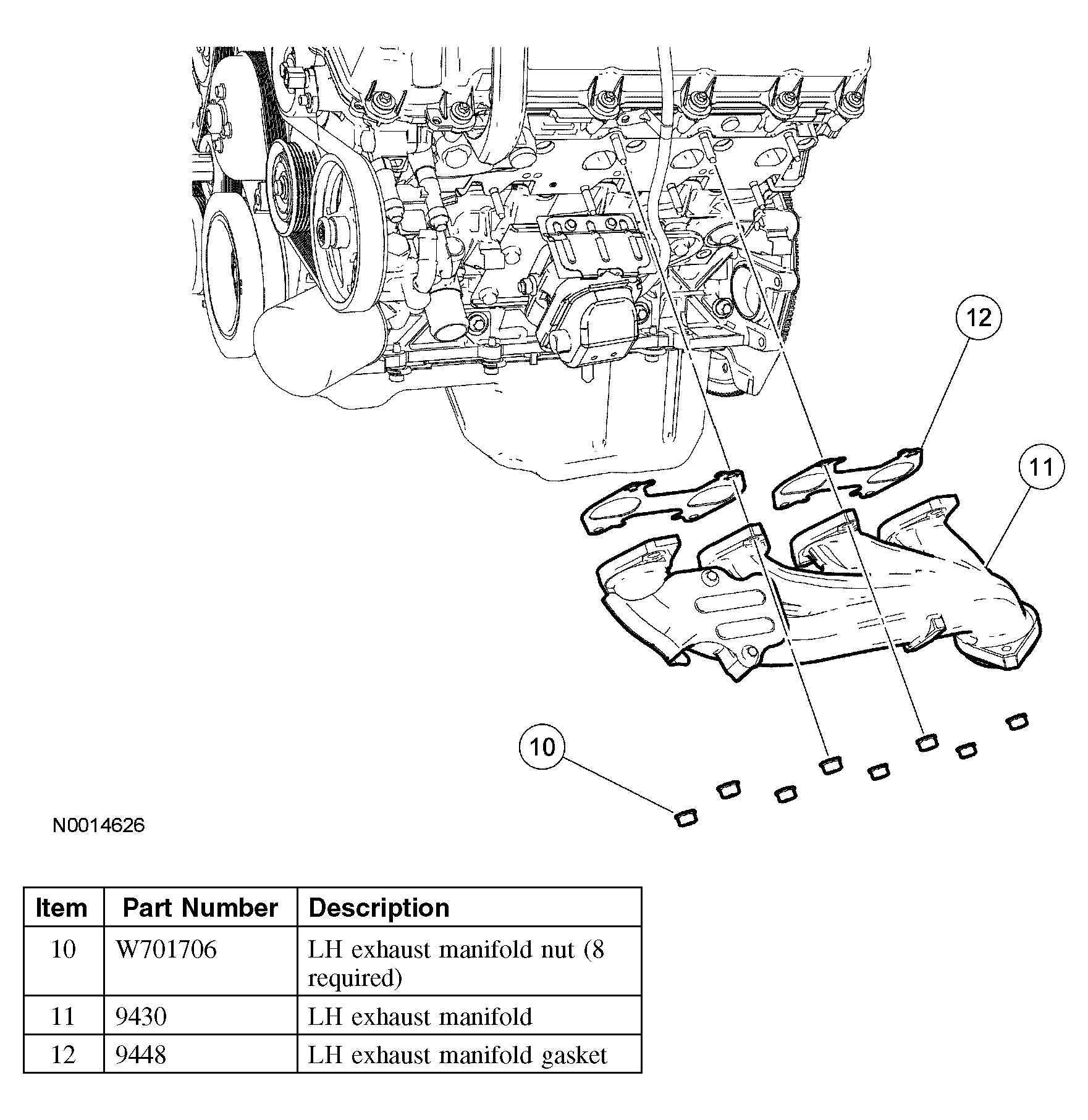

Fig 2: View Of Exhaust Manifold - LH (Items 10-12)
G03963173Courtesy of FORD MOTOR CO.
