Engine Support Insulators: Removal

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

    All vehicles

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  3. Remove the throttle body. For additional information, refer to FUEL CHARGING & CONTROLS - 5.4L (3V) .
  4. Remove the 3 bolts and position the power steering fluid reservoir aside.

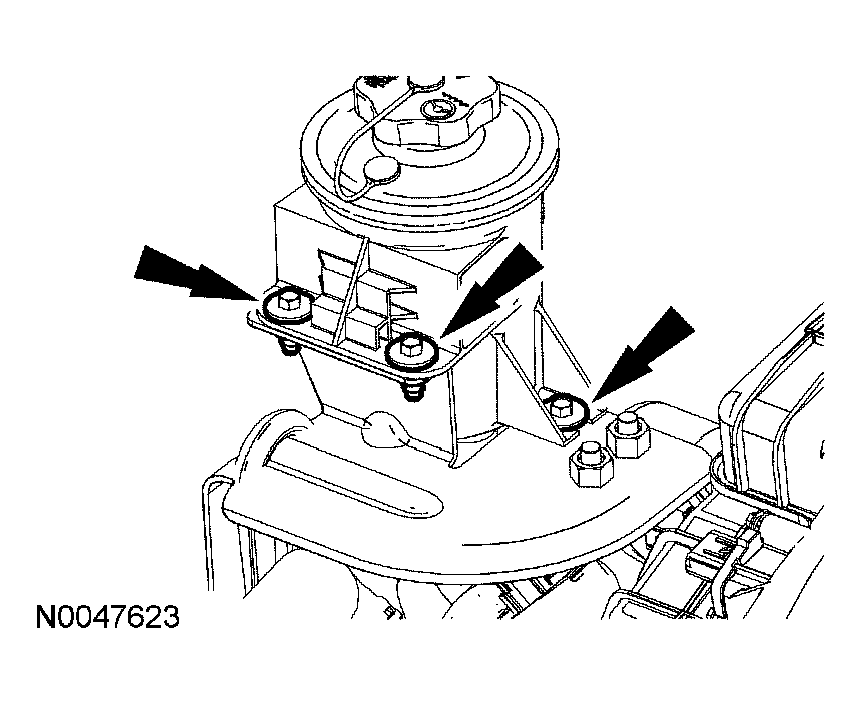

    Fig 1: Installing Power Steering Fluid Reservoir Bolts
    G03933612Courtesy of FORD MOTOR CO.
  5. Remove the generator. For additional information, refer to GENERATOR AND REGULATOR .
  6. Remove the upper radiator sight shield.
    Fig 2: Removing Upper Radiator Sight Shield
    G03963220Courtesy of FORD MOTOR CO.
  7. Remove the bolts and position the cooling fan shroud away from the radiator.
    Fig 3: Removing Cooling Fan Shroud Bolts
    G03920100Courtesy of FORD MOTOR CO.
  8. Install the special tool.
    Fig 4: Installing Special Tools
    G04647876Courtesy of FORD MOTOR CO.
  9. If equipped, remove the 4 bolts and the skid plate.

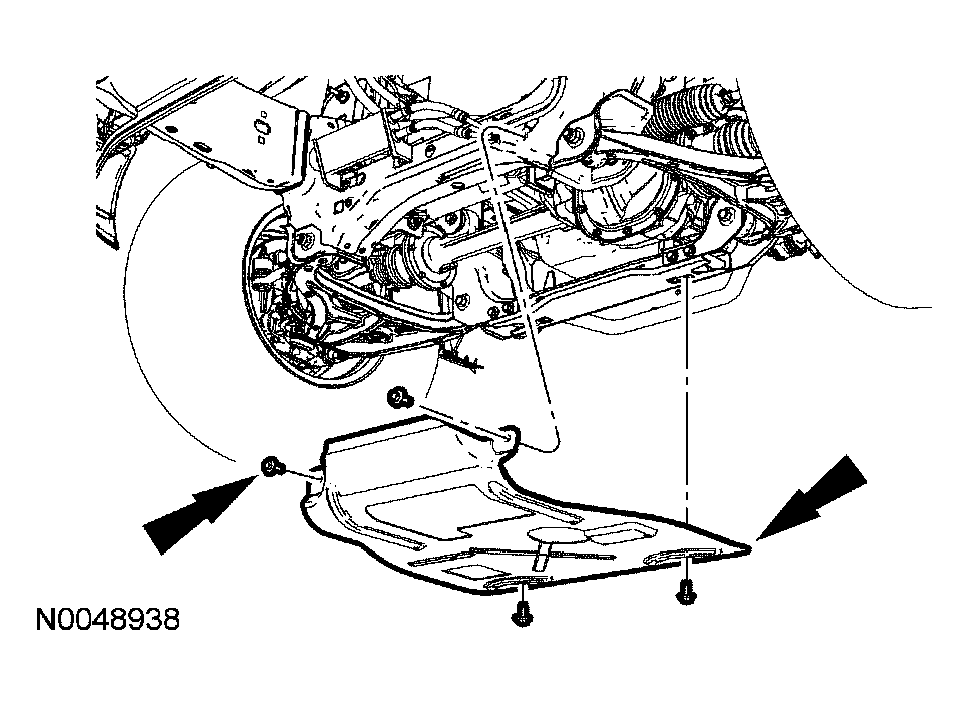

    Fig 5: Removing Bolts And Skid Plate
    G03963223Courtesy of FORD MOTOR CO.
  10. Remove the 4 exhaust manifold-to-catalytic converter nuts.
    Fig 6: Removing Exhaust Manifold-To-Catalytic Converter Nuts
    G03962562Courtesy of FORD MOTOR CO.
  11. Remove the exhaust system support bracket bolts from the crossmember.
    Fig 7: Removing Exhaust System Support Bracket Bolts From Crossmember
    G03929806Courtesy of FORD MOTOR CO.
  12. Loosen the transmission mount nuts.
    Fig 8: Loosening Transmission Mount Nuts
    G03962564Courtesy of FORD MOTOR CO.

    13. RH engine support insulator

  13. Remove the starter. For additional information, refer to STARTING SYSTEM .

    14. LH engine support insulator

  14. Remove the oil level indicator and tube. For additional information, refer to OIL LEVEL INDICATOR AND TUBE .
  15. If removing the LH engine support insulator in a 4WD vehicle, index mark the front driveshaft flange to the front axle pinion flange.

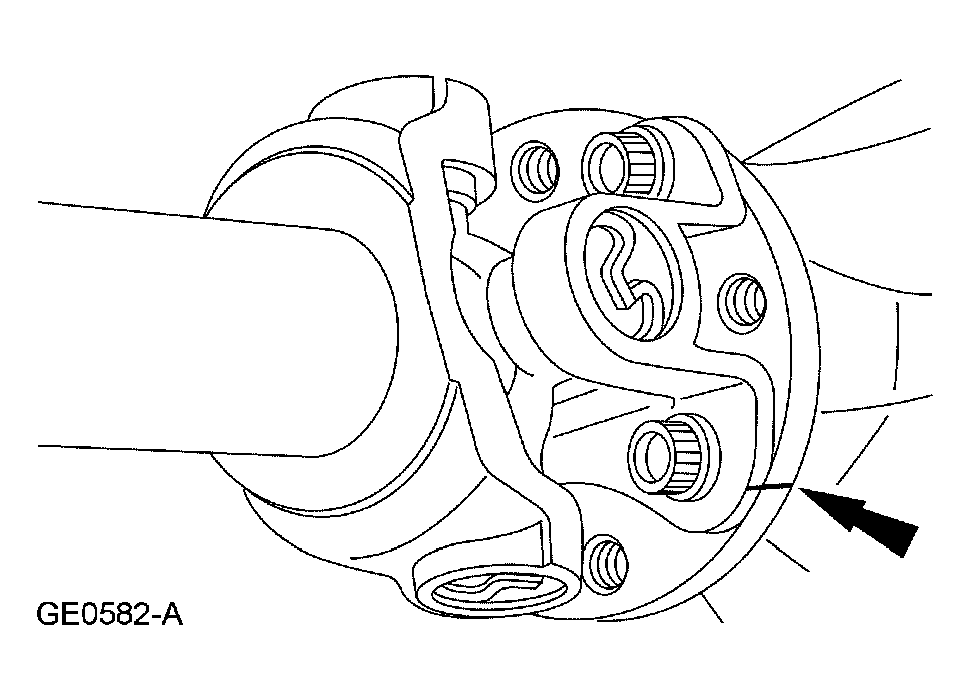

    Fig 9: Identifying Index-Marking Front Driveshaft Flange To Front Axle Pinion Flange
    G03928216Courtesy of FORD MOTOR CO.
    16. CAUTION: Do not let the driveshaft hang unsupported.
    Fig 10: Disconnecting Front Driveshaft
    G03962567Courtesy of FORD MOTOR CO.
  16. If removing the LH engine support insulator in a 4WD vehicle, disconnect and support the front driveshaft.
    • Remove the 4 bolts.
    • Support the front driveshaft.

    17. All vehicles

  17. Remove the RH engine support insulator nuts and washer.
    Fig 11: Removing RH Engine Support Insulator Nuts And Washer
    G03962568Courtesy of FORD MOTOR CO.
  18. Remove the LH engine support insulator bolt.
    Fig 12: Removing LH Engine Support Insulator Bolt
    G03963277Courtesy of FORD MOTOR CO.
  19. Using the special tools, raise the engine.
    Fig 13: Using Special Tools To Raise Engine
    G04647876Courtesy of FORD MOTOR CO.

    20. RH engine support insulator

  20. Remove the 3 RH engine support insulator bracket-to-cylinder block bolts.
  21. Remove the RH engine support insulator.

    22. LH engine support insulator

  22. Remove the 3 LH engine support insulator bracket-to-cylinder block bolts.
  23. Remove the LH engine support insulator.
